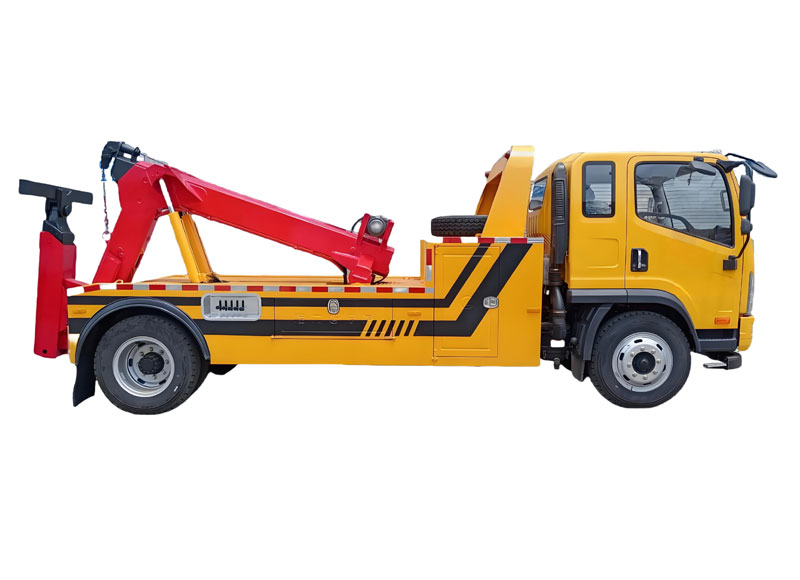

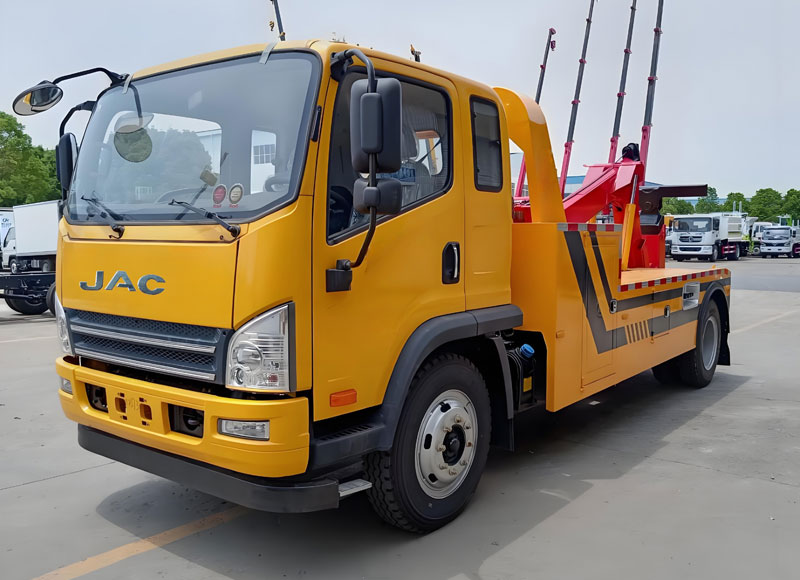

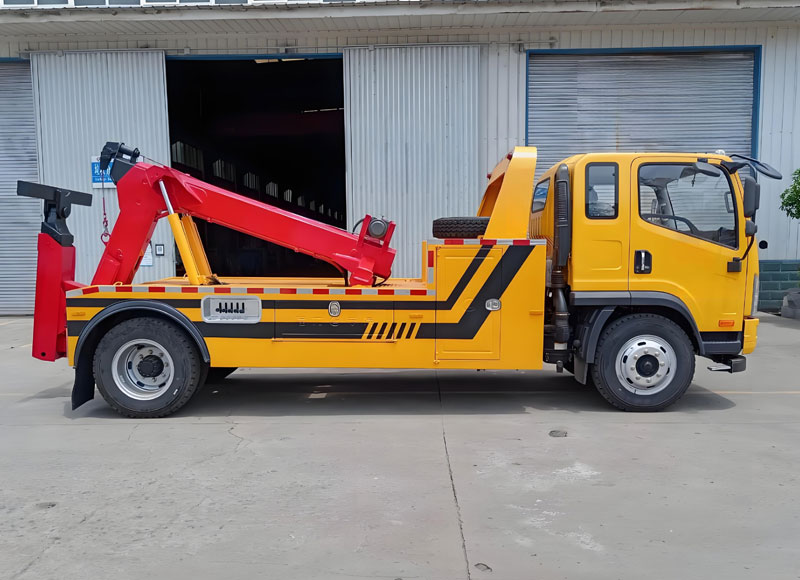

1. JAC chassis equipped with Weichai engine and 8-speed transmission for efficient and stable power output.
2. Chassis system : 8.5-ton rear axle, 8.25R20 16-ply tires, leaf spring 7/10+4 combination, paired with 800-section frame to ensure heavy-load operation stability.
3. Auxiliary configs : Standard 300L aluminum alloy fuel tank, 20L urea tank, electrically heated rearview mirrors, and dual air intake ports to optimize fuel efficiency and operational convenience.

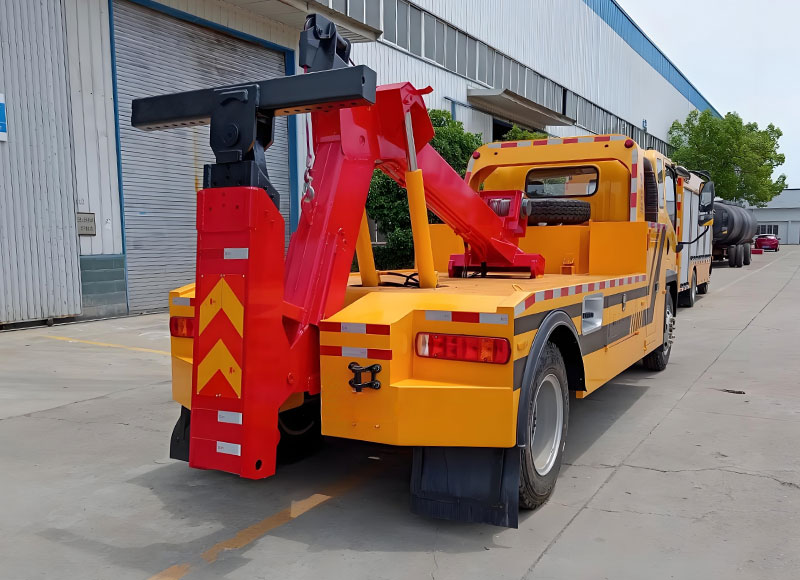

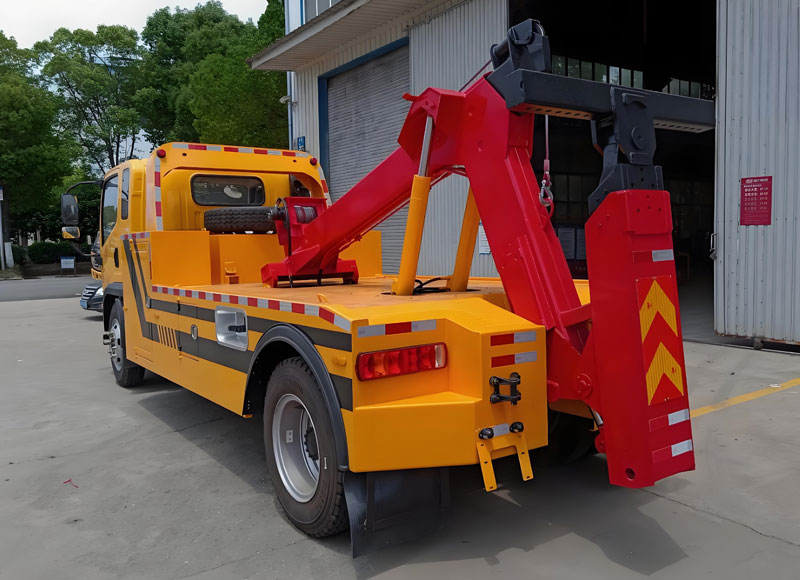

4. Towing system : 6-ton mounted unit with 8-ton three-section tow arm, two-section hexagonal boom with Hai Zhan Li cylinders for large-tonnage towing operations.
5. Rescue toolkit : Includes 6-ton winch + 25m steel wire rope, two pairs of tow forks, one pair of L-shaped tow forks, and rotating drum, adaptable to multi-scenario rescue needs.
Chassis | |
| Brand | JAC |
| Drive Type | 4x2,LHD/RHD |
| Gross Vehicle Weight(kg) | 14060 |
| Curb Weight(kg) | 7540 |
| Overall Dimension(mm) | 7440×2300×2540 |
| Tyre Qty. | 6 |
| Tyre Spec. | 8.25R20 16PR |
| Wheelbase（mm） | 4700 |
| Front/Rear Overhang (mm) | 1200/1540 |
| Approach/Departure angle(°) | 20/8 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 89 |
| ABS | Included |
| Transmission | 8-speed |
| Cab | 2-3 person,Tiger VH flat-top sleeper cab with dual berth design and removable headrests for driver/passenger seats. |
| Frame | 7/10+4 |
Engine (Other Engine Optional) | |
| Brand | Weichai |
| Model | WP4.1NQ190E61 |
| Power(kw) | 140 |
| Horsepower(HP) | 190 |
Upper & Equipment | |
| Max Load Capacity | 12 Ton |
| Fuel tank Capacity(L) | 300, aluminum alloy |
| Urea tank Capacity(L) | 20 |
| Auxiliary Configs | Electrically heated rearview mirrors, and dual air intake ports. |
| Towing System | 6-ton mounted unit with 8-ton three-section tow arm, two-section hexagonal boom with Hai Zhan Li cylinders. |
| Rescue Toolkit | Includes 6-ton winch + 25m steel wire rope, two pairs of tow forks, one pair of L-shaped tow forks, and rotating drum. |
| Hydraulic Control | Italian HYDAC multi-valve. |
| Remarks | Customized LOGO design as per customer needs! |
