1. The garbage bin adopts a corrugated structure and stainless steel material, equipped with an efficient fan, improving performance by 35%, reducing energy consumption by 28%, with strong suction and long service life.
2. The vehicle integrates watering, washing, sweeping, and cleaning functions, with a high-pressure water gun and multiple spray rod layout, ensuring high cleaning efficiency and fast operation speed.
3. It uses an intelligent electrical control system with a voice alarm function, providing real-time monitoring and fault alarms, ensuring normal operation and preventing operational errors.
4. The side spray rods have bi-directional obstacle avoidance protection, and the system automatically stops operation during reverse driving, equipped with voice alarms and rearview monitoring, reducing the risk of damage and enhancing safety.
5. The split design of the clean water/garbage bin optimizes space, supports wastewater discharge and rapid washing, and the spray rod layout efficiently collects wastewater without leaving residue.
| Chassis | |
| Brand | SITRAK |
| Drive Type | Left hand drive/4×2 |
| Gross Vehicle Weight(kg) | 18000 |
| Curb Weight(kg) | 11350 |
| Loading Weight(kg) | 6520 |
| Overall Dimension(mm) | 8650×2500,2550×3200,3250 |
| Tyre Qty. | 6 |
| Tyre Spec. | 10.00R20 18PR |
| Wheelbase（mm） | 5000 |
| Front/Rear Overhang (mm) | 1450/2200 |
| Approach/Departure angle(°) | 16/11 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 89 |
| ABS | Yes |
| Transmission | 8-Speed |
| Cab | 2-3 person |
| Main Engine(Other Engines Optional) | |
| Brand | Weichai |
| Model | WP4.6NQ220E61 |
| Power(kw) | 220 |
| Horsepower(HP) | 300 |
| Auxiliary Engine(Other Engines Optional) | |
| Brand | Cummins |
| Model | B170 |
| Power(kw) | 125 |
| Horsepower(HP) | 169 |
| Upper Equipment | |
| Garbage Tank | 7 m³ /CBM (Stainless Steel) |
| Clean Water Tank | 9 m³ /CBM (Carbon Steel for Corrosion Resistance; ) |
| Sweeping Width(mm) | 2800-3500 |
| Sweeping Operating Speed(km/h) | 3-20 |
| Maintenance Operating Speed(km/h) | 15-20 |
| Maximum Sweeping Capacity (M²/h) | 70000 |
| Suction Particle Size (mm) | ≥120 |
| Garbage Tank Tilt Angle | ≥45° |
| Sweeping Efficiency | ≥98% |
| Main Components of Dust Suppression System | Water filter, pipelines, stainless steel spray frame, high-pressure nozzles, etc. |
| High-Pressure Water Pump | Renowned brand |
| Dust Suppression System Control Mode | Electronic control, one-key operation |
| Cycloid Motor | Sanyo Machinery |
| Gear Oil Pump | Wanyue Machinery |
| Hydraulic Cylinder | Wessenborg Hydraulic Cylinder |
| Hydraulic Hoses | Guangzhou Tianhe |
| Electromagnetic Valve Set | Wessenborg (Sino-German Joint Venture) |
| Hydraulic System Overflow Pressure (Mpa) | 10-15 |
| Hydraulic Tank Capacity (L) | ≥70 |
| Electrical System | Composed of chassis circuit, auxiliary electrical parts, and special device operation control circuit |
| Electrical Control Panel Composition | Auxiliary engine tachometer, auxiliary engine water temperature gauge, oil temperature alarm device, various operation control switches |
| Fan Brand | High-end customized Jiermei large-power maintenance-free centrifugal fan (optional: Fujian Longma - Longfeng maintenance-free centrifugal fan) |
| Fan Rated Speed (r/min) | 2700 |
| Fan Belt | Zhejiang Sanlux |
| Automatic Clutch | Renowned brand clutch, service life up to 20,000 working hours |
| Air Volume (M³/h) | 5000-7800 |
| Sweeping Brush Opening Diameter (mm) | Φ800-900 |
| Sweeping Plate Motor Speed (r/min) | 140 |
| Number of Sweeping Plates | 2 |
| Number of Brushes per Sweeping Plate | 22 |
| Front Sweeping Plate Tilt Adjustment | Forward tilt 5°-15°, backward tilt 5°-10° |
| Rear Sweeping Plate Tilt Adjustment | Forward tilt 5°-10°, backward tilt 5°-10° |
| Suction Pipe Diameter (mm) | Φ200 |
| Ground Clearance of Suction Nozzle Steel Part in Working State (mm) | 5-8 |
| Transmission Mode | Auxiliary engine - Automatic clutch - Fan - High-pressure water pump |
| Sweeping System Composition | Universal front flushing nozzle, aluminum alloy water diverter valve, rear spray nozzle, sweeping disc bracket, sweeping disc, link rod, adjustment rod, hydraulic motor, etc. |
| Auxiliary Operation System | Rear electronic control system to control lifting of main box and opening/closing of rear door |
| Electrical System | Composed of chassis electrical circuits, auxiliary engine electrical parts, and special working device operation control circuits |
| Electrical Control Panel Composition | Auxiliary engine tachometer, auxiliary engine water temperature gauge, engine oil temperature alarm device, various operation control switches |
| Other Services | Customized LOGO design as per customer needs! |

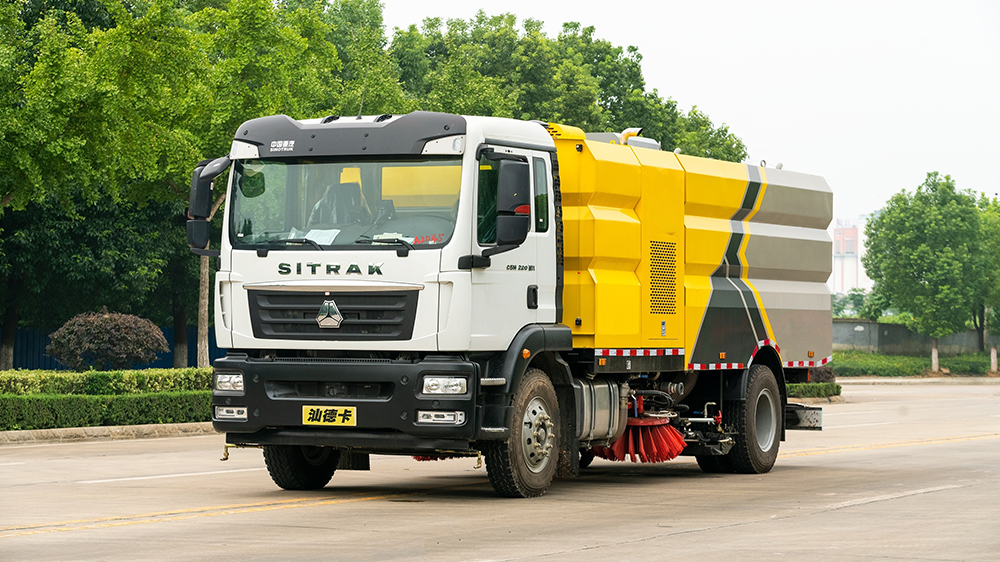

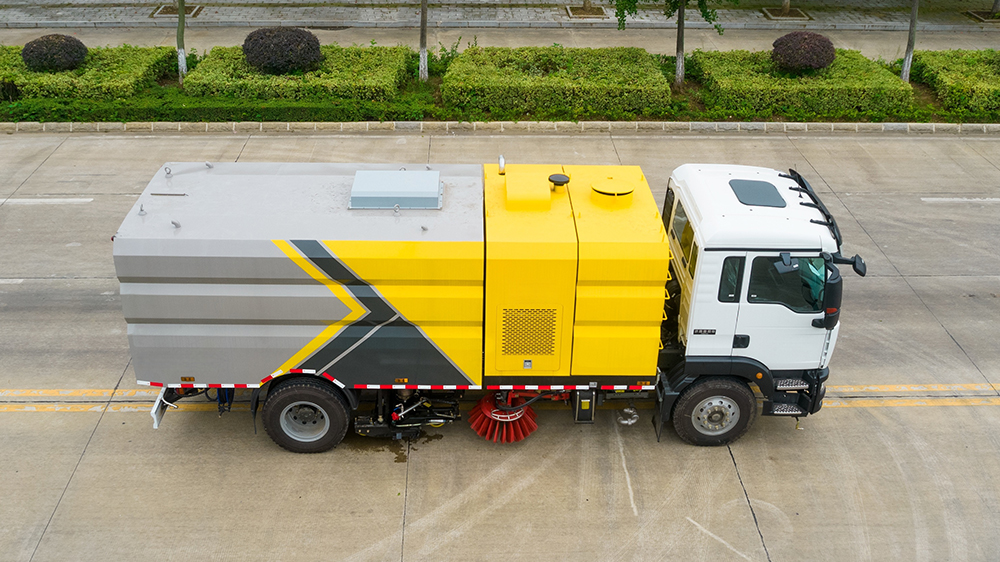

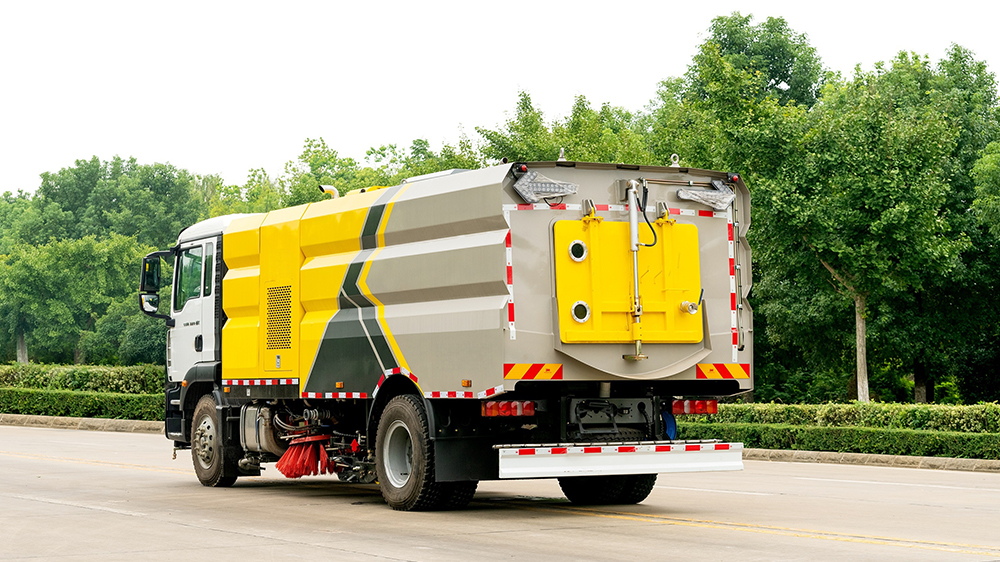

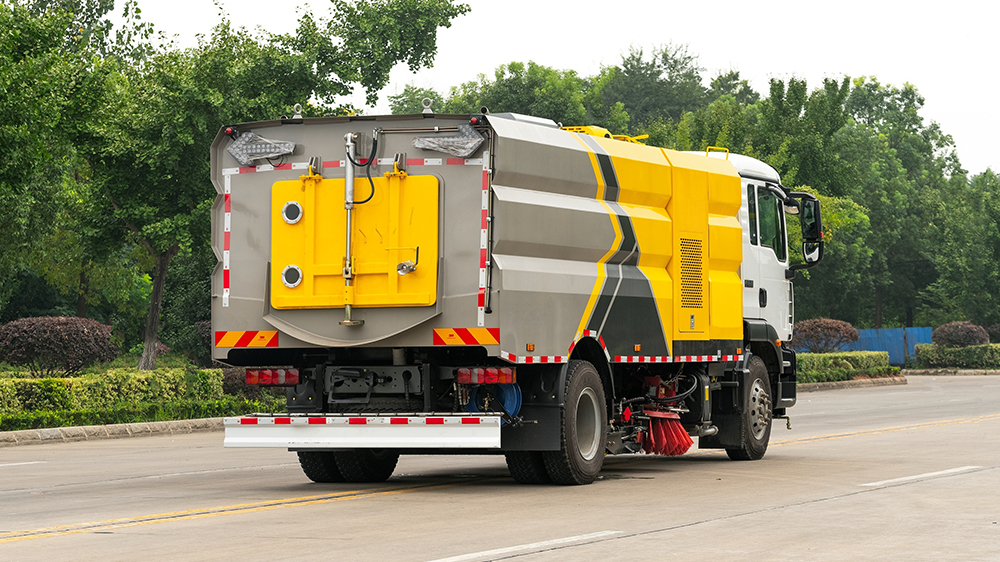

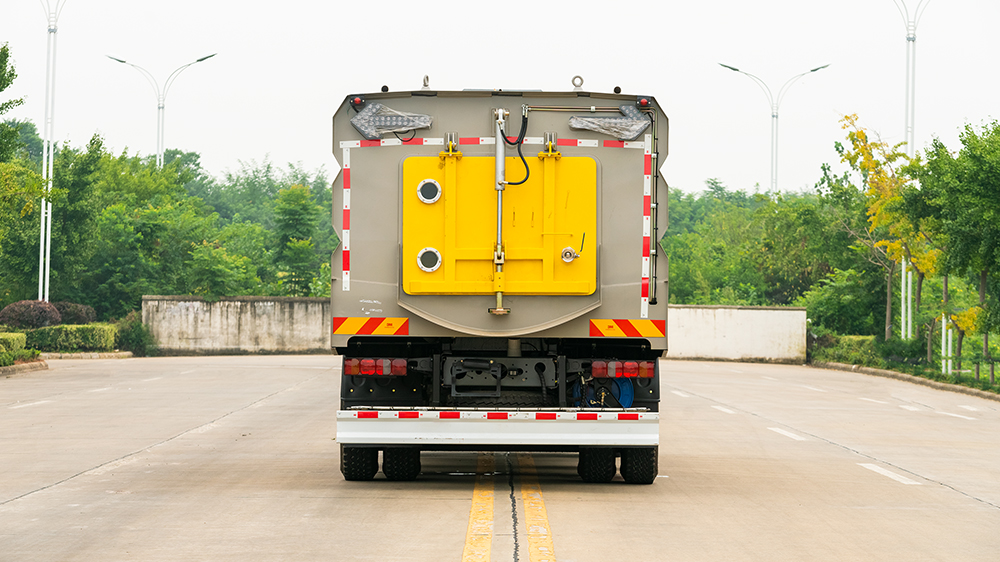

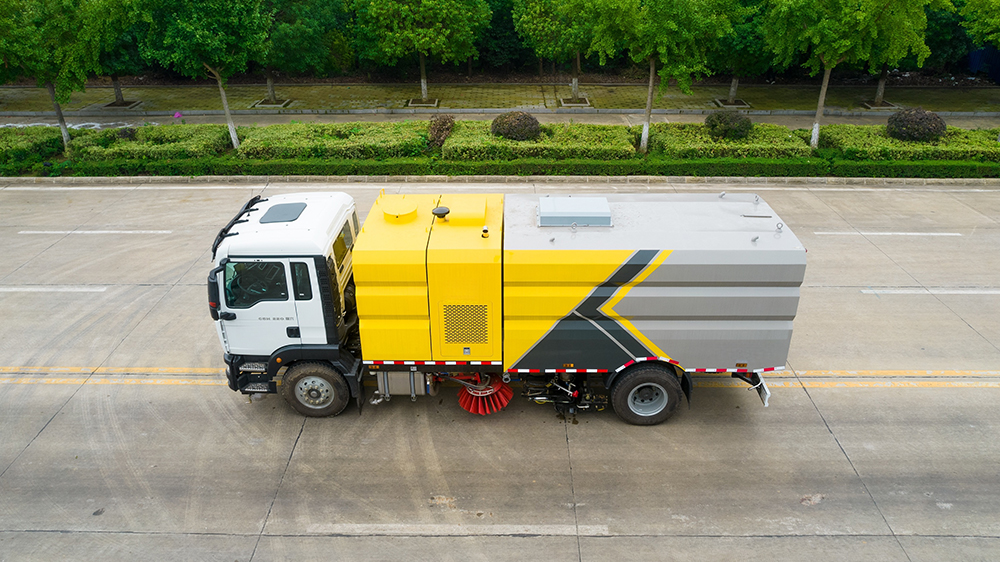

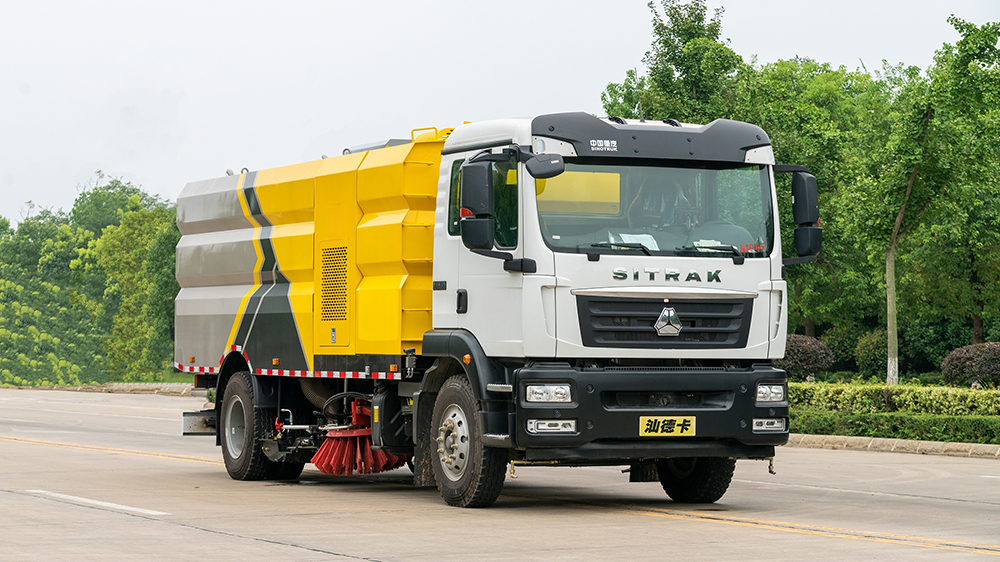

A SITRAK cleaning sweeper truck is used for urban road cleaning, dust removal, and sanitation maintenance by combining sweeping and vacuum suction functions.
It is suitable for cleaning city roads, industrial zones, and public areas where dust, sand, and light debris need to be regularly removed.
The cleaning system uses rotating brushes to loosen debris, while a vacuum system collects waste into a storage tank for centralized disposal.
When selecting a street cleaner truck for sale, factors such as cleaning efficiency, suction capacity, water spraying system, and operational environment should be considered to match different sanitation needs.
