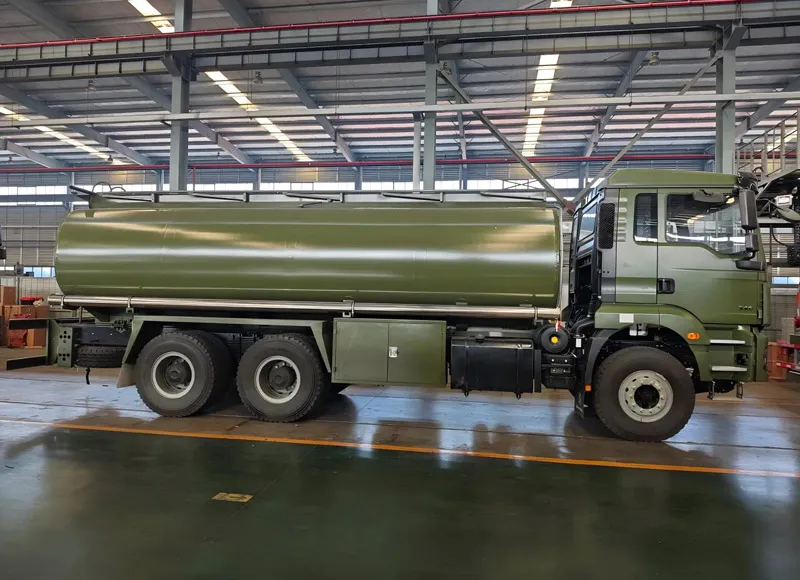

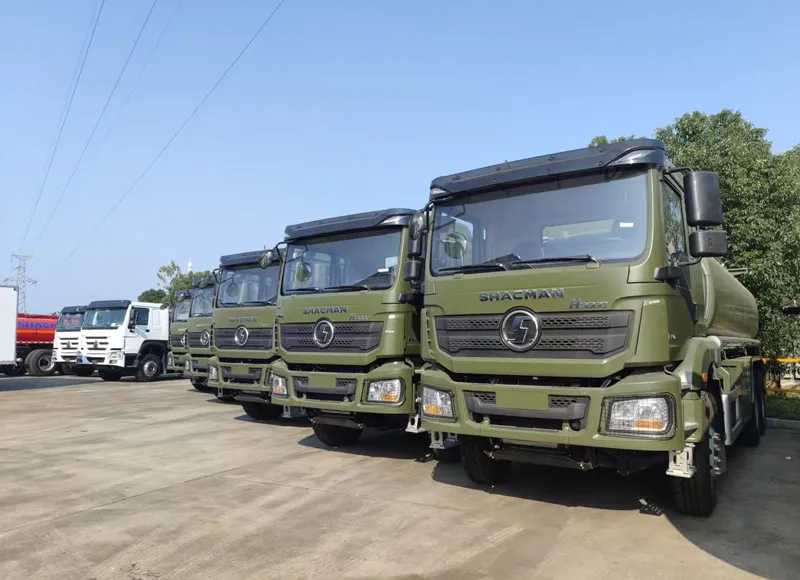

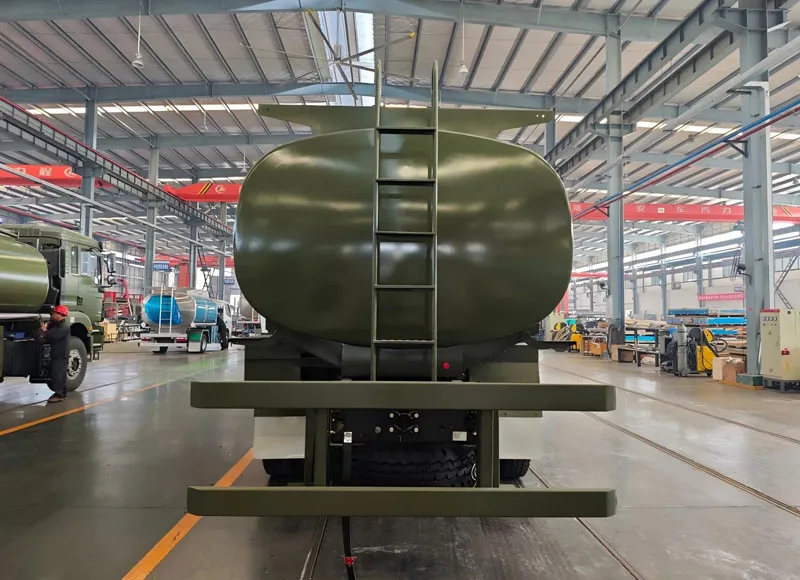

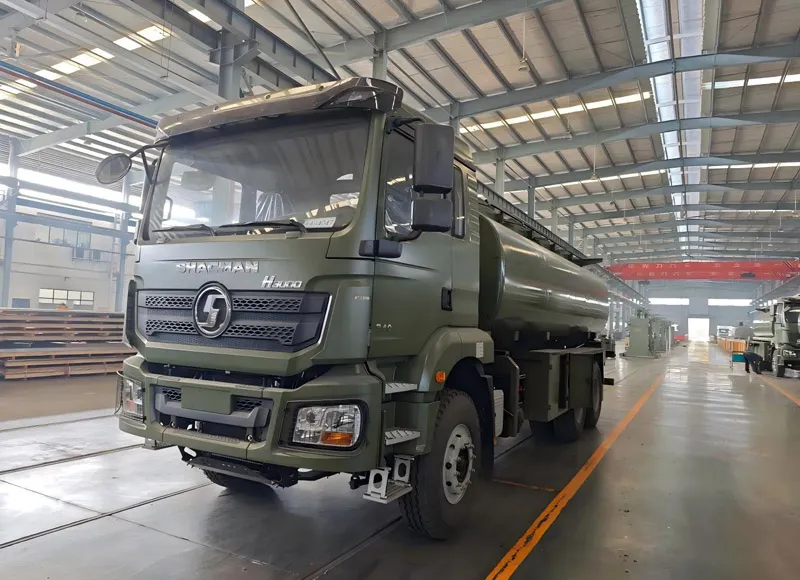

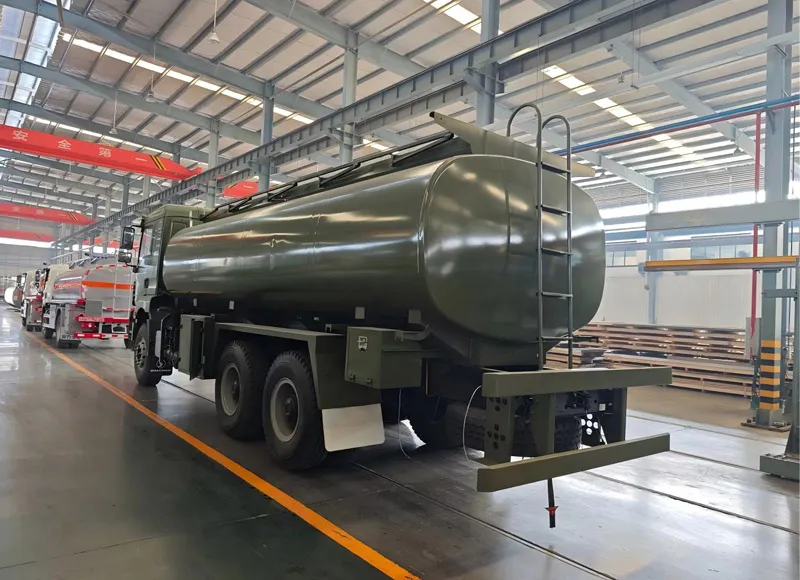

The SHACMAN 20000L 4-compartment fuel tanker truck is a 6×4 fuel-transport vehicle built on the SHACMAN H3000 chassis. Its 20 m³ / 20,000 L tank body is divided into four compartments for gasoline, diesel or other compatible loading media according to project requirements. The truck uses a 340 HP diesel engine and a 10-forward / 2-reverse transmission, with bottom-loading / gravity-discharge and vapor-recovery configurations available according to the technical specification.
| Chassis | |
| Brand | SHACMAN H3000 |
| Drive Type | Left hand drive / 6x4 |
| GVW(kg) | 25000 |
| Curb Weight(kg) | 11000 |
| Loading Weight(kg) | 13970 |
| Overall Dimension(mm) | 9275x2500x3800 |
| Wheelbase(mm) | 4375+1400 |
| Axle Load(kg) | 7500/13000 |
| Front/Rear Overhang(mm) | 1525/2700 |
| Approach/Departure Angle | `16/9 |
| Top Speed(km/h) | 80 |
| Cab | Single,LHD,with A/C |
| Engine(Other Engines Optional) | |
| Brand & Model | WP10.340E32 |
| Transmission | 10JSD180T+QH50; 10Forward/2Reverse Gear |
| Displacement/Output(ml/kw) | 9726/250 |
| Fuel Type | Diesel |
| Horsepower(HP) | 340 |
| Rate Speed(rpm) | 2200 |
| Maximum Torque(N·m) | 1250 |
| Maximum Torque Speed(rpm) | 1400-1600 |
| Emission Standard | Euro 3 |
| Upper Equipment | |
| Body Type | Fuel tank |
| Tank Capacity(mm) | 20m³/20000L |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium |
| thickness(mm) | Head is 5mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
| Compartments | 4 |

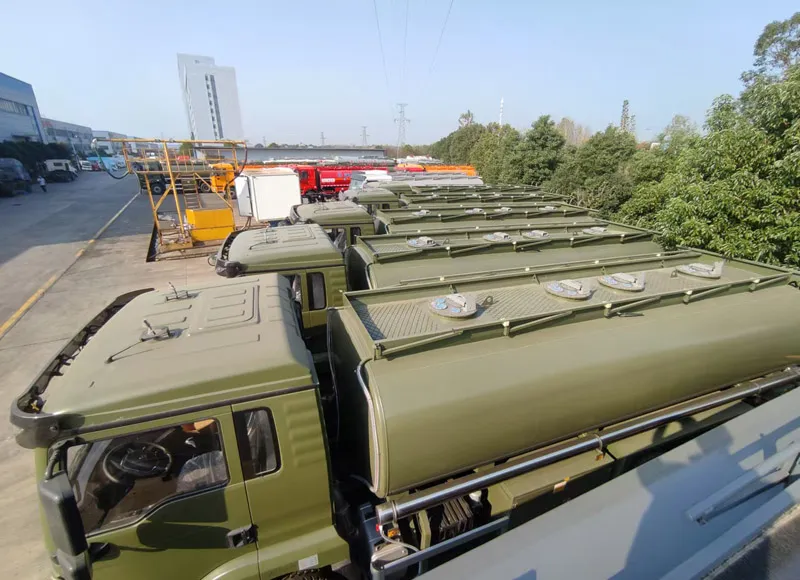

| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. |

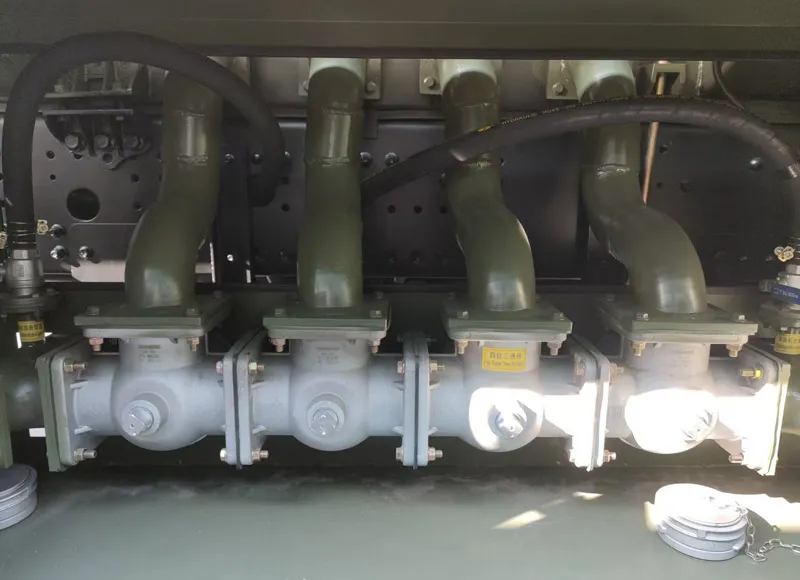

| Discharge System | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. |
Vehision supplies this 20,000 L fuel tank truck on a SHACMAN H3000 6×4 chassis with a 340 HP diesel engine and four-compartment tank body. GVW is 25,000 kg, curb weight is 11,000 kg and loading weight is 13,970 kg. Tank head, shell and separator plates are 5 mm, while the breakwater plate is 4 mm. Compartment split, tank material, pump, meter, hose reel, bottom loading and vapor-recovery components can be configured according to the project's fuel distribution requirements.
