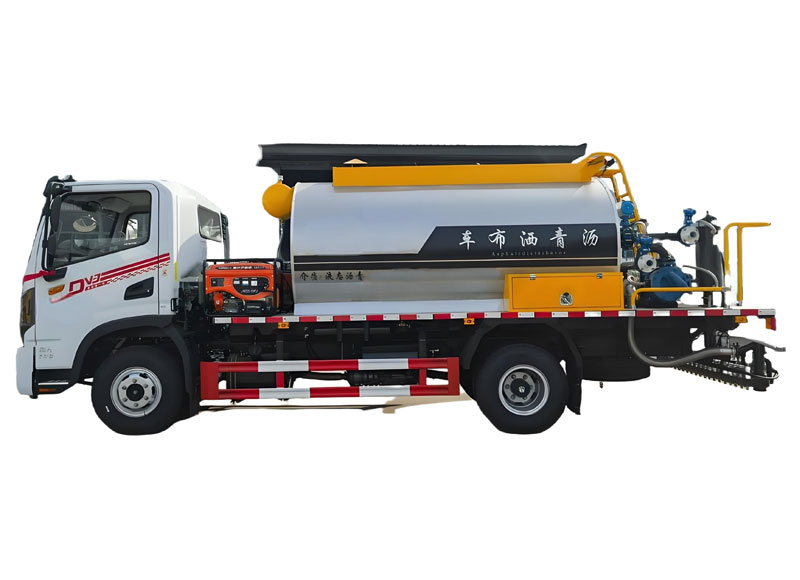

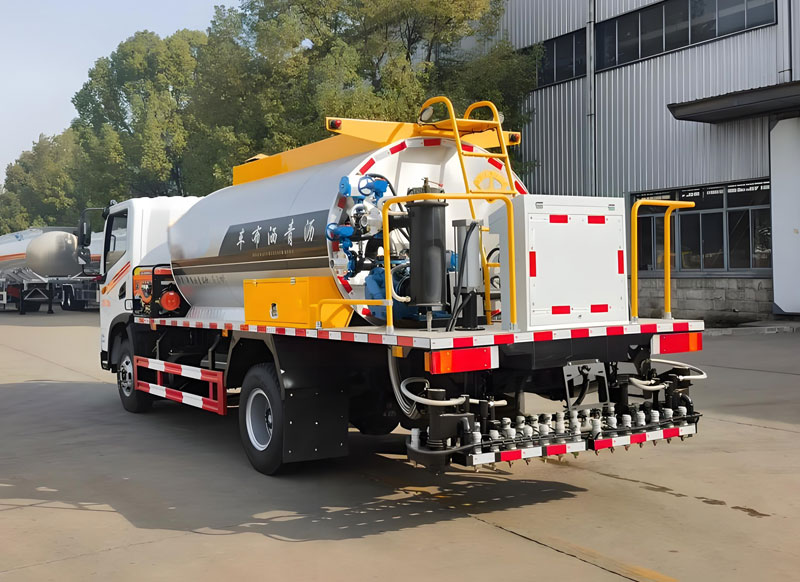

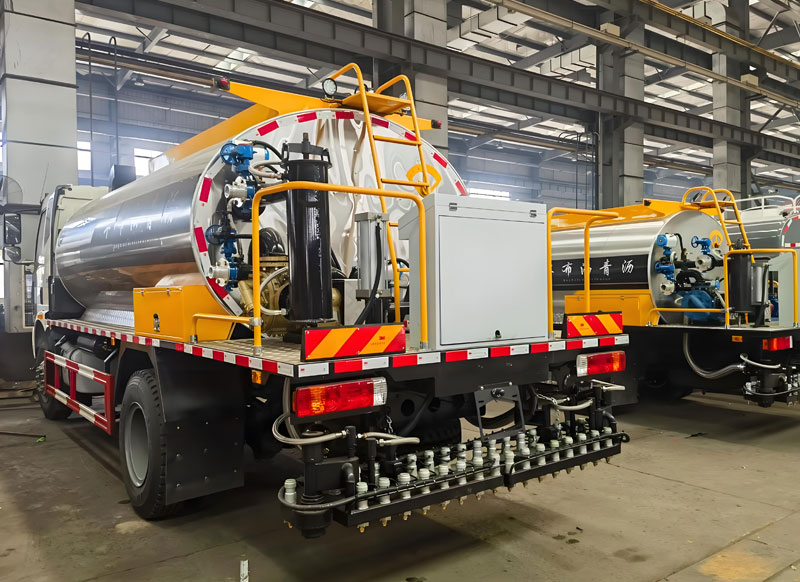

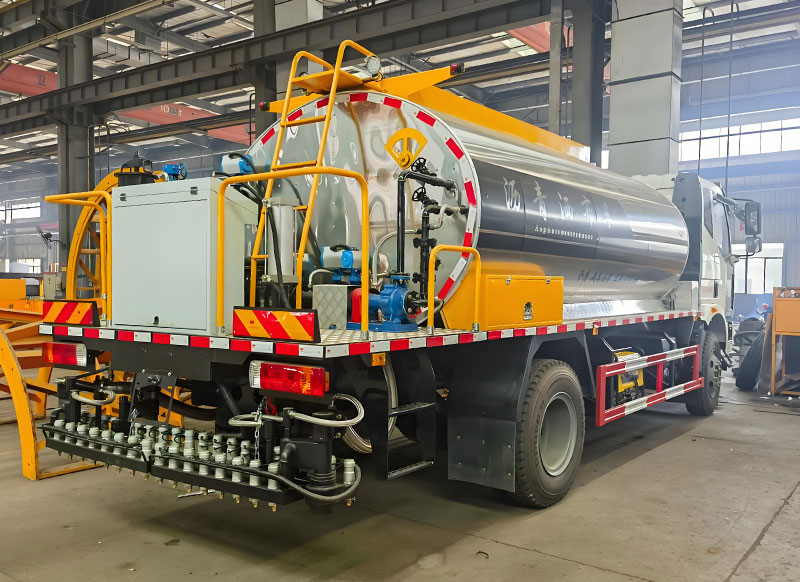

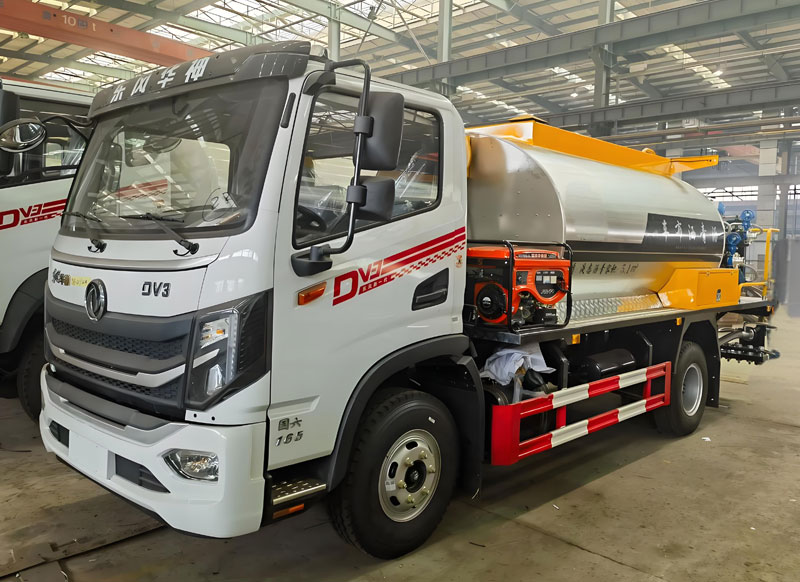

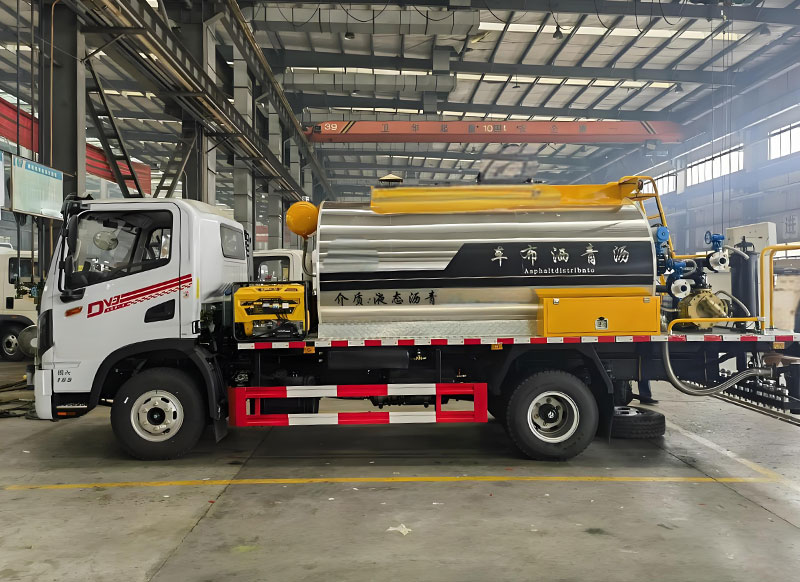

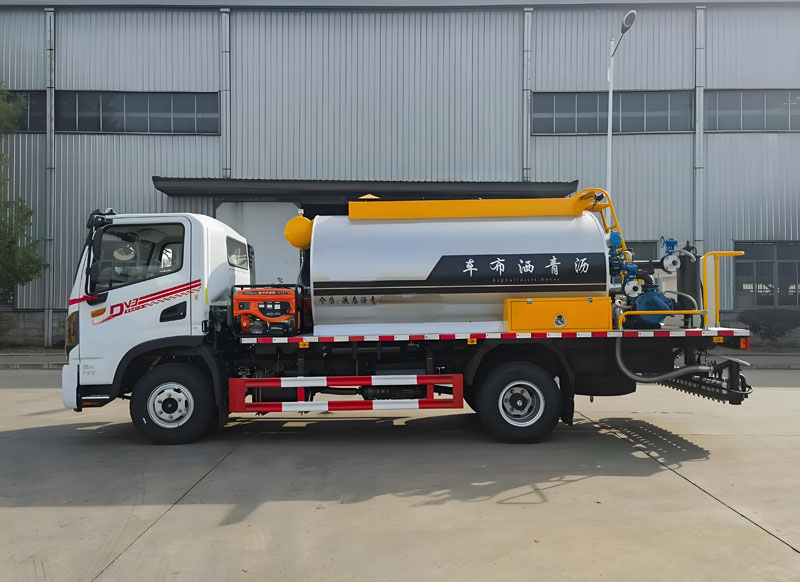

1. Adopt Dongfeng Dolica D7 cab chassis, equipped with Yuchai YCY30165-60 engine and WLY 6-speed transmission.
2. Integrate ZP230 insulated asphalt pump, GM05 motor drive, F563 hydraulic system, and electric proportional valve to achieve precise and highly reliable asphalt spraying, adapted to complex working conditions and construction accuracy requirements.
3. Combine G10 Riello thermal oil full-range heating system and Siemens temperature control module for 1-4.5m three-layer overlapping spraying and precise spraying volume control (0.3-5kg/m²).
4. Equip Siemens PLC for intelligent linkage between spraying volume and vehicle speed, with centralized operation via touchscreen.
Chassis | |
| Brand | Dongfeng |
| Drive Type | Left hand drive/4x2 |
| Gross Vehicle Weight(kg) | 11995 |
| Curb Weight(kg) | 6655 |
| Loading Weight(kg) | 5145 |
| Overall Dimension(mm) | 7250×2250×2750 |
| Tyre Qty. | 6 |
| Tyre Spec. | 45/70R19.5 |
| Wheelbase（mm） | 3800 |
| Front/Rear Overhang (mm) | 1130/2320 |
| Approach/Departure angle(°) | 21/9 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 103 |
| ABS | Yes |
| Transmission | 6-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | Yuchai |
| Model | YCY30165-60 |
| Power(kw) | 121 |
| Horsepower(HP) | 165 |
Upper Equipment | |
| Tank Capacity(cbm) | 6 |
| Tank Dimension(mm) | 3500×1950×1380mm |
| Asphalt Pump | ZP230 Thermal Insulation High Viscosity Asphalt Pump |
| Asphalt Pump Drive Motor | GM05 Series High Torque Plunger Motor |
| Hydraulic Pump | F563 Aluminum Alloy Gear Pump. |
| Hydraulic System | Imported Electro-Proportional Flow Control Valve. |
| Burner | G10 Riello (Italy) Burner |
| Heating Method | Full-process thermal oil heating for tank and pipelines, with selective heating function; |
| Temperature Control | Siemens (Germany) Temperature Control Module with Computerized Temperature Regulation. |
| Spraying Width | 1~4.5 m, Precision Triple Overlapping Spraying; Spraying Width Precisely Controlled by Computer. |
| Spraying Volume | 0.3～5 Kg/㎡, Fully Electronically Controlled Nozzles. |
| Spraying Volume Control | Siemens (Germany) PLC for Intelligent Control, Precise Linkage Between Spraying Volume and Vehicle Speed, Front Touchscreen Control System. |
| Other Services | Customized LOGO design as per customer needs! |
