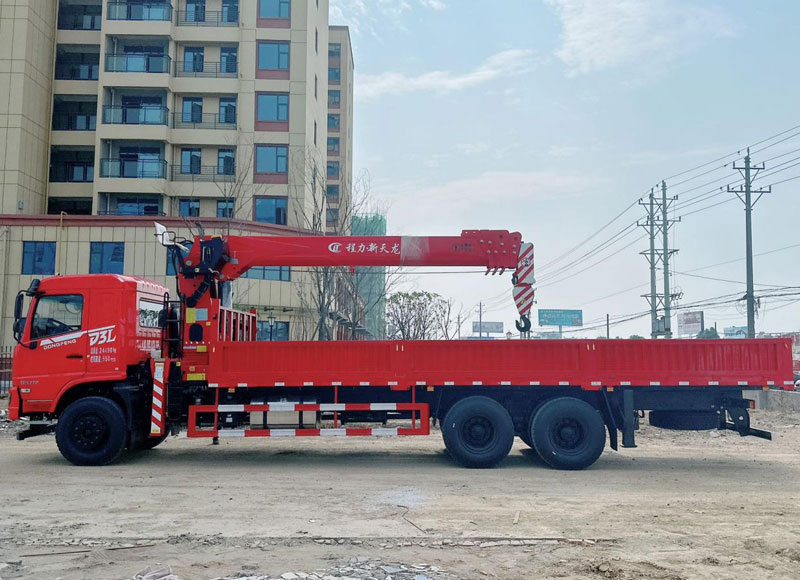

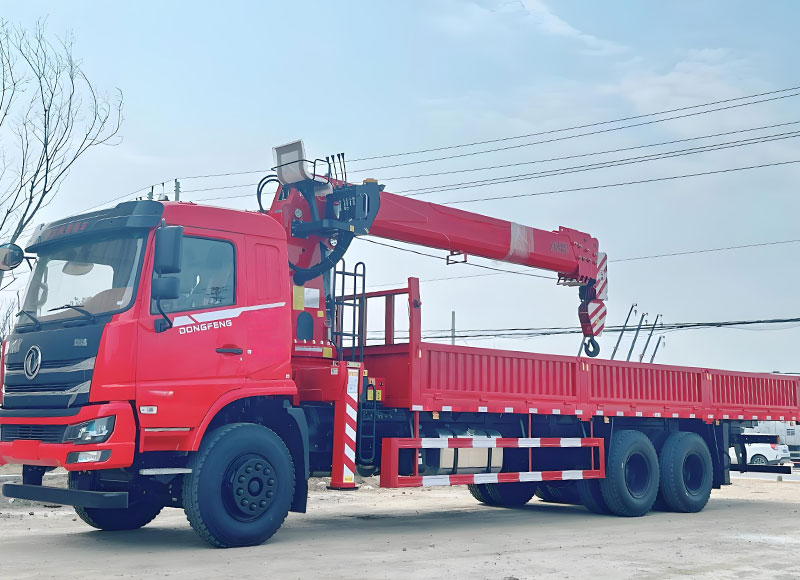

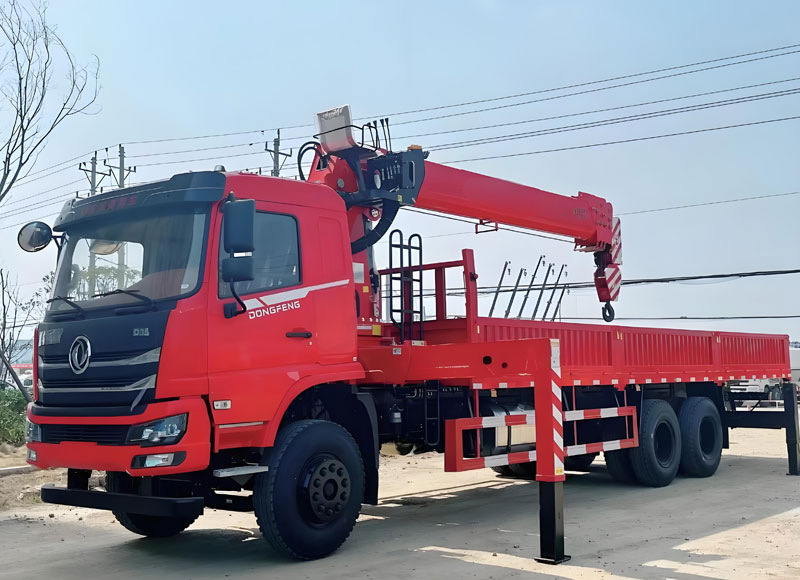

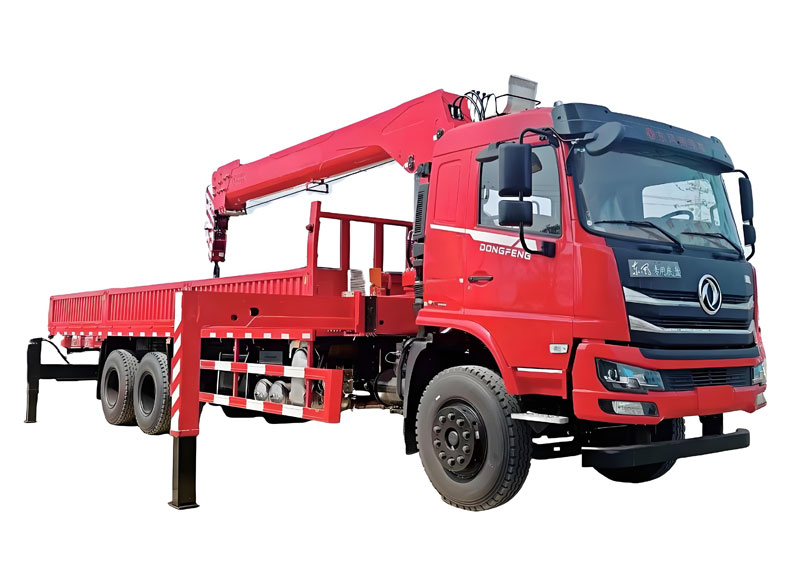

1. The chassis adopts Dongfeng model, equipped with a Yuchai YC6A270-50 engine delivering 270 HP, paired with a Fast Gear 9-speed manual transmission, offering a maximum torque of 1,050 N·m. This high-efficiency powertrain is optimized for heavy-duty transportation, ensuring stable performance even under complex operating conditions.
2. Features a dual-pump system with an integrated radiator supporting on-board start-stop operations, along with original single-chamber hydraulic rear stabilizers to enhance operational stability.
3. Maximum lifting height of 19.4 meters with a working radius of 17.5 meters, catering to medium-to-long-distance hoisting requirements.
Chassis | |
| Brand | Dongfeng |
| Drive Type | 6x4,LHD/RHD |
| Gross Vehicle Weight(kg) | 24490 |
| Curb Weight(kg) | 15600 |
| Load Weight(kg) | 8760 |
| Overall Dimension(mm) | 11990×2550×3880 |
| Tyre Qty. | 10 |
| Tyre Spec. | 11.00R20 18PR |
| Wheelbase（mm） | 5900+1350 |
| Front/Rear Overhang (mm) | 1440/3300 |
| Approach/Departure Angle(°) | 23/14 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 89 |
| ABS | Included |
| Transmission | Fast 9-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 2-3 persons |
Engine(Other Engine Optional) | |
| Brand | Yuchai |
| Model | YCS06270-60 |
| Power(kw) | 199 |
| Horsepower(HP) | 270 |
Upper & Equipment | |
| Cargo Box Dimension(mm) | 8500×2450×550 |
| Cargo Box Material | Carbon steel |
| Rated Lifting Capacity (kg) | 12000 |
| Rated Lifting Moment (t.m) | 25 |
| Fully Extended Boom Length (m) | 17.5 |
| Maximum Lifting Height (m) | 19.4 |
| Number of Boom Sections | 5 |
| Maximum Elevation Angle (°) | 75 |
| Slewing Angle (°) | 360 |
| Outrigger Span (mm) | 6000 |
| System Flow Rate (L/min) | 64 |
| Crane Self-weight (kg) | 4000 |
| Rated System Pressure (MPa) | 30 |
| Standard Accessories | Tail lights, signal lights, reversing lights, nameplate light, and side marker lights,reflective tapes. |
| Remarks | Customized LOGO design as per customer needs! |
