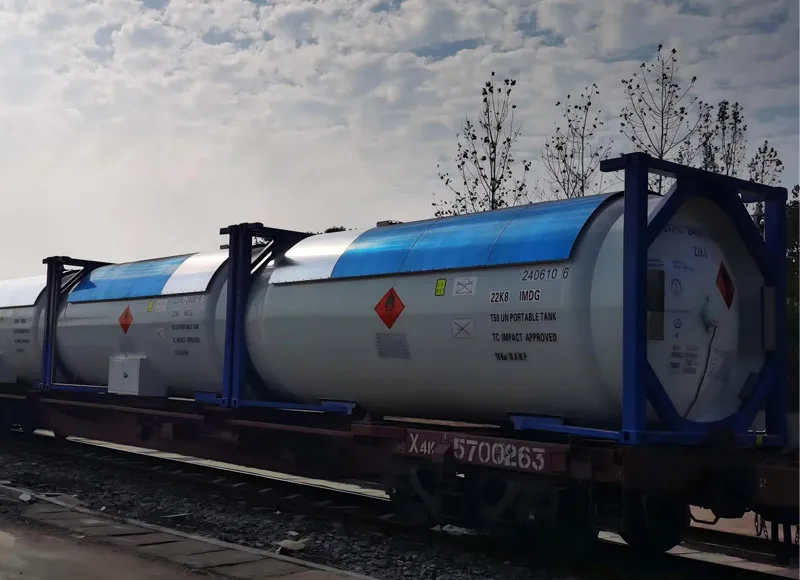

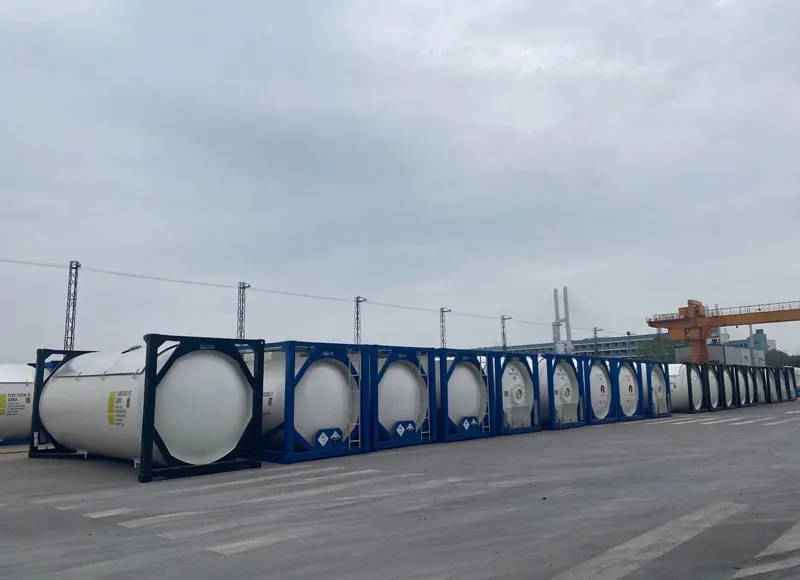

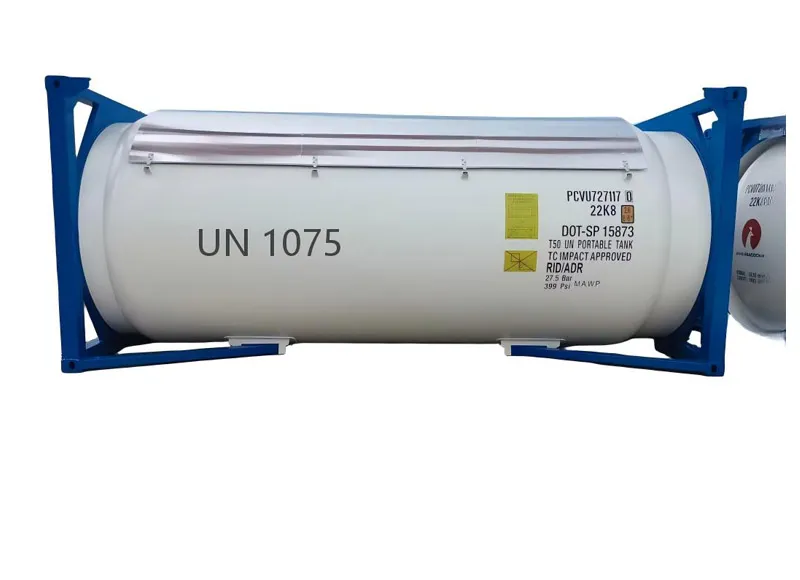

The T50 20FT LPG ISO tank container is a 24,600 L UN Portable T50 pressure tank for LPG or compatible Class 2 cargoes within the specified pressure range and tank-surface compatibility requirements. The tank is manufactured to ASME VIII Division 2:2021 Class 2 requirements with a U2 designator, together with the relevant US DOT, IMDG, ADR and RID requirements and LR classification. The 20FT full-frame configuration has a maximum gross mass of 36,000 kg and a maximum payload of 28,850 kg.
Tank Type | 20’ISO full frame, UN Portable T50 tank |
Tank Regulations | US DoT approval: ASME VIII Div-2:2021 class 2 with U2 Designator & code case 2624-1 & SP20932; IMDG/ADR/RID approvals: ASME VIII Div-2:2021 class 2 |
Frame Regulations | CSC, ISO1496/3(1CC) |
General Regulations | IMDG/ADR/RID/US DOT(CFR49)-UN Portable Tank T50, UIC, TIR, TC |
Classification Society | LR |
Capacity(Nominal: -1.5,+2%) | 24600 liters |
Frame Dimensions | 6058 mm long x 2438 mm wide x 2591 mm high |
Tank Dimensions | φ2395 mm (I/DA) x5890 mm (L) |
Products | LPG or other Class 2 within specified pressure range, and which are suitable for tank inside surface. |
Tare (Nominal:±3%) | 7150 kg / (15765 lbs) |
Max. Payload | 28850 kg / (63600 lbs) |
Max. Gross | 36000kg / (79365 lbs) |
MITI Test Pressure | 36.7 bar/532.3 psi |
Tank Test Pressure | 29.4 bar/426 psi |
Tank External Pressure | 1 bar/14.5 psi |
Leakage Test Pressure | 6 bar/87 psi |
Tank Design Temperature | -40℃ to 55℃ |
MDMT | -40℃ |
Shell Material | ASME SA612M, Normalized |
Dished Ends Material | ASME SA612M, Normalized |
Flanges Material | SA 350 LF2 CL.1 |
Frame to Shell Material | ASME SA 516 or equivalent. |
Framework Material | SPA-H or equivalent |
Corner Castings | To ISO 1161, standard ISO castings |
Joint efficiencies | Shell:1.0 Ends:1.0 |
Nondestructive Examination | Radiography and VT: Shell & Ends: full (100%) Nozzle to vessel junction D weld joints,100% MT. Conform to ASME Ⅷ Div-2 other requirements |
Heat Treatment | Post weld heat treatment acc. ASME code. |
This 24,600 L T50 tank is intended for lpg gas transport projects that require a 20FT ISO frame, LR classification and the specified ASME VIII Division 2 pressure-vessel configuration. The 20FT format is often preferred where terminal handling, route compatibility or project specifications favor a smaller frame. A 40FT T50 model may provide greater nominal volume, but dimensions, tare mass, classification and logistics also change. Model selection should therefore consider the complete transport requirement rather than capacity alone.
