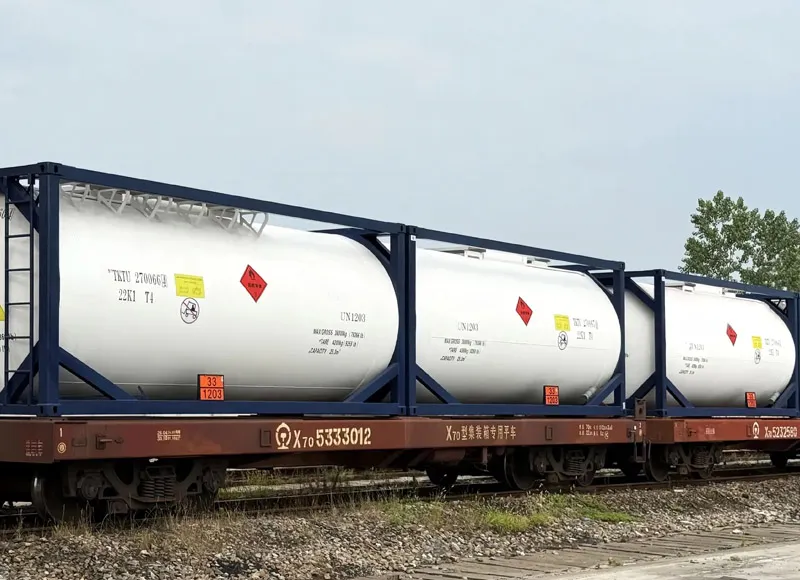

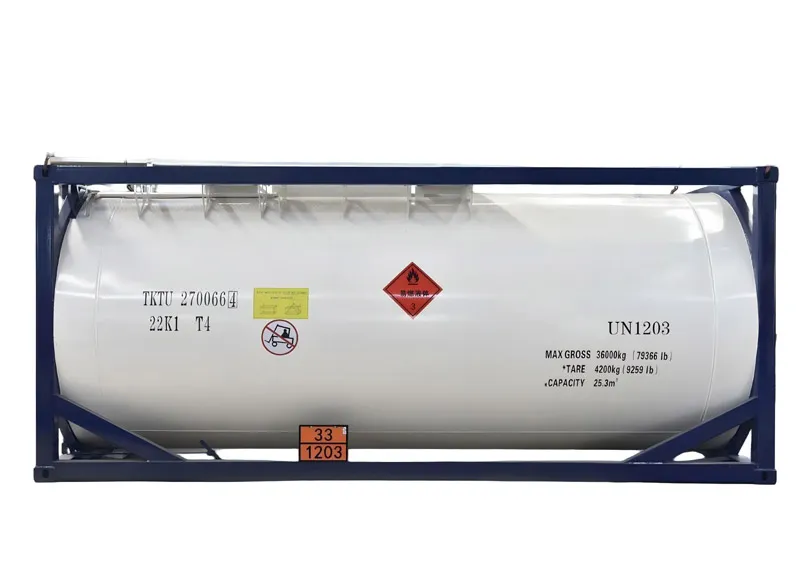

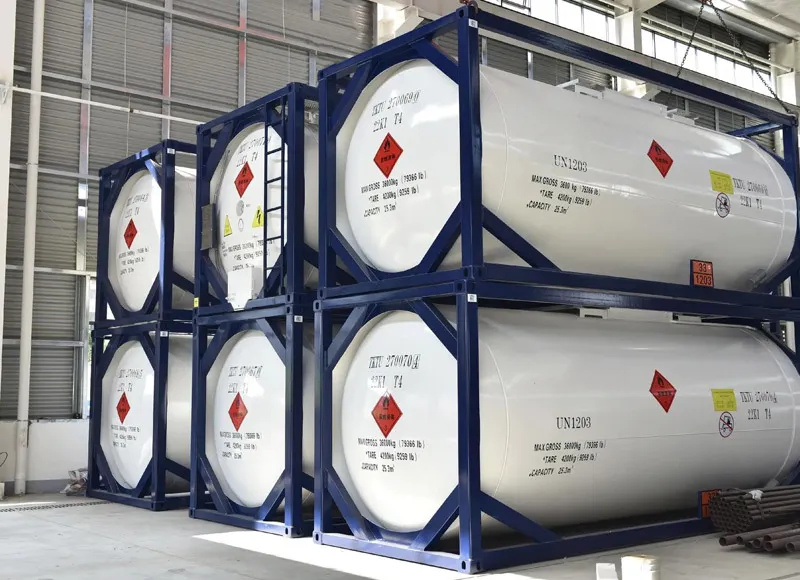

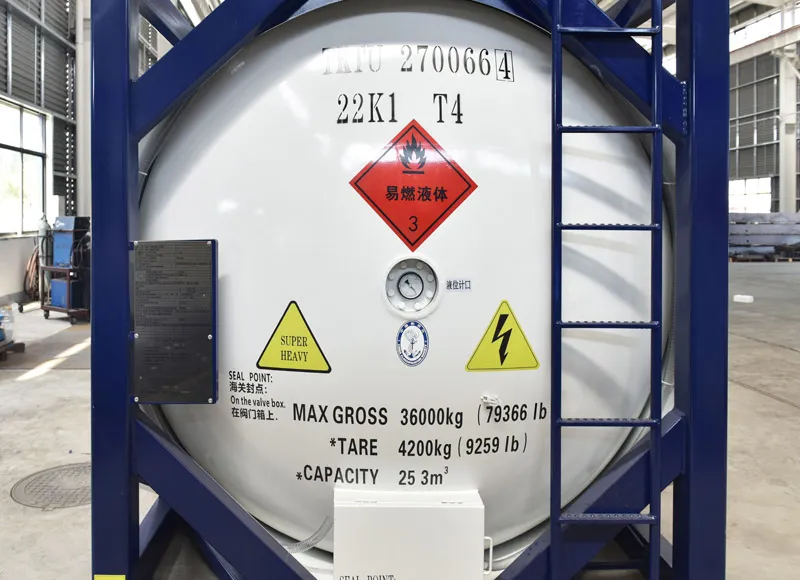

This 20FT T4 ISO tank container is a 26,000 L UN Portable Tank T4 in a full-frame collar configuration for gasoline, diesel and other compatible liquid cargoes. The container measures 6058 × 2438 × 2591 mm, with a 1.77 bar working pressure and a 2.65 bar test pressure. CCS is used for vessel design, inspection and design approval, while final cargo compatibility is confirmed against the applicable T4 requirements and tank material.
product name | 20FT T4 ISO Tank Container |
Tank Type | 20FT ISO full frame collar tank. Type UN Portable Tank T4 un-insulated. Top side rails fitted. |
Frame Dimensions: | 6058mm×2438mm×2591mm |
Capacity | 26000L±1% |
Max total mass R | 36000kg |
Empty box mass T | 4000kg±3% |
Max allowable leading P | 32000kg |
Working Pressure | 1.77bar |
Test Pressure | 2.65bar |
Max.Allowable Vac cum | 0.21bar |
Designed Temperature | -40℃ to 65℃ |
Vessel Material | 16MnDR |
Shell Thickness | 6.0mm |
Ends Thickness | 8.0mm |
Corrosion Allowance | 0.15mm |
Frame Material | GB/T 1591-Q355D or SPA-H(or equivalent) |
Frame to Shell | Q345E(-40℃) |
Corner Casting | ISO 1161-8 off |
Vessel Design Code | CCS |
Radiography | Shell: Spot Ends: Full |
Inspection Agency | CCS |
Cargo carried | See dangerous cargo lists for UN Portable T4 tank，It does not corrode the material of the tank |
Stacking | Each container ls approved for 10 high stacking |
Design Approvals | CCS |
Internal Finish | Longitudinal welds:as Circumferential welds:as welded Weld ripple on internal fillet welds on tank nozzles dress to be as welded All Rust is removed from the tank |
External Finish | Tank Shell:External surface of tank deaned after completion of all welding and testing |
Painting | Framework: All carbon steel parts shall be sandblasted to Swedish Standard Sa2.5 (Sa2½) in accordance with the specification. First coat:Epoxy zinc rich primer 30 micron min DFT Intermediate:Epoxy primer 40 micron min DFT Final coat:Polyurethane 50 micron min DFT TOTAL120 micron min DFT |
Colour | Frame:Blue Canbody:White |
The iso tank capacity of this 20FT T4 model is 26,000 L ±1%, with external dimensions of 6058 × 2438 × 2591 mm. Maximum total mass is 36,000 kg, empty mass is approximately 4,000 kg ±3%, and maximum allowable loading is 32,000 kg. Working pressure is 1.77 bar and test pressure is 2.65 bar, with a design temperature range from -40°C to 65°C. These values allow volume, payload and route requirements to be evaluated together before the final T4 tank configuration is selected.
