Power Module: Auxiliary engine, high-pressure pump, suction fan, hydraulic oil tank
Sweeping System: Center-mounted dual-sweeping discs, high-pressure reel, suction cup, pneumatic control box
Tank System: Garbage tank, clean water tank, water filter cup, aluminum alloy water distribution valve
Control Unit: Hydraulic valve block, electronic control system
Spray Dust Suppression: Water filter, rear annular water spray rack, high-pressure spray bar, high-pressure nozzles, universal forward-flushing
Auxiliary Functions: TV monitor, warning device (optional), contamination viewing window
| SPECIFICATION | |
| Truck Specification | |
| Product Name | Road cleaning Truck |
| Chassis Specification | |
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei |
| Transmission brand | Fast, ZF, Manual/ ATM |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin |
| Upper body specification | |
| High pressure cleaning/washing system | Water cleaning speed: 3-20 km/h |
| Water cleaning width: 3-3.5 meters | |
| Water pressure of cleaning system: 10-12mpa | |
| Flux of water pump: 115/154L/min | |
| Working Performance | 1. Sweeping efficiency 95%; |
2. Max suction size 110mm; | |
| 3. Sweeping width 3.0m; | |
| 4. Max cleaning capacity 60000~7000 ㎡/h; | |
| 5. Butterfly disc extend size ≥400mm; | |
| 6. Sweeping speed 3-20km/h. | |
| Deputy Engine System | |
| Deputy engine model | ISUZU 64kw OR Cummins 140kw diesel engine |
| Fuel type | diesel |
| Tank System | |
| Water tank | Material: stainless steel |
| Volume: 4500L-9000-13000 L | |
| Garbage tank | Material: stainless steel |
| Volume: 3000L-7000-9000 L | |

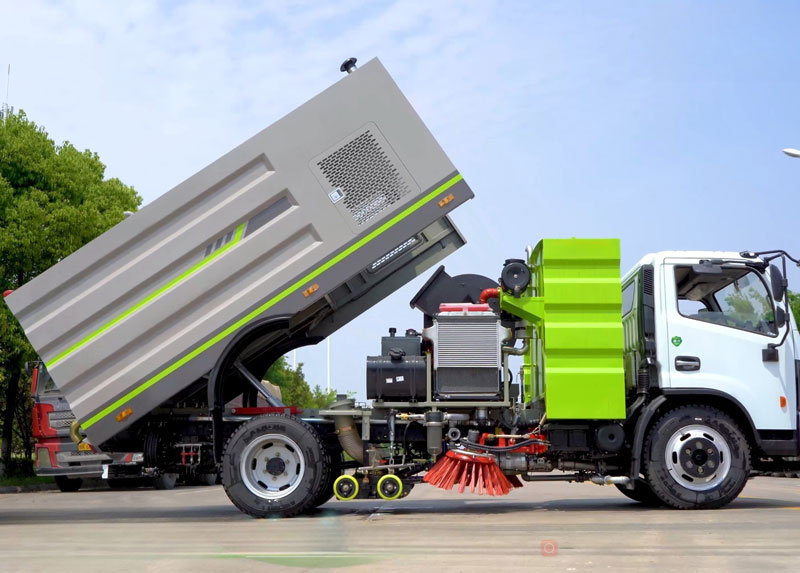

| Discharging door opening angle: ≥45° | |
| Hydraulic System | |
| Type | electrical control |
| Main components | gear pump, hydraulic motors, hydraulic cylinders, solenoid valve |
| System pressure | 16Mpa |
| Hydraulic oil tank capacity | 60L |
| Oil temperature | 60°C |
| Electrical System | |
| Type | DC24V |
| Voltage | 24V |
| Battery | 24V |
| High pressure Water System | |
| Type | Plunger pump |
| Model | Germany PT36 PT40 PF36 and relevant series |
| Pressure of system | 10 MPa |
| Running speed | 1150r/min |
| Water pressure | 7 MPa |
| Other components | Hydraulic control high pressure ball valve, water filter, high pressure washing nozzle |
| Spraying system | Electrical diaphragm pump, water filter, nozzle etc. |
| Sweeping Device System | |
| Type | Centre installation 2pcs sweeping disc, hydraulic motor drive, right front can be independently controlled, with functions of avoiding collision response |
| Sweeping disc diameter | 850mm |
| Sweeping disc- angle | Forward 4-6° |
| Outward 4-7° | |
| Sucking Disc System | |
| Type | Single suction, hydraulic control, spring suspension |
| Suction entrance diameter | 180-200mm |
| Suction width | 1800-2400 mm |
Sub-engine: provide power for fan and high pressure water pump, add air filter, oil filter, effectively prevent the sub-engine into the dust, resulting in cylinder pulling.

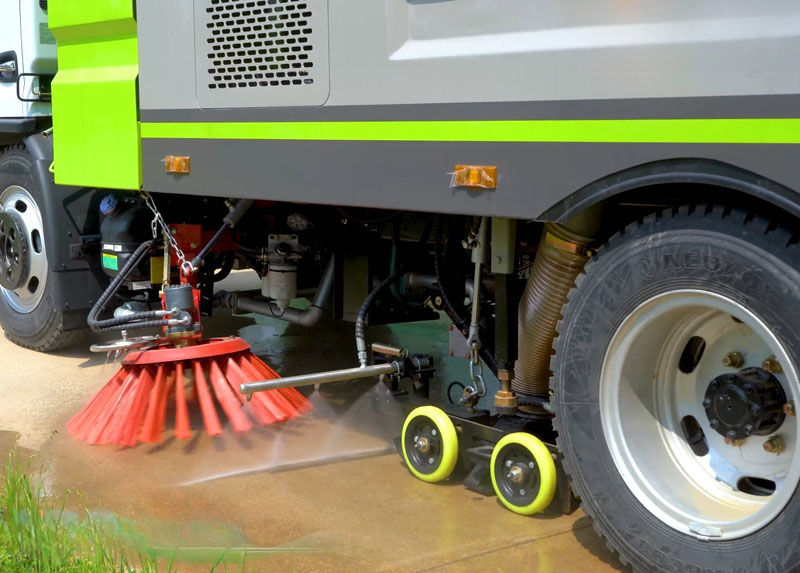

Sweeping device: the center 2 sweeping discs with anti-collision shock-absorbing function, can sweep the road surface, scrubbing curb standing stone surface.

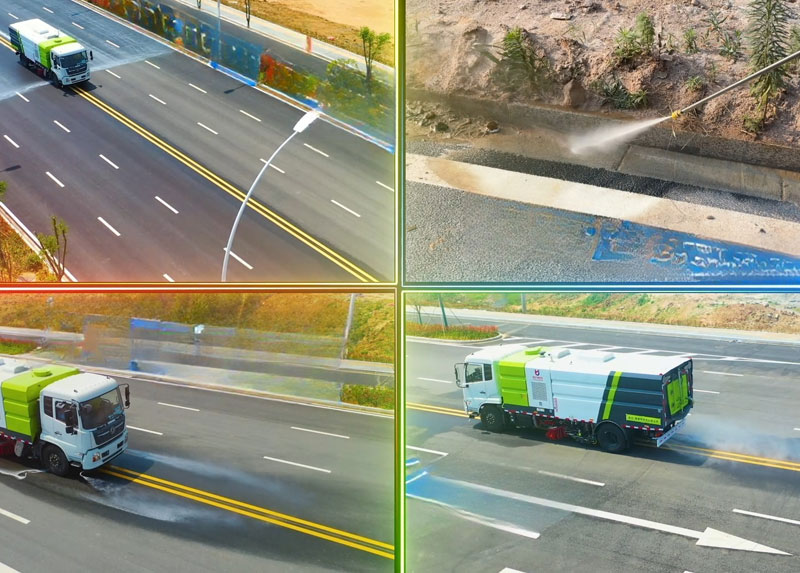

Can be configured with a variety of cleaning methods, standard high-pressure nozzles, universal forward spray, high-pressure cleaning water gun, rear spray.
