Tank System: Constructed with carbon steel/stainless steel, featuring internal baffle plates and breather valves to ensure corrosion resistance and transportation safety.
Refueling Unit: Integrated with a movable refueling dispenser, supporting flow meters, nozzle control, and multi-product compartmentalized fueling, with an error rate ≤0.3%.
Power Transmission System: Equipped with self-priming pumps, gear pumps, chemical pumps, driven via the gearbox PTO (power take-off) for efficient pumping.
SPECIFICATION | |
| Truck Specification | |
| Product Name | Refueling Truck |
| Chassis Specification | |
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei |
| Transmission brand | Fast, ZF, Manual/ATM |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin |
| Upper body specification | |
| Tank Capacity | 3000L Litres - 300000L Litres |
| Tank Material | Carbon Steel/Stainless steel/Aluminum Alloy |
| Manhole on top tanker | European standard, including pressure relief valve |
| Safety Valve | European Standard |
| Discharge Valve | Alluminum Alloy Ball Valve type |
| Emergency Cutoff Device | Equipped |
| Oil Pump | Equipped |
| Standard configuration | Tool box, climbing ladder, handrail, fire extinguisher, 15M oil hose etc. are included |
| Function configuration | Refuel Dispenser, Flowmeters, Refueling reel with refueling gun. |

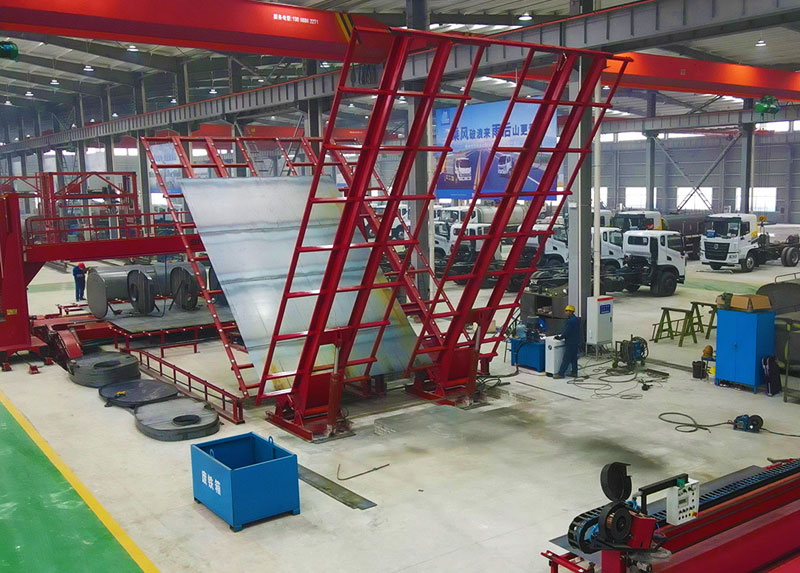

Vehision's refueling tank trucks utilize high-quality carbon steel or stainless steel. The tank body is formed in one piece using advanced rolling machines to ensure strength and safety.

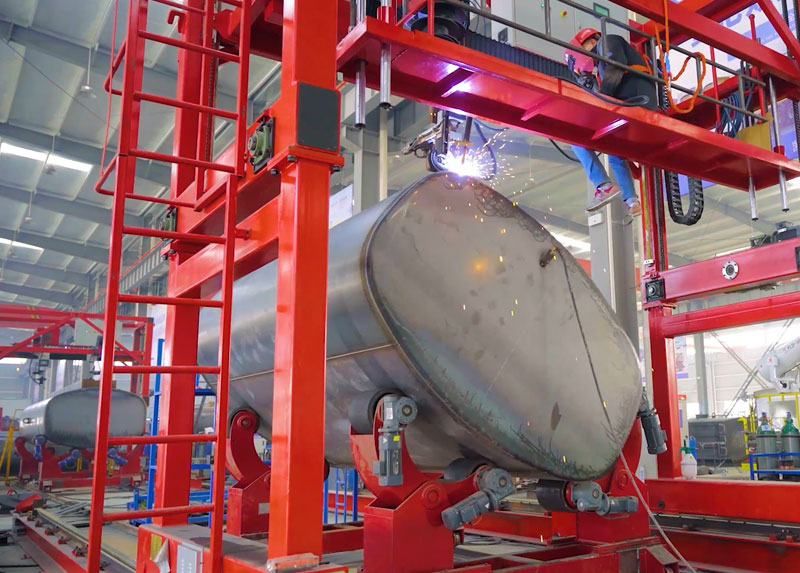

The front and rear heads of the tank undergo precise CNC cutting and spinning to enhance pressure resistance. Welding employs automatic gas-shielded welding to guarantee seam quality.

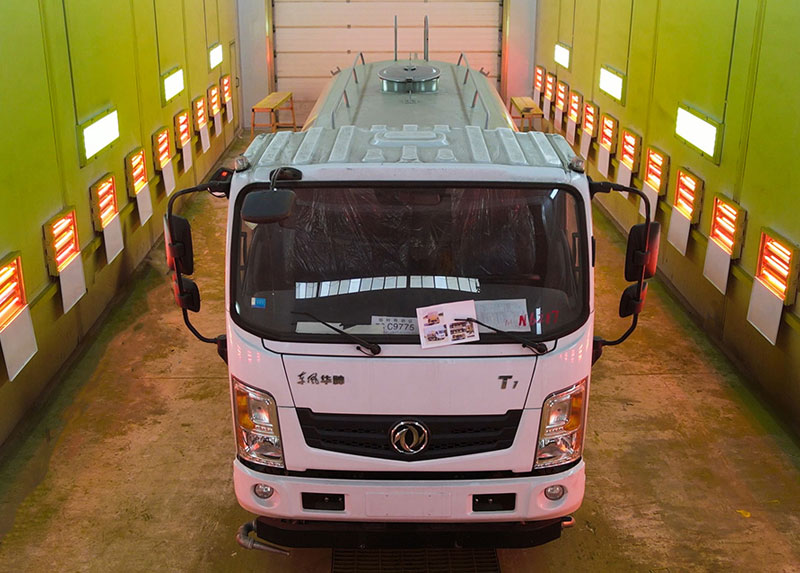

Advanced international painting techniques enhance paint adhesion and durability, paired with efficient drying equipment, ensuring a smooth appearance and excellent corrosion resistance for diverse working environments.
