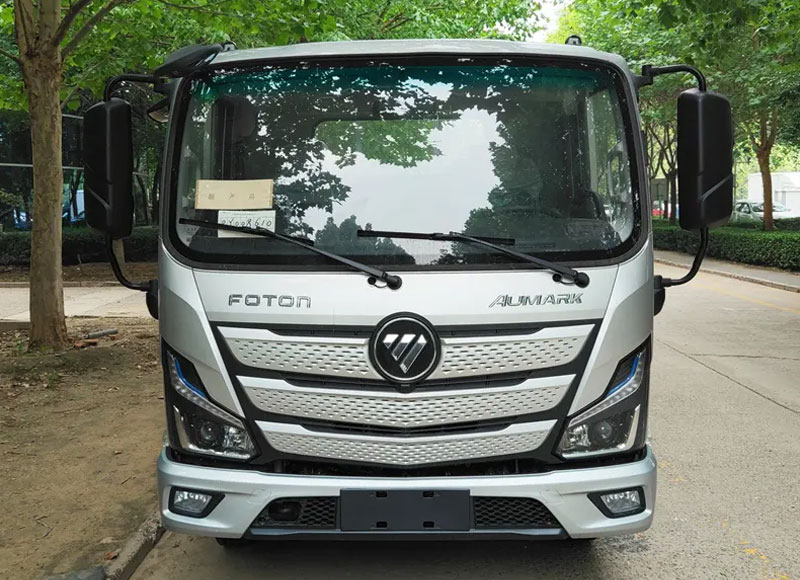

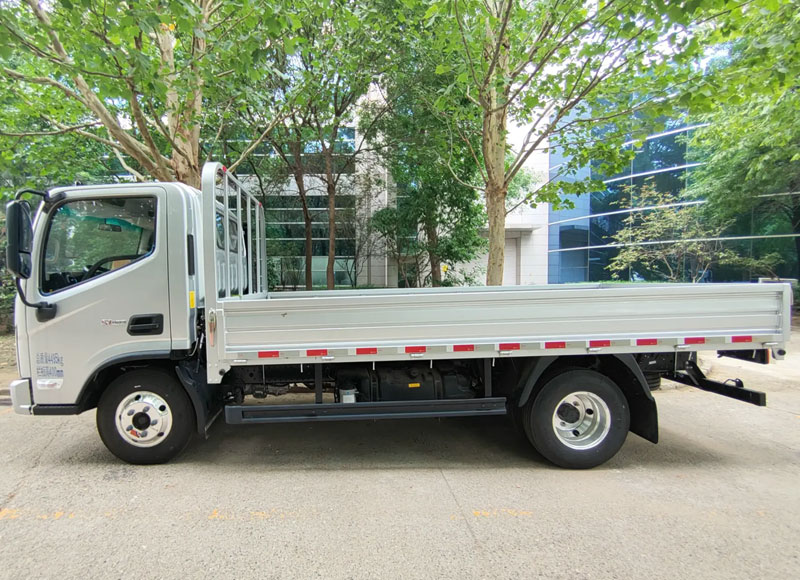

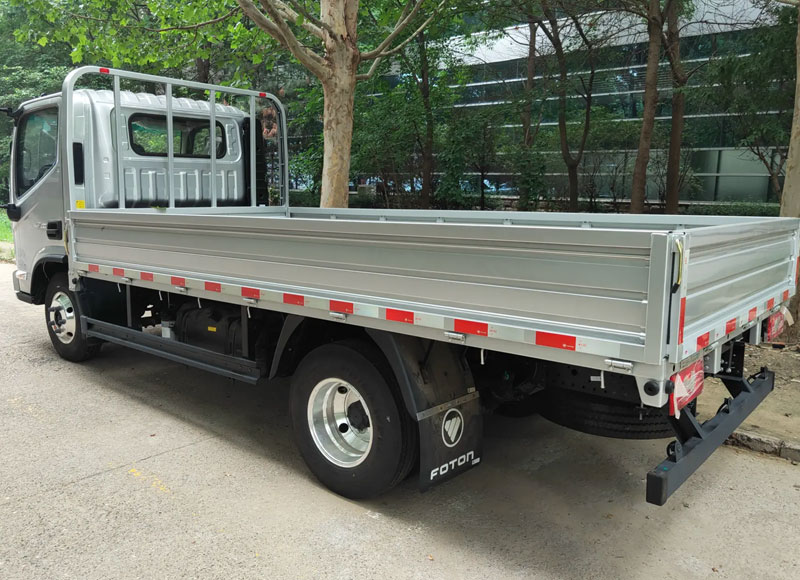

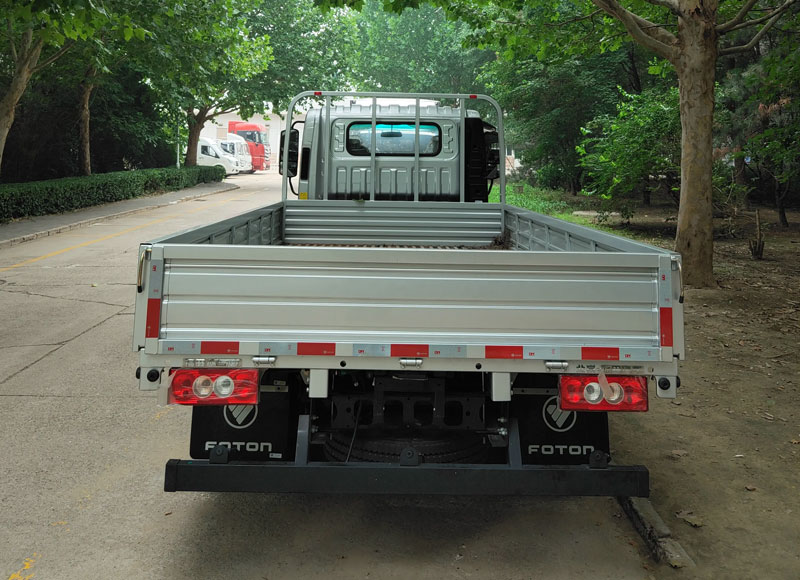

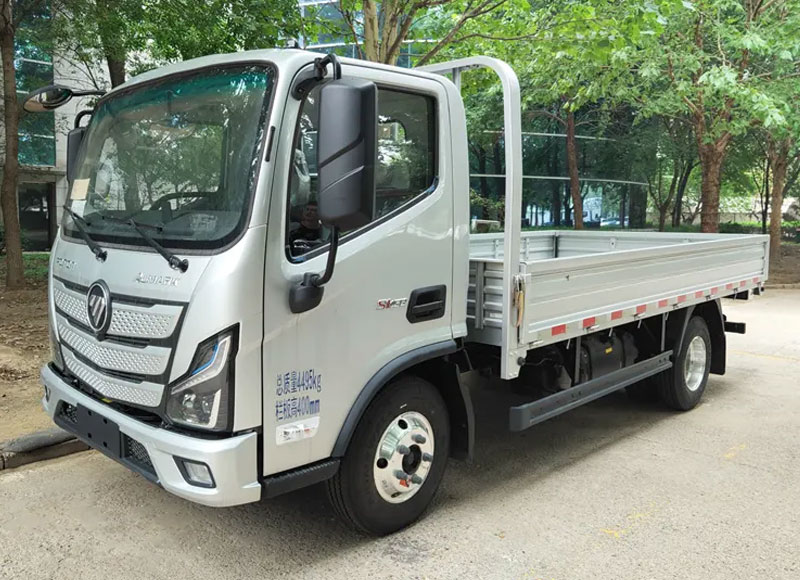

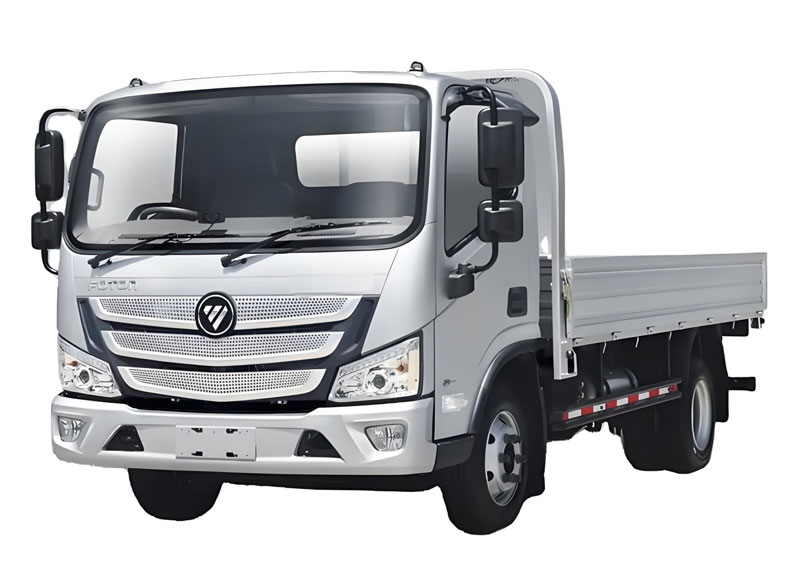

1. Foton Chassis, equipped with Quanchai 150 HP diesel engine + 5-speed transmission, combines hill-climbing capability with fuel efficiency, delivering strong power and environmental friendliness.
2. High-load chassis: Front 3 Rear 6+6 leaf spring suspension + 4.5T rear axle, compatible with 7.00R16 steel wire tires, ensuring stability under heavy loads.
3. Total mass ≤4,495kg, wheelbase 3,360mm, complies with regulations for access to restricted zones, ideal for urban quick delivery.
4. Comfortable driving setup: Forward-tilting cab, power windows + central locking + cruise control, shock-absorbing seat reduces driver fatigue.
Chassis | |
| Brand | Foton |
| Drive Type | 4x2,RHD/LHD |
| Gross Vehicle Weight(kg) | 4495 |
| Curb Weight(kg) | 2565 |
| Load Weight(kg) | 1735 |
| Overall Dimension(mm) | 5995×2200×2400 |
| Tyre Qty. | 6 |
| Tyre Spec. | 7.00R16LT 8PR |
| Wheelbase（mm） | 3360 |
| Front/Rear Overhang (mm) | 1130/1505 |
| Approach/Departure Angle(°) | 21/16 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 95 |
| ABS | Included |
| Transmission | 5-speed |
| Cab | 2-3 persons |
| Braking System | Air Brake |
Engine (Other Engine Optional) | |
| Brand | Quanchai |
| Model | Q25A-150E60 |
| Power(kw) | 110 |
| Horsepower(HP) | 150 |
Upper & Equipment | |
| Van Dimension(mm) | 4170×2100×400 |
| Cargo box weight(kg) | 305 |
| Bottom Plate Material | Q235 |
| Bottom Plate Thickness(mm) | 2 |
| Side Plate Material | Q235 |
| Side Plate Thickness(mm) | 1.2 |
| Standard Configuration | 1. Five-door cargo box with built-in ribs 2. Cargo box locking mechanism 3. Mud curtain with logo |
| Remarks | Customized LOGO design as per customer needs! |
