1. 8cm-thick insulation – XPS foam core with sandwich structure meets Class A national thermal standard.
2. Durable FRP body – Anti-aging, heat-resistant inner/outer panels enhance longevity.
3. Precise temperature control – Kelly unit offers adjustable cooling (-5℃ to -15℃).
4. Heavy-duty powertrain – 120HP Isuzu engine + 5MT gearbox + ABS ensures stable loading.
5. Corrosion-resistant fittings – Stainless steel hinges/locks + aluminum edges reduce wear.
6. Modular options – Side doors, meat hooks, or Carrier/Thermo King units support diverse needs.
Chassis | |
| Brand | Isuzu |
| Drive Type | Left hand drive/4x2 |
| Gross Vehicle Weight(kg) | 4495 |
| Curb Weight(kg) | 3200 |
| Load Weight(kg) | 1100 |
| Overall Dimension(mm) | 5995×2260×2980 |
| Van Dimension(mm) | 4075×2100×1860 |
| Tyre Qty. | 6 |
| Tyre Spec. | 7.00R16LT 8PR |
| Wheelbase（mm） | 3360 |
| Front/Rear Overhang (mm) | 1110/1525 |
| Approach/Departure Angle(°) | 19/16 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 115 |
| ABS | Included |
| Transmission | Isuzu MSB-5MT,5-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 2-3 persons |
Engine (Other Engines Optional) | |
| Brand | Isuzu |
| Model | 4KH1CN6LB |
| Power(kw) | 88 |
| Horsepower(HP) | 120 |
Upper & Equipment | |
| Construction Technology | The compartment is produced via integrated vacuum adsorption and hydraulic adsorption molding production line, utilizing sandwich composite bonding to achieve Class A national standard thermal insulation performance. |
| Inner/Outer Wall Panels | High-quality domestic FRP (Fiber Reinforced Plastic) for superior properties: Non-absorbent to light Excellent thermal insulation High rigidity Anti-oxidation |
| Insulation Layer | XPS extruded polystyrene foam board (8cm thickness) |
| Floor | Aluminum tread plate |
| Door Edging | Labyrinth-type rubber sealing strips for enhanced airtightness |
| Refrigeration Unit | Kelly Refrigeration unit , optional temperature: -5°C or -15°C |

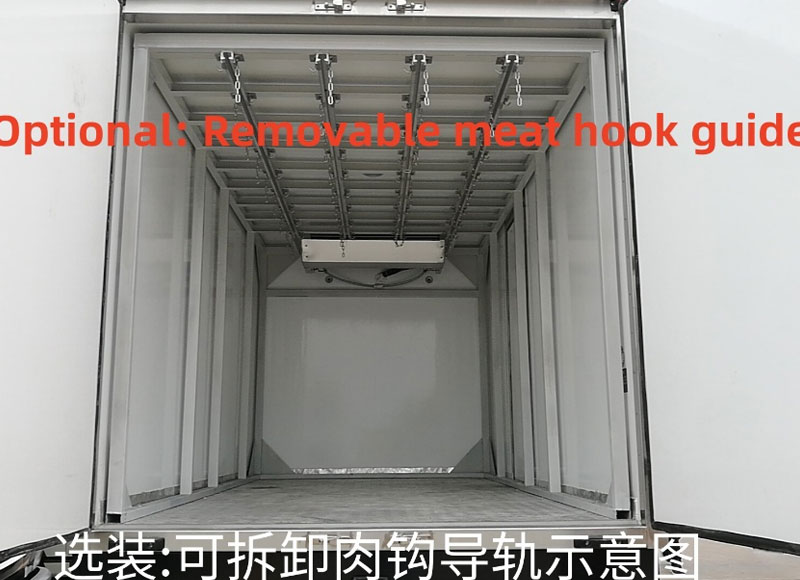

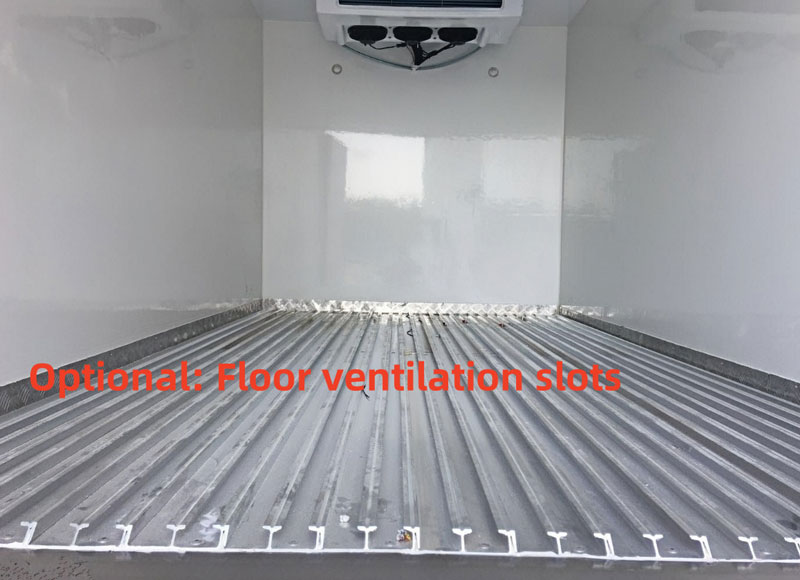

| Optional Configurations | Side door. Floor ventilation channels. Meat hook guide rails. Imported units: Thermo King (USA) or Carrier (USA) refrigeration units. |
| Accessories | Aluminum alloy edge trimming around the compartment Stainless steel corner protectors, stainless steel door locks, hinges, door frames Energy-efficient LED interior lighting. |
| Other Services | Customized LOGO design as per customer needs! |
