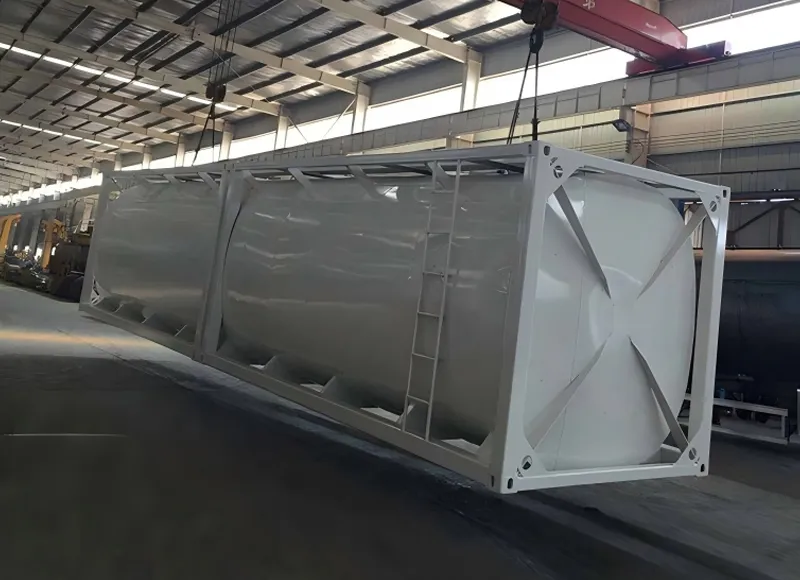

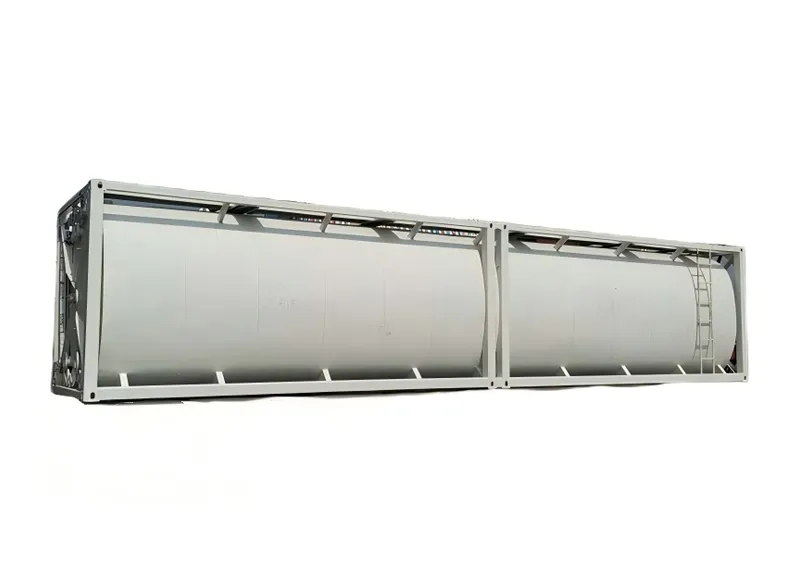

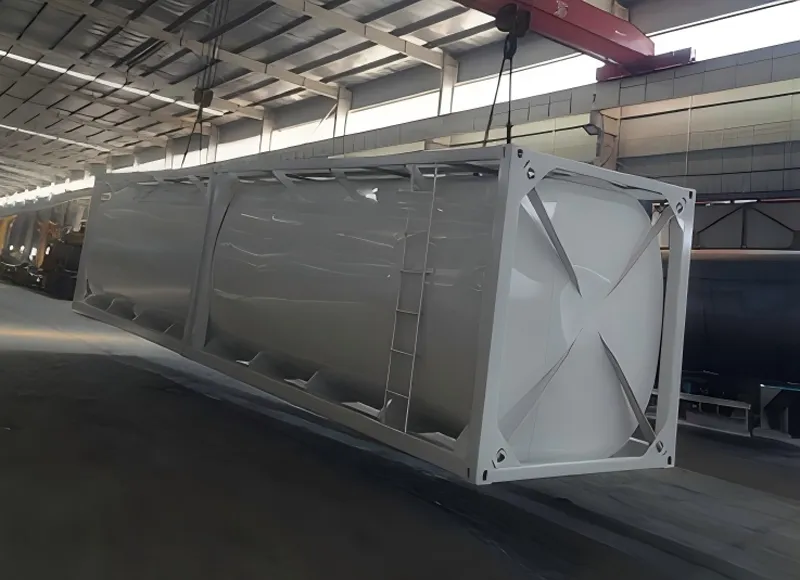

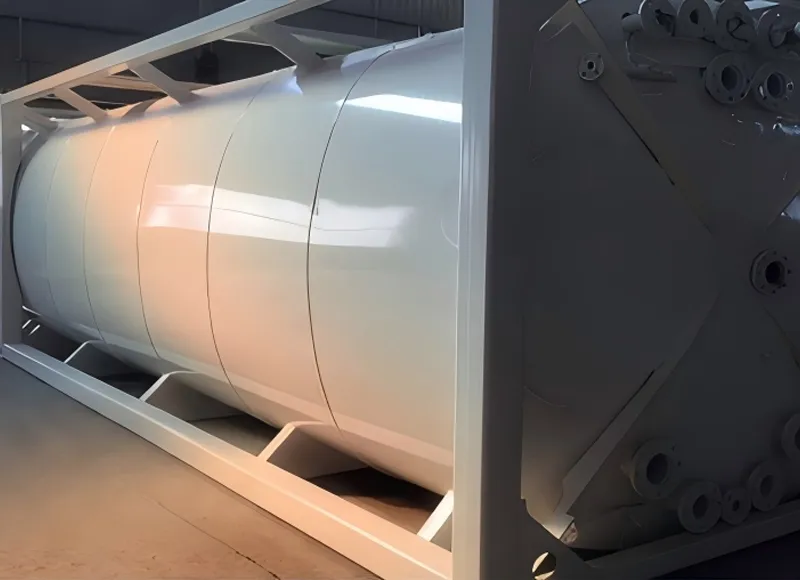

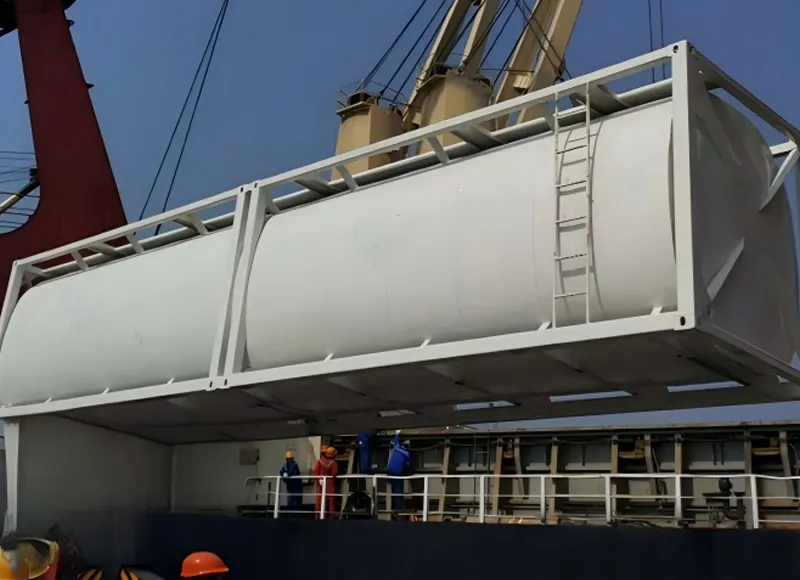

Vehision 40FT Fuel ISO Tank Container is engineered for the safe and efficient bulk transport of diesel, gasoline, and other flammable liquids. With a maximum allowable payload of 32,000 kg and a geometric capacity ranging from 40 to 48 m³, this ISO tank container meets high-density filling requirements (up to 800 kg/m³). Its robust Q235B carbon steel construction features a 4.75 mm tank shell and 5.75 mm tank head, ensuring durability for a 10-year design service life.
The unit is equipped with an EU-compliant two-manhole top design, a bottom walkway for easy access, and a rear discharge outlet with a protective box, while the square-shaped tank structure maximizes stability during road and sea transport. For a tailored logistics solution, Vehision also supports customized logo design and additional configurations to match your fleet's branding needs.
| Overall Dimensions (L×W×H) | 12200×2440×2610 mm | |||
| Tank Geometric Capacity(m³) | 40~48 | |||
| Filling Density(kg/m³) | 800 | |||
| Design Service Life | 10 years | |||
| Material | Q235B | |||
| tank shell thickness(mm) | 4.75 | |||
| Tank Head thickness(mm) | 5.75 | |||
| Tank Weight(kg) | 8000 | |||
| Maximum Allowable Payload(kg) | 32000 | |||
| Working Pressure(MPa) | 0.1 | |||
| Max Working Pressure(MPa) | 0.77 | |||
| Other Configurations | Bottom walkway; Rear discharge outlet; Discharge outlet equipped with protective box; Square-shaped tank design; Two manholes on the top, compliant with EU standards | |||
| Other Services | Customized LOGO design as per customer needs! | |||
