1. The Shacman G5 chassis is equipped with a 350-horsepower engine, featuring EBS electronic braking and ESC vehicle stability systems. The double-layer frame and air suspension enhance adaptability to complex road conditions, while the tire blowout emergency device ensures hazardous material transportation safety.
2. The tank is welded with 5182 aluminum alloy plate, with main welds X-ray inspected and compliant with GB18564.1 standards. The lightweight design lowers the center of gravity, provides rust-proof performance, and prevents oil contamination.

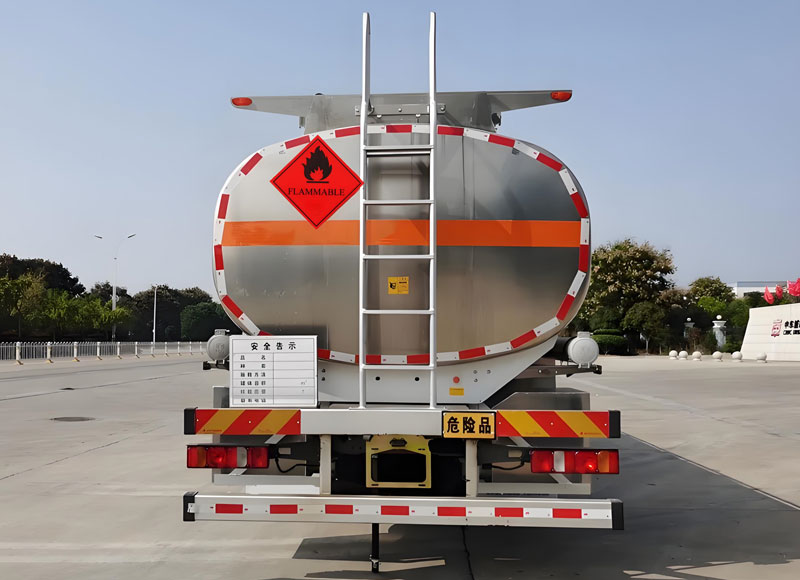

3. The rear integrates a chemical pump and dual European-standard tank openings, paired with a bottom valve and stainless steel oil pipes for rapid loading/unloading. Voice alarms and 8kg fire extinguishers strengthen safety during transportation.
4. The front-mounted exhaust system and full-metal bumper meet hazardous material specifications. Optional tire pressure monitoring and hazardous material warning lights comply with regulatory requirements.
Chassis | |
| Brand | SITRAK G5 |
| Drive Type | 8x4 |
| Gross Vehicle Weight(kg) | 32000 |
| Curb Weight(kg) | 11205 |
| Loading Weight(kg) | 20600 ,20665 |
| Overall Dimension(mm) | 11860×2550×3450 |
| Tyre Qty. | 12 |
| Tyre Spec. | 295/80R22.5 18PR |
| Wheelbase（mm） | 1800+4575+1400 |
| Front/Rear Overhang (mm) | 1450/2635 |
| Approach/Departure angle(°) | 16/10 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 80 |
| ABS | Yes |
| Transmission | 9-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | CNHTC Group |
| Model | MC07H.35-60 |
| Power(kw) | 257 |
| Horsepower(HP) | 350 |
Upper Equipment | |
| Tank Capacity(cbm) | 20 |
| Tank Dimension(mm) | 7200×2250×1560 |
| Tank Material | Aluminium alloy |
| Tank Compartment Qty. | Single-chamber |
| Tank Filling medium | Ethanol, crude oil |
| Standard Components | 2× EU-standed tank ports; 1×Chemical pump; 1×Breathing valve; 1× bottom valve; 1×Voice prompt alarm system; 1×Tool kit; 2× hoses for liquid transfer; 2× fire extinguishers; 1×Top guardrails; 1×Rear access ladder; |
| Other Services | Customized LOGO design as per customer needs! |
