1. The manganese steel beam is paired with 10-ton axles, four-leaf springs and drum brakes. The 1200R22.5 vacuum tires meet heavy-load demands. 28-ton dual landing legs enhance stationary stability.
2. 304 stainless steel fully sealed welding ensures integrity. Butterfly-shaped anti-surge baffles reduce liquid impact. Passivation treatment and smooth grinding guarantee hygienic oil transportation.
3. Top quick-open tank openings enable rapid cleaning. Stainless steel self-draining ball valves and cannula pipelines boost discharge efficiency. A built-in ladder facilitates tank entry for maintenance.
4. Aluminum alloy fenders, side/rear guards and toolbox reduce weight. Spare tire bracket and 90# kingpin suit long-distance transport. Complies with hazardous material vehicle safety regulations.
Chassis | |
| Gross Vehicle Weight(kg) | 40000 |
| Curb Weight(kg) | 6200,5700 |
| Loading Weight(kg) | 33800,34300 |
| Tyre Qty. | 12 |
| Tyre Spec. | 12R22.5 12PR |
| Wheelbase（mm） | 5840+1310+1310 |
| Front/Rear Overhang (mm) | -/1690 |
| Approach/Departure angle(°) | -/16 |
| Load-bearing Configuration | 10-ton branded axles 4-leaf spring suspension 28-ton dual landing legs (enhanced parking stability) |
| Braking System | Drum brake system |
| Towing Device | 90# tow hitch |
| Chassis Material | Manganese steel (high-strength torsion-resistant design) |
Upper Equipment | |
| Tank Capacity | 41m³/cbm/L |
| Tank Dimension(mm) | Front:2920×2500×1780 Rear:7350×2500×1930 |
| Tank Material | Aluminum alloy |
| Tank Compartment Qty. | Single-chamber , Multi-chamber customizable |
| Tank Filling medium | Edible oil |
| Baffle Plate | Butterfly-shaped stainless steel baffle plate (to suppress liquid sloshing ) |
| Welding Process | Full welding without pores, smooth and polished welds |
| Tank Treatment | Internal passivation treatment, ensuring no residual impurities |
| Top Configuration | 2 x Aluminum alloy quick-opening tank hatches; Breath valve and anti-overflow sensor |

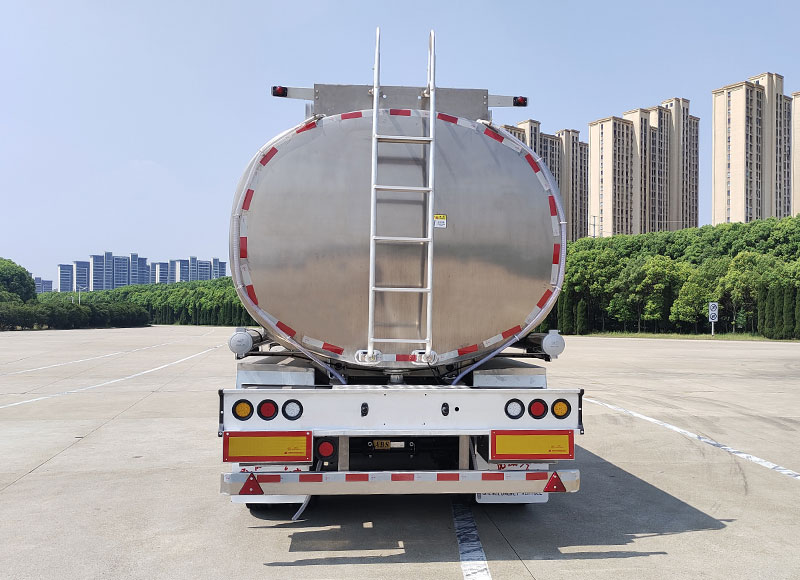

| Internal Facilities | 1x Internal tank ladder (for easy cleaning and maintenance) |
| Control Valve | 1x Aluminum alloy master control valve |
| Discharge Outlets | 2x Aluminum alloy ball valves with self-draining ports |
| Auxiliary Piping | Stainless steel barrel pipes (compatible with pumping systems) |
| Lightweight Components: | Aluminum alloy fenders, side/rear protective panels |
| Toolbox | 1 aluminum alloy toolbox |
| Spare Tire Mount: | 1 spare tire bracket (designed for long-distance transportation) |
| Other Services | Customized LOGO design as per customer needs! |
