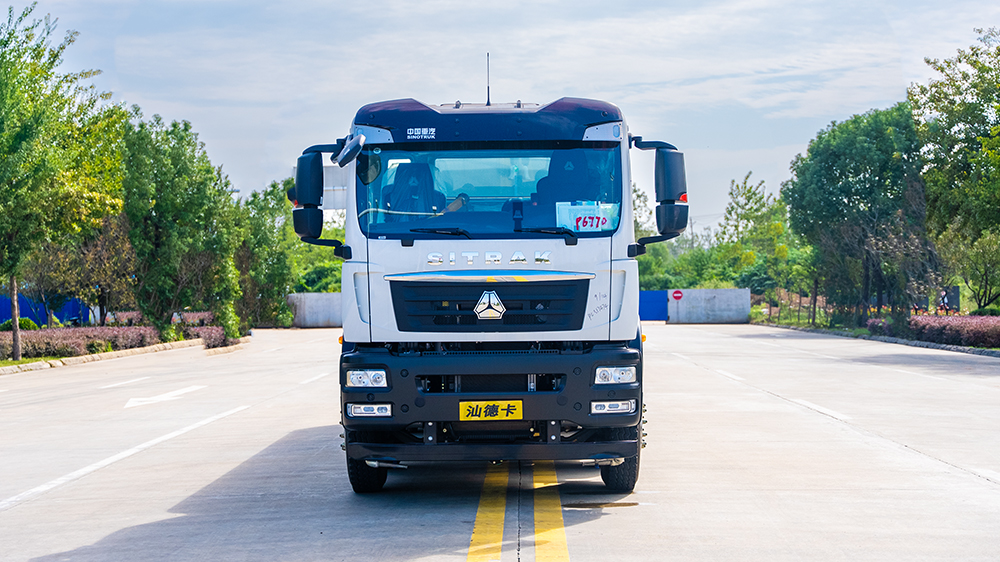

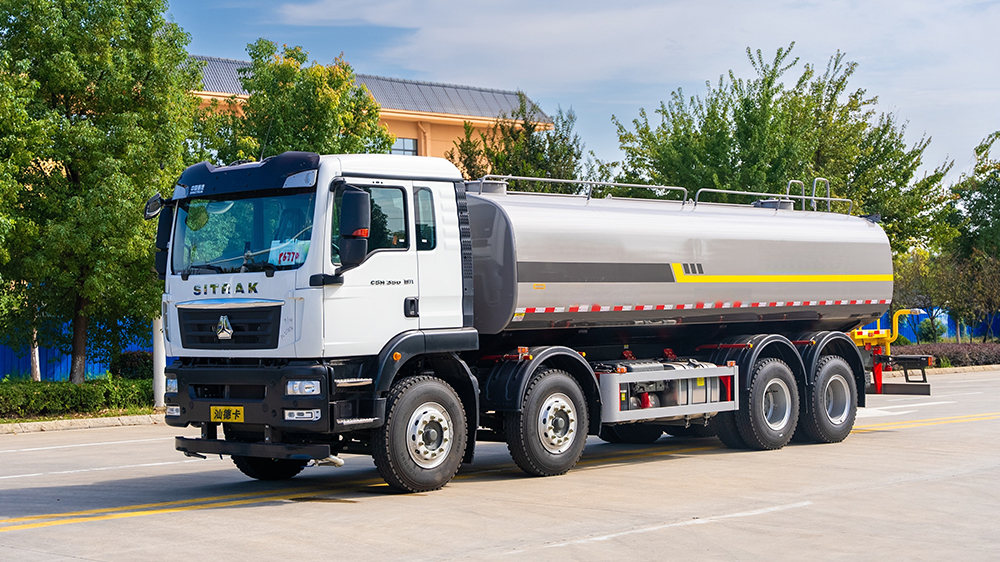

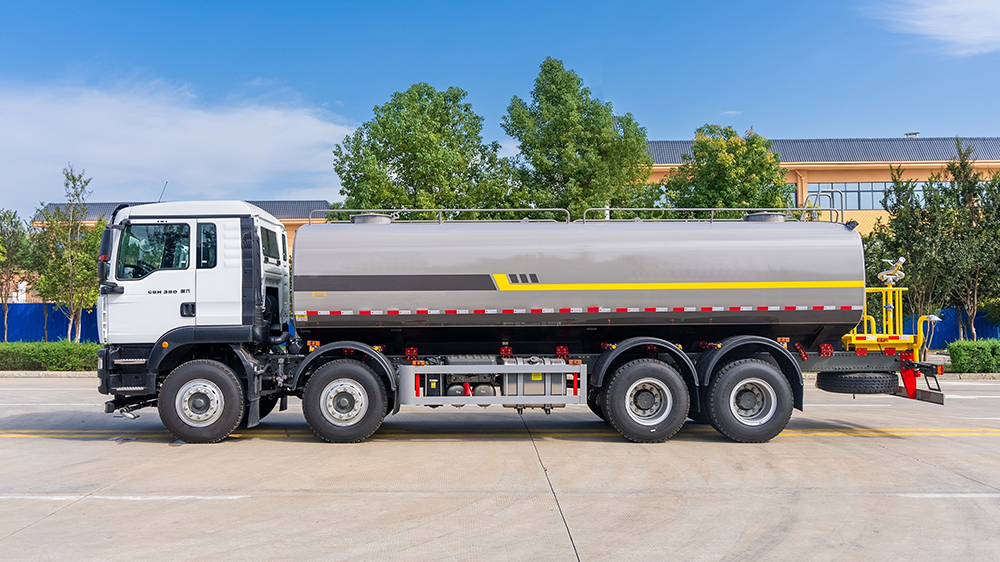

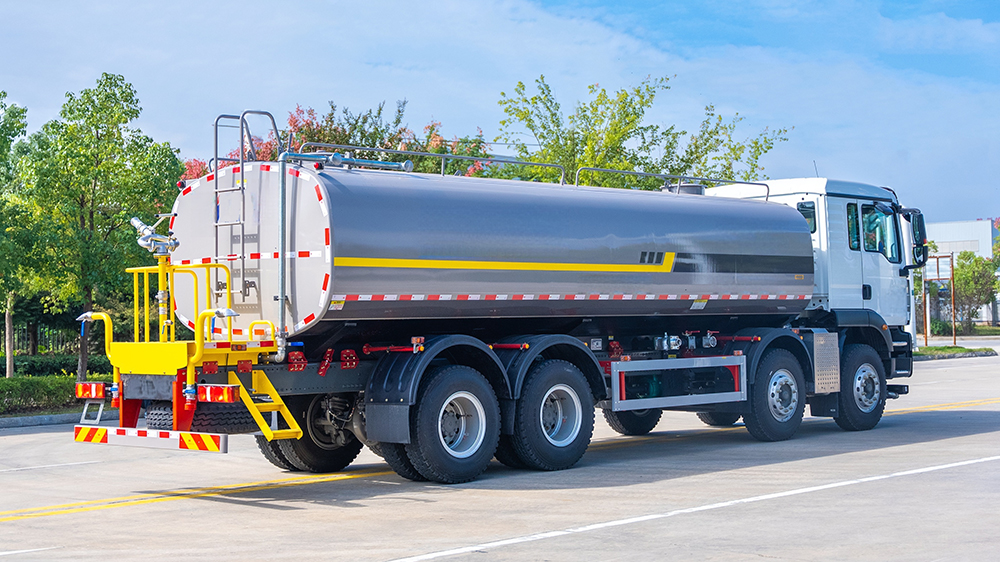

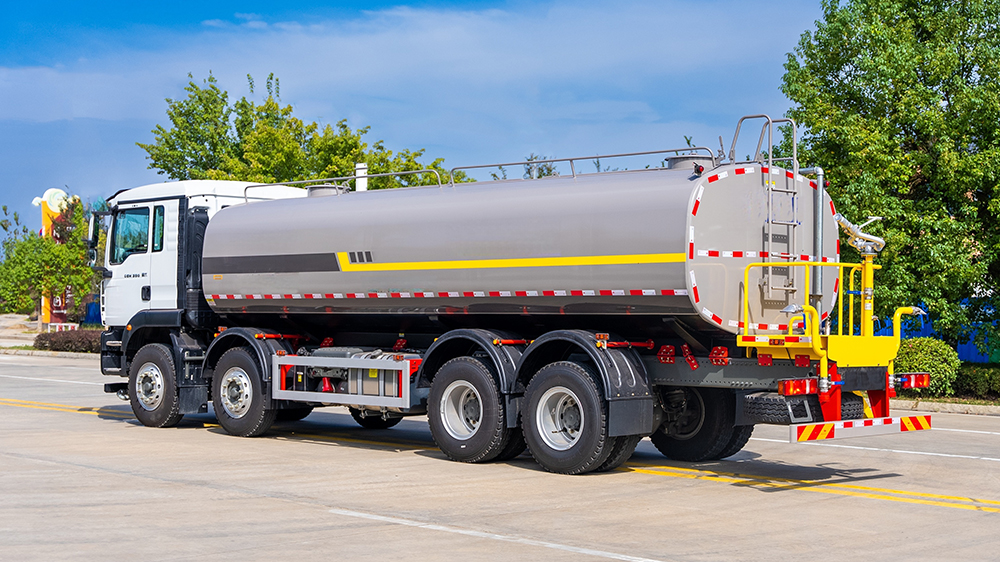

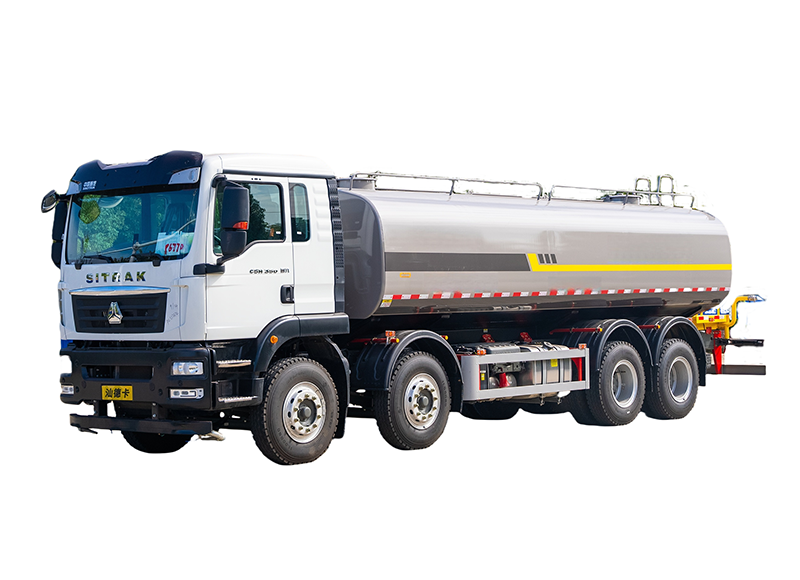

1.The water truck is built on a Sinotruk 8x4 chassis, equipped with the original factory engine. The high-torque, high-performance chassis is well-suited for operation across a wide range of road conditions.
2.The tank is bolted to the subframe using a dual-support structure, enhanced with anti-surge baffles and frost-resistant drainage outlets, ensuring operational and driving safety.
3.Equipped with a custom high-power water pump and 89mm high-flow pipelines, the front flush covers up to 8 lanes, while the cannon reaches up to 40 meters, setting an industry-leading efficiency benchmark.
4.Integrates front flushing, rear sprinkling, high-pressure water cannon (35m direct stream / 15m mist spray), and firefighting interface, suitable for road cleaning, landscaping irrigation, and emergency firefighting.
5.Features a dual-layer coating process with electrophoresis and powder spraying, reaching a coating thickness of 300μm, providing excellent corrosion and wear resistance, greatly extending the equipment’s service life.
| Chassis | |
| Brand | SITRAK |
| Drive Type | Left hand drive/8×4 |
| Gross Vehicle Weight(kg) | 31000 |
| Curb Weight(kg) | 13000 |
| Loading Weight(kg) | 17805 |
| Overall Dimension(mm) | 10650,10900,11100,10930,11420,11150,11400,11600,11430,11920×2500,2550×3250,3350,3450,3800,3370,3950 |
| Tyre Qty. | 12 |
| Tyre Spec. | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,12.00R20 18PR, |
| Wheelbase（mm） | 1800+3800+1350 |
| Front/Rear Overhang (mm) | 1450/2250,1450/2500,1450/2700,1450/2530,1450/3020 |
| Approach/Departure angle(°) | 16/11 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 89 |
| ABS | Yes |
| Transmission | 12-Speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 2-3 person |
| Engine(Other Engines Optional) | |
| Brand | CNHTC Group |
| Model | MC07H.35-60 |
| Power(kw) | 257 |
| Horsepower(HP) | 350 |
| Upper Equipment | |
| Tank Capacity | 25 m³/25CBM/25 Ton |
| Tank Overall Dimension(mm) | 7300×2450×1650 |
| Tank Material | Optional with carbon/stainless steel alloy |
| Tank Thickness(mm) | 4 |
| Front Spraying Width | 15-30m/15-30 meters |
| Rear Platform Water Cannon | Dust suppression range 30–40 meters, 360° adjustable; Supports adjustable spray patterns, including jet stream, rainfall, and mist modes. Maximum range in direct jet mode: ≥35 meters Maximum range in mist mode: ≥15 meters |
| Dedicated Sprinkler Pump | High-power water pump with 6-meter vertical suction capability |
| Standard Functional Configuration | 1.Front flushing, rear sprinkling, side spraying; 2.Rear-mounted working platform equipped with a high-pressure water cannon (360° rotatable); 3.Branded power take-off (PTO) unit 4.Debris filter screen 5.One set of gravity flow ball valve system (supports self-priming and self-draining, maximum suction depth: 7 meters) 6.Includes two reinforced water suction hoses with steel wire lining |
| Other Services | Customized LOGO design as per customer needs! |
