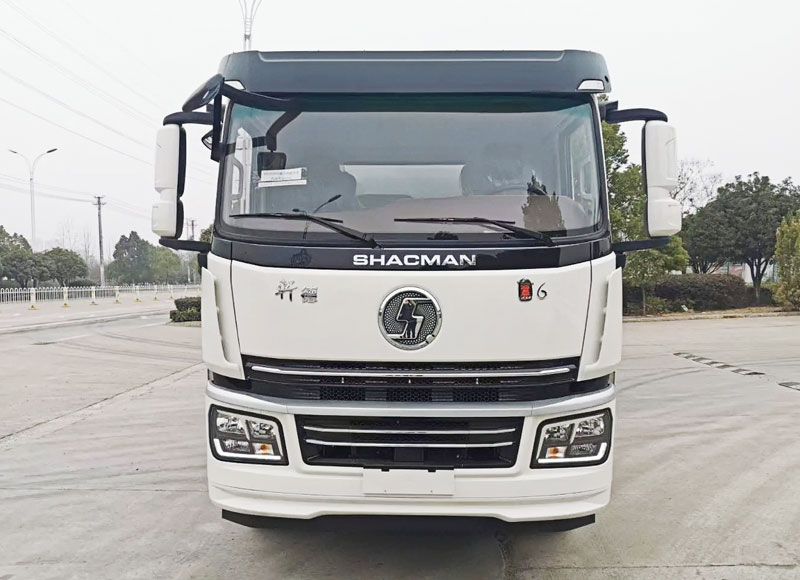

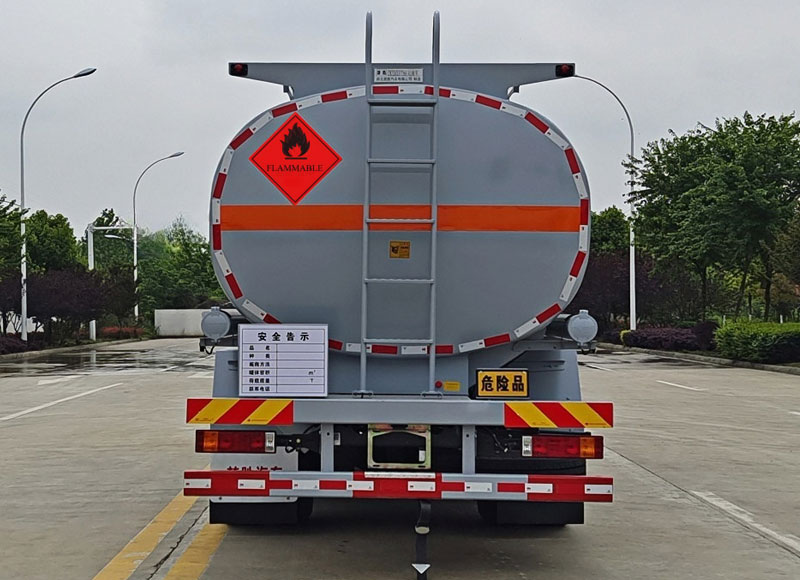

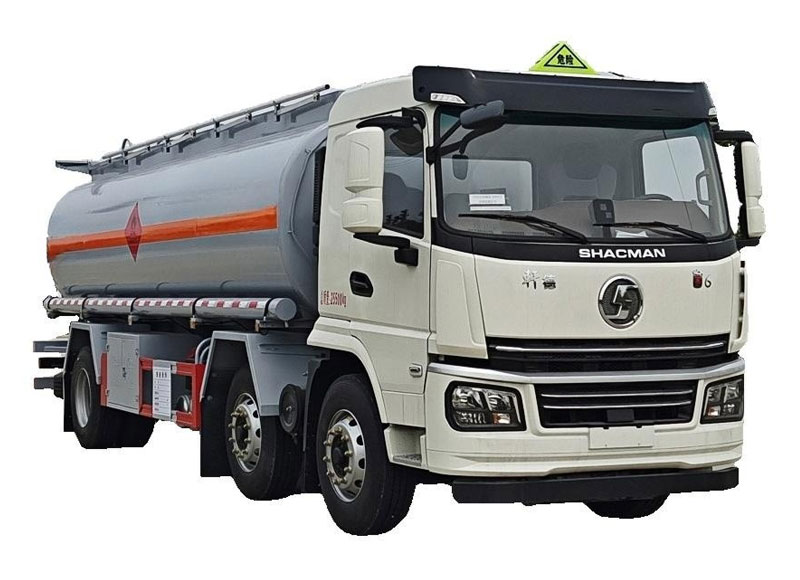

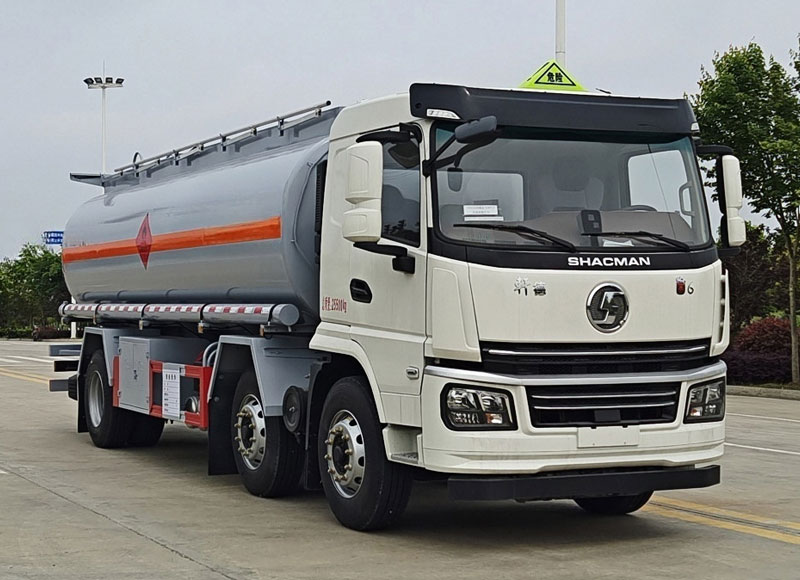

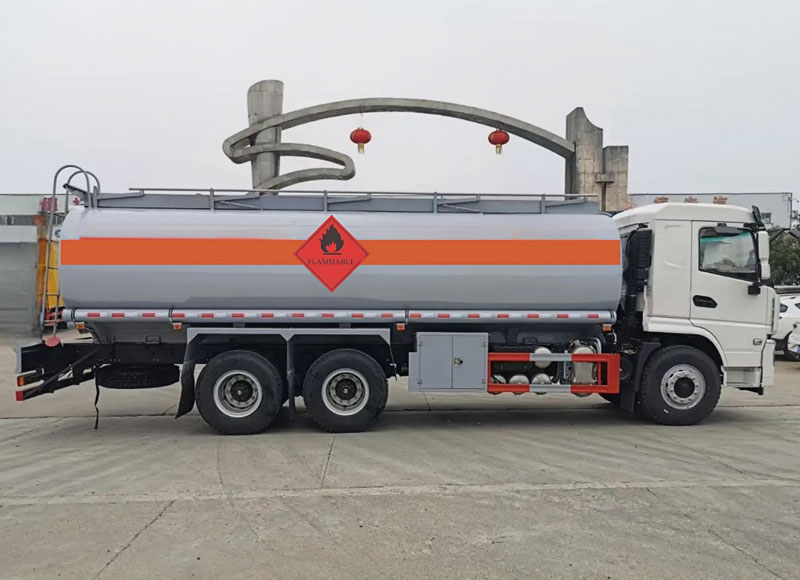

1. The vehicle adopts a Shacman chassis, paired with a Yuchai six-cylinder engine and a Fast 8JS series transmission supporting synchronized power take-off, meeting the transportation demands for medium-heavy-duty standard loads.
2. The tank body is made of Q235 carbon steel, undergoing processes like X-ray detection and sandblasting derusting to ensure long-term operational safety and durability.
3. The tank includes 2 European standard tank openings, one bottom valve, voice prompt alarm device, safety valve, breathing valve, and safety protection configurations to ensure the safety of the tank during transportation, loading, and unloading.
Chassis | |
| Brand | Shacman |
| Drive Type | 6x2,LHD/RHD |
| Gross Vehicle Weight(kg) | 25500 |
| Curb Weight(kg) | 10255 |
| Loading Weight(kg) | 15505 |
| Overall Dimension(mm) | 9950×2550×3500 |
| Tyre Qty. | 8 |
| Tyre Spec. | 295/80R22.5 18PR |
| Wheelbase（mm） | 1800+4300 |
| Front/Rear Overhang (mm) | 1450/2400 |
| Approach/Departure angle(°) | 23/11 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 80 |
| ABS | Yes |
| Transmission | 8-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | Yuchai |
| Model | YCS06245-60 |
| Power(kw) | 180 |
| Horsepower(HP) | 245 |
Upper Equipment | |
| Tank Capacity(cbm) | 20 |
| Tank Dimension(mm) | 7200×2250×1560 |
| Tank Material | Q235 carbon steel |
| Tank Compartment Qty. | Single-chamber |
| Tank Filling medium | Ethanol |
| Standard Components | 2× EU-standed tank ports; 1×Breathing valve; 1× bottom valve; 1×Voice prompt alarm system; 1×Tool kit; 2× hoses for liquid transfer; 2× fire extinguishers; 1× flame arrester; 1×Top guardrails; 1×Rear access ladder; |
| Other Services | Customized LOGO design as per customer needs! |
