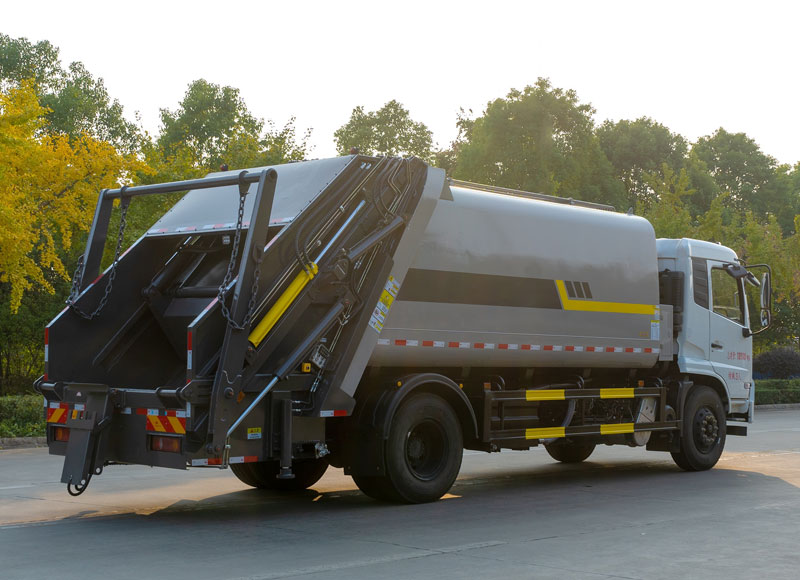

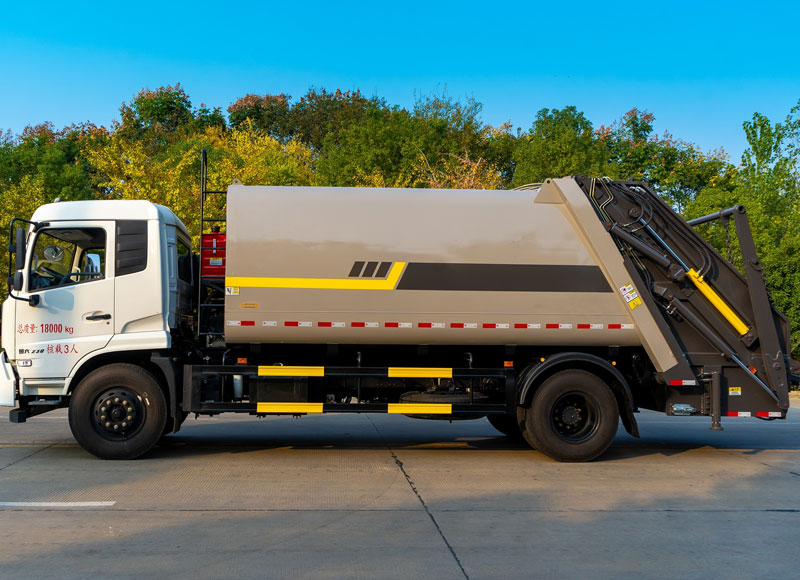

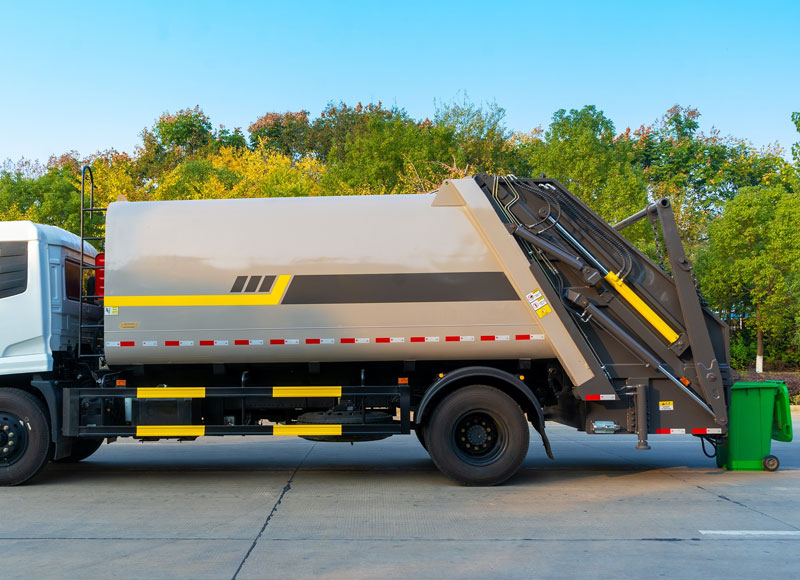

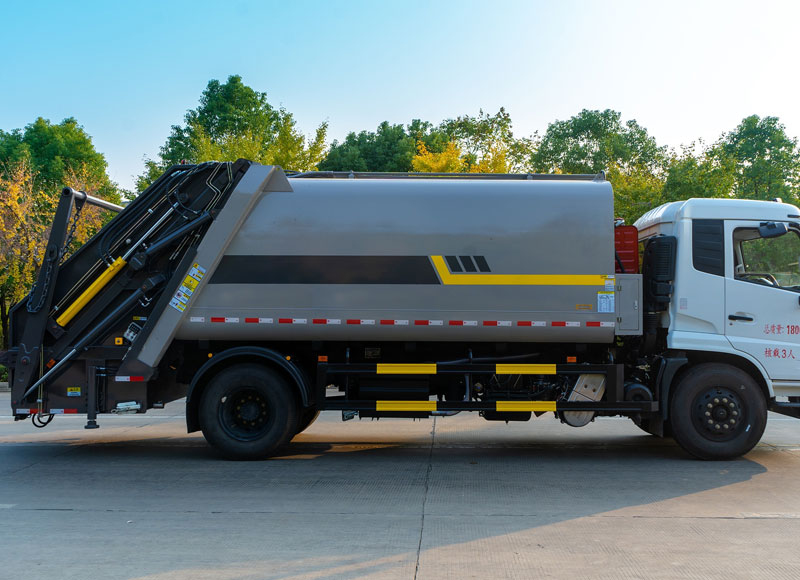

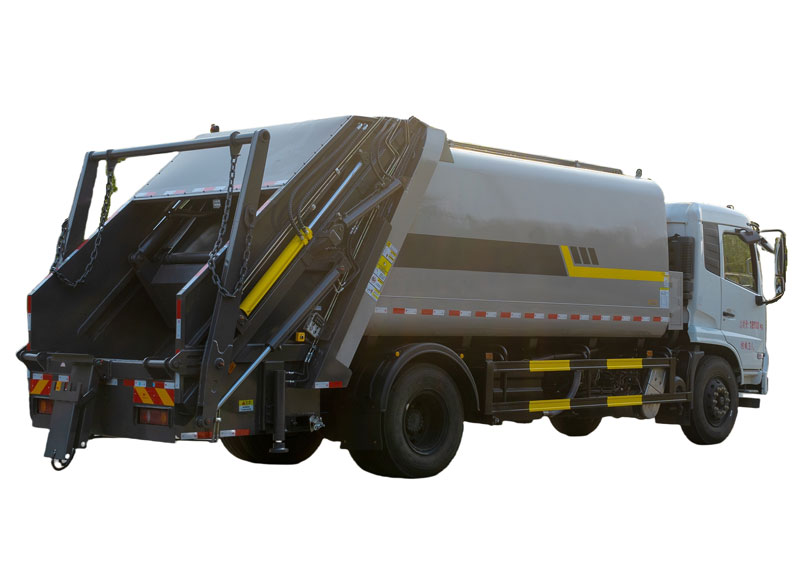

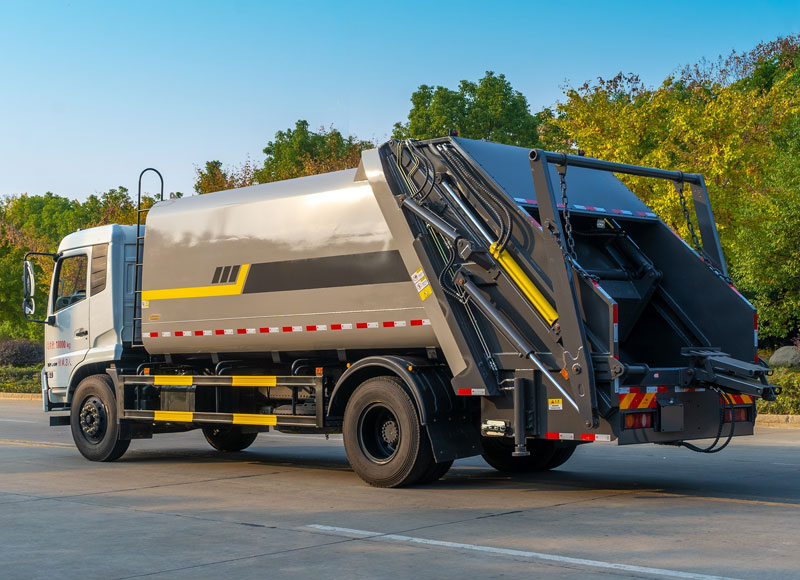

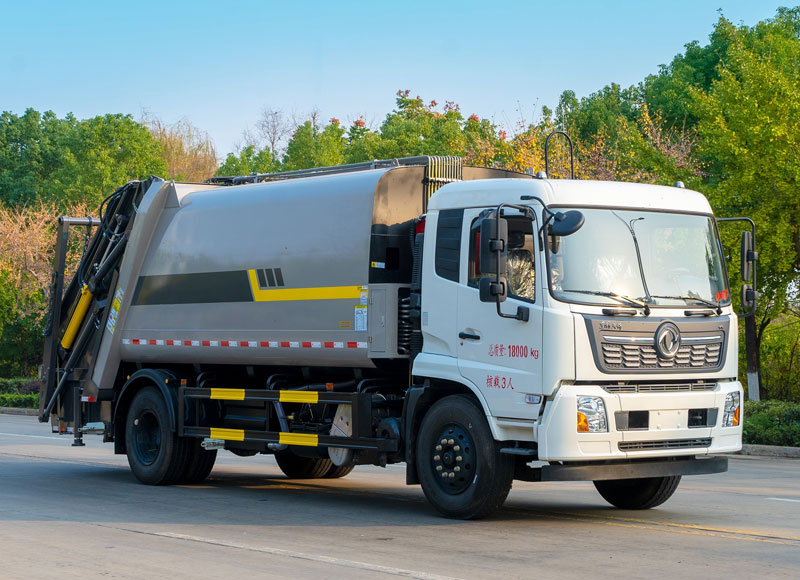

1. The 13m³ compression garbage truck adopts Foton chassis, equipped with Cummins 230 horsepower engine and 8-speed gearbox, with tail swing arm device, other tail devices are optional, and can be mounted with any form of garbage bin to ensure efficient and reliable garbage transportation.
2. Arc streamlined manganese steel box body formed by single rolling, weld-free and leak-proof. Excellent deformation resistance and corrosion resistance, effectively increases volume efficiency, extends service life, and reduces maintenance costs.
3. Imported CAN bus system supports triple operation modes (manual/automatic/semi-automatic), remote control + multi-position operation. Automatically adjusts engine power, achieving energy saving ≥15%.
4. External cylinder + bidirectional compression technology (compression ratio 1:2.5, single cycle ≤20S). Equipped with dual sewage tanks, night lighting, and drainage system. Integrates environmental protection, safety, and convenience.
Chassis | |
| Brand | Dongfeng |
| Drive Type | 4×2,RHD/LHD |
| Gross Vehicle Weight(kg) | 18000 |
| Curb Weight(kg) | 9420,9800,10289 |
| Loading Weight(kg) | 8450,8385,8070,8005,7516,7581 |
| Overall Dimension(mm) | 8040,8005,7855,7755×25,2550×3300,3400 |
| Tyre Qty. | 6 |
| Tyre Spec. | 6.50R16LT 10PR,195/75R16 10PR |
| Wheelbase（mm） | 3950,4500 |
| Front/Rear Overhang (mm) | 1260/2350,1260/2565,1260/2900,1260/2785,1260/2675 |
| Approach/Departure angle(°) | 19/12 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 105 |
| ABS | Yes |
| Transmission | 8-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | Cummins |
| Model | B6.2NS6B230 |
| Power(kw) | 169 |
| Horsepower(HP) | 230 |
Upper Equipment | |
| Waste Tank Capacity | 13CBM/13m³/13000Liters |
| Waste Tank Material | Manganese steel or Carbon steel |
| Feeding Cycle Time(s) | 12-20 |
| Compression Ratio | 1:2.5 |
| Unloading Time(s) | ≤25 |
| Operation Modes | Electrical control, manual, remote control |
| Sewage Collection Tanks | Two combined with diversion-type sewage collection device, effectively preventing leakage and avoiding secondary pollution |
| Tail Structure | Rear hanging bucket device or Tail triangular bucket device or large-scale landing hopper device or Tail swing arm device |
| Other Services | Customized LOGO design as per customer needs! |
