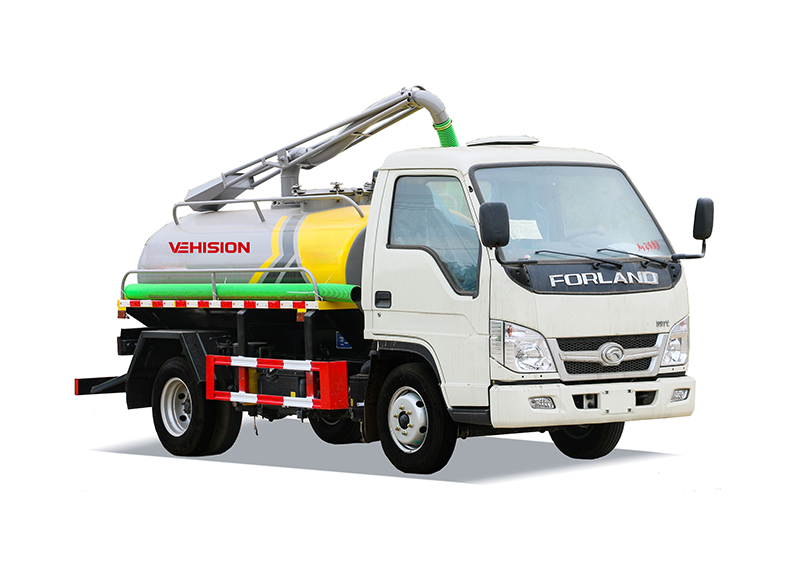

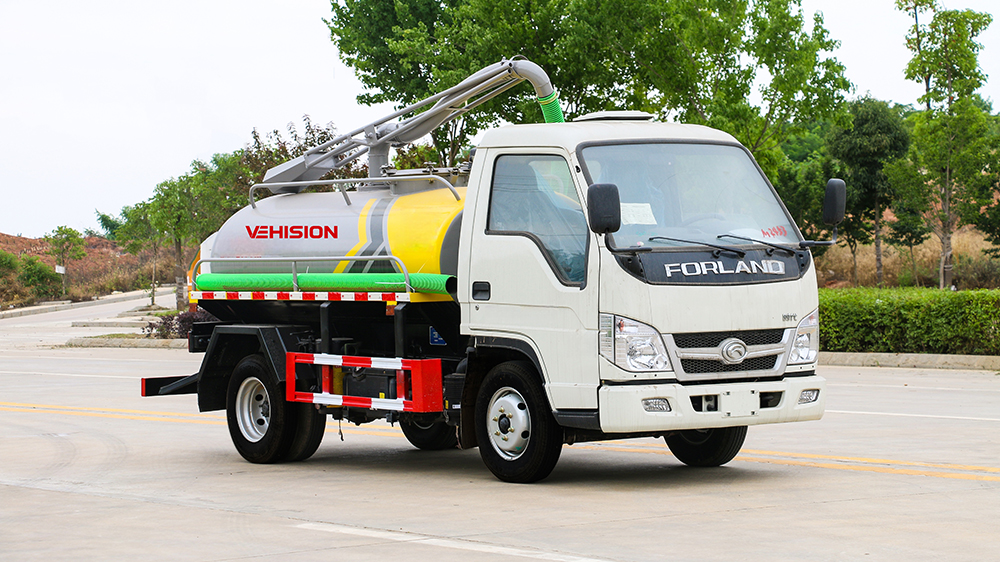

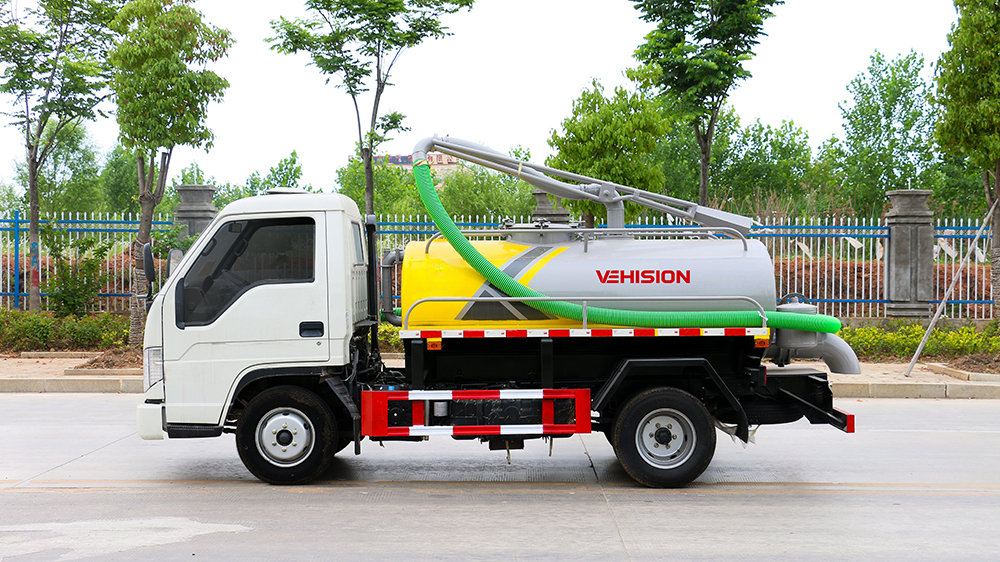

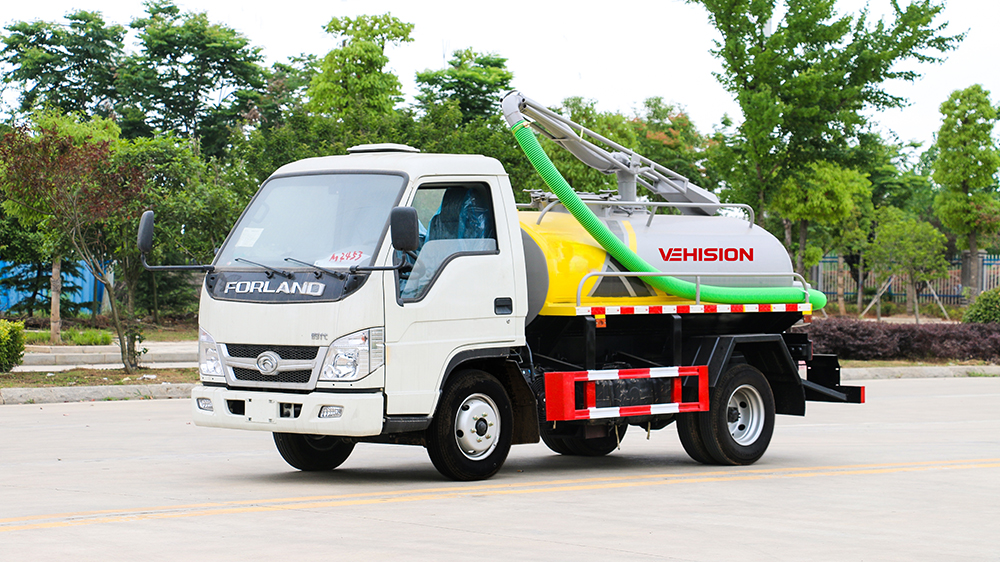

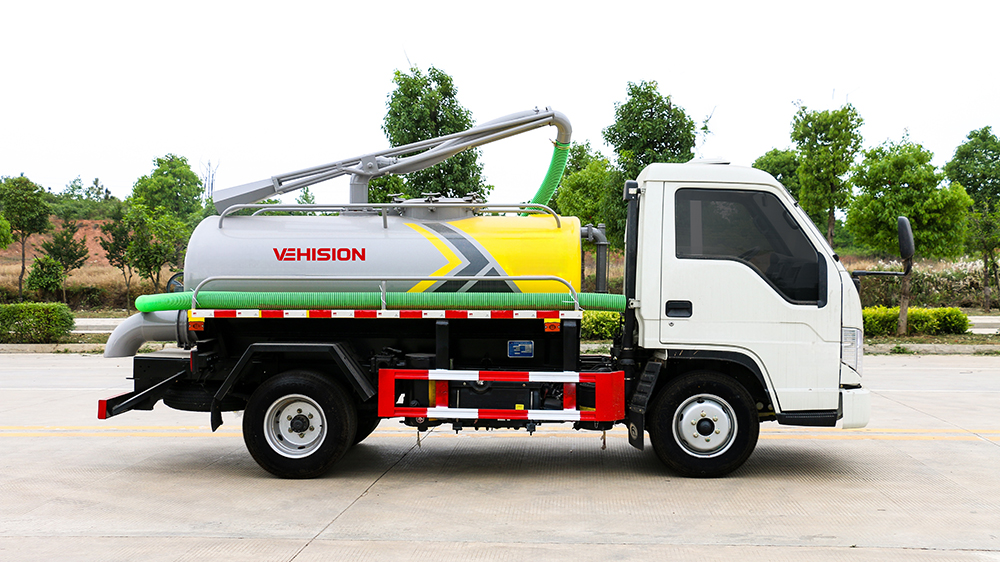

1.Equipped with a Foton chassis (4×2 drive) and a Quanchai 110-horsepower engine adaptable to complex working environments.
2.360-degree rotating crane base and suction hose walkway box optimize pipe storage and operational flexibility.
3.The vacuum pump system quickly extracts sewage based on negative pressure principle, paired with a water-gas separator and an oil-water separator to ensure efficient gas-liquid separation;
4.The front head of the tank is equipped with a visible observation pipe for real-time liquid level monitoring, and the bottom features a gravity cleaning port for efficient sewage discharge and cleaning;
5.Utilizing siphon principle and vacuum technology, it is compatible with suction of feces, sludge, and liquids containing suspended solids, suitable for cleaning septic tanks and sewers, with the capability for emergency environmental pollution treatment.
| Chassis | |
| Brand | Foton |
| Drive Type | Left hand drive/4×2 |
| Gross Vehicle Weight(kg) | 4495 |
| Curb Weight(kg) | 2595 |
| Loading Weight(kg) | 1770 |
| Overall Dimension(mm) | 5250×1900×2500,2150,2250 |
| Tyre Qty. | 6 |
| Tyre Spec. | 6.00R15 10PR,6.00R15LT 10PR,185R14LT 8PR |
| Wheelbase（mm） | 2850 |
| Front/Rear Overhang (mm) | 1115/1285 |
| Approach/Departure angle(°) | 18/18 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 110 |
| ABS | Yes |
| Transmission | 5-Speed |
| Cab | 2 person |
| Engine(Other Engines Optional) | |
| Brand | Quanchai |
| Model | Q23A-110C60 |
| Power(kw) | 80 |
| Horsepower(HP) | 110 |
| Upper Equipment | |
| Tank Capacity | 2.5m³/2.5CBM/2.5Ton/2500L |
| Tank Overall Dimension(mm) | 2598×1380×970 |
| Tank Material | Optional with carbon/stainless steel alloy |
| Tank Thickness | Wall thickness 6mm |
| Fecual Suction Port | Equipped with one DN200 butterfly valve to ensure flow control and sealing performance. |
| Suction Pipe for Fecual | Standard 8-meter high-strength hose to meet long-distance operation needs. |

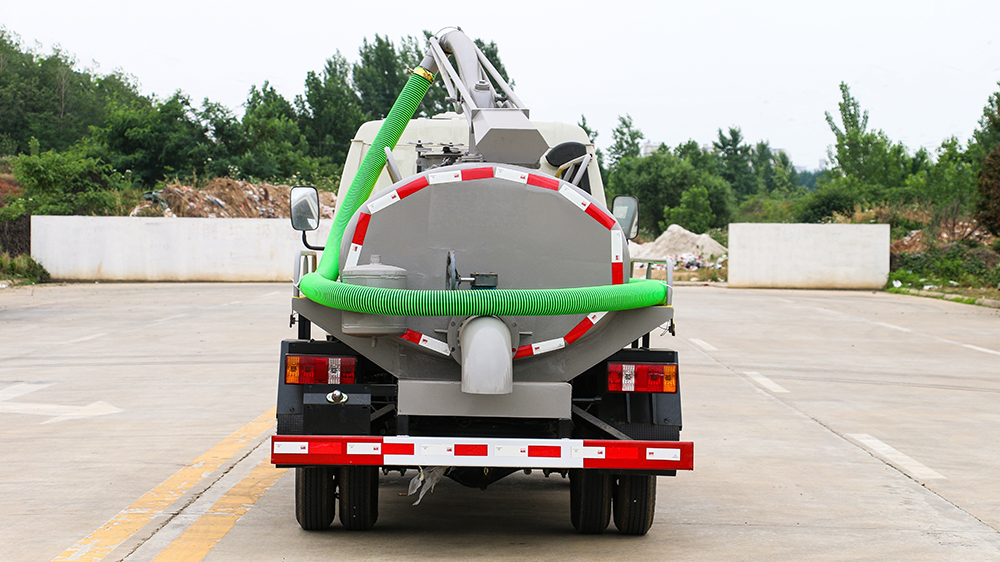

| Rear Fecual Discharge Outlet | Designed with an 8-inch large-caliber opening to enhance discharge efficiency. |
| Fecual Inspection Pipe | Transparent and thickened design for real-time monitoring of tank liquid levels and status. |
| Anti-Overflow Valve | Prevents liquid backflow after tank overfilling, protecting the vacuum pump system. |
| Water-Oil Separator | Separates oil and water to extend the service life of the equipment. |
| Hand-Washing Device | Integrated on the side of the tank for convenient cleaning after operations. |
| Rotating Crane Base | 360-degree rotation, supports flexible adjustment of the suction hose angle to adapt to complex working scenarios. |
| Oil Pump | 3-ton high-power system ensuring efficient suction and stable pressure |
| Other Services | Customized LOGO design as per customer needs! |
