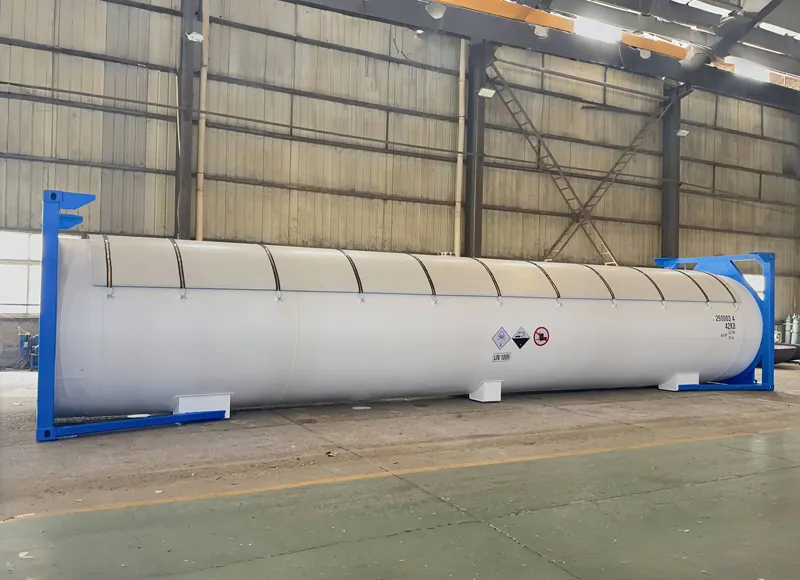

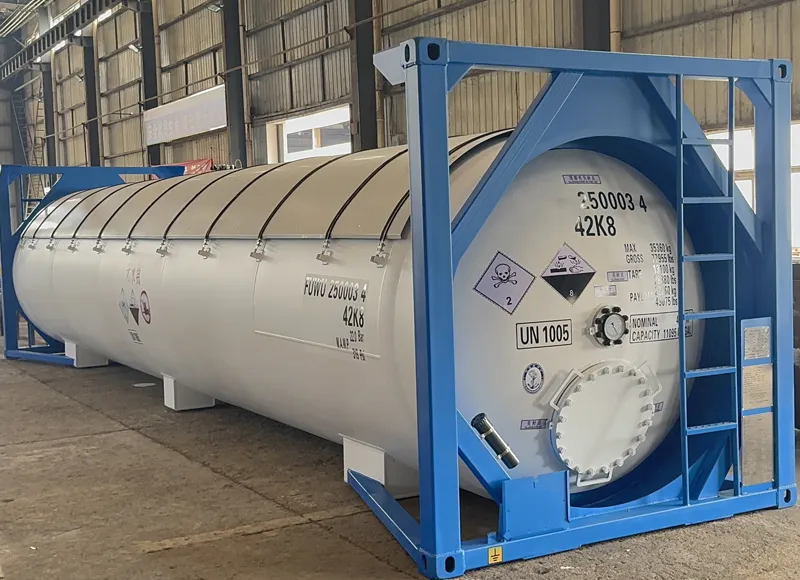

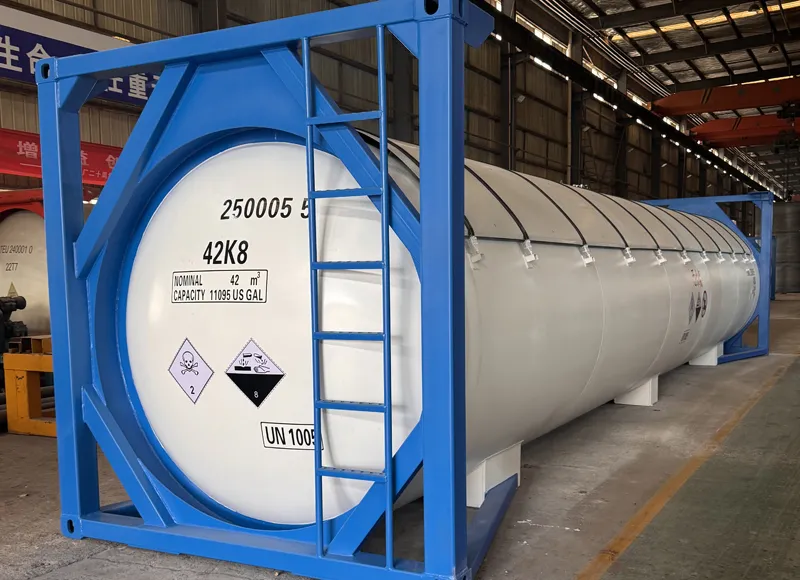

1.40ft liquid ammonia container, built to standard ISO dimensions for universal compatibility.
2.Tank material is 16MnDR, with optional alternatives including Q345R, Q370R, or SA516.
3.The LPG storage tank is equipped with comprehensive safety accessories, including flange manhole, pressure gauge, thermometer, safety valve, and level gauge.

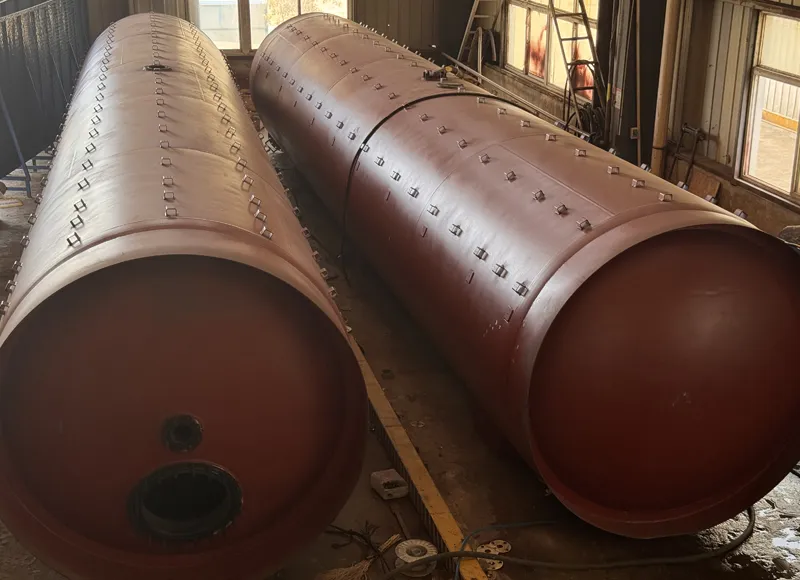

4.The tank has undergone MT, UT, and RT nondestructive testing, heat treatment, hydrostatic and pneumatic pressure tests; on-site inspection was performed by the Technical Supervision Bureau, and the pressure vessel inspection certificate has been issued. External derusting and painting have also been completed.

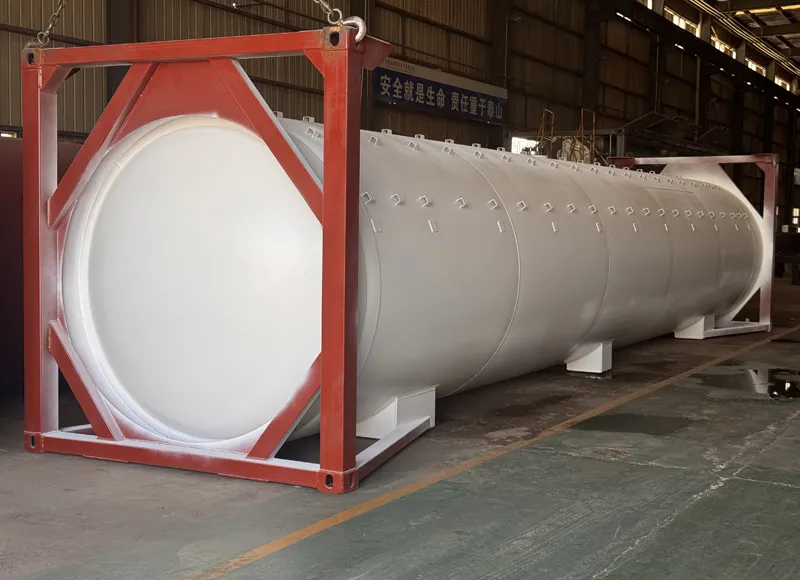

5.The frame is made of rectangular structural steel, offering a lightweight yet high-strength design, suitable for transporting various liquid goods via sea, road, and rail.
| Specification | |
| Container Type | 1AA |
| Container Code | 42K8 |
| Filling Medium | Liquid/Anhydrous Ammonia |
| Medium Code | UN1005 |
| Tank Dimension(mm) | 12192×2438×2591 |
| Tank Weight(kg) | 13500 |
| Filling Weight(kg) | 22260 |
| Maximum Stacking Weight(kg) | 213360 |
| Tank Capacity | 42CMB/42m³/42000 liter/42cubic meter |
| Tank Material | 16MnDR |
| Tank Thickness(mm) | 16 |
| Head Thickness(mm) | 18 |
| Nondestructive Testing | 100% RT, 100% MT,100% UT |
| Designed Pressure(MPa) | 2.2 |
| Working Pressure(MPa) | ≤ 2.2 |
| Hydrostatic Test Pressure (MPa) | 2.2 |
| Working Temperature(℃) | -40 ~ 55 |
| Corrosion Allowance(mm) | 1 |
| Medium Density(kg/m³) | 420-590 |
| Production standards | GB,National Standard of China |

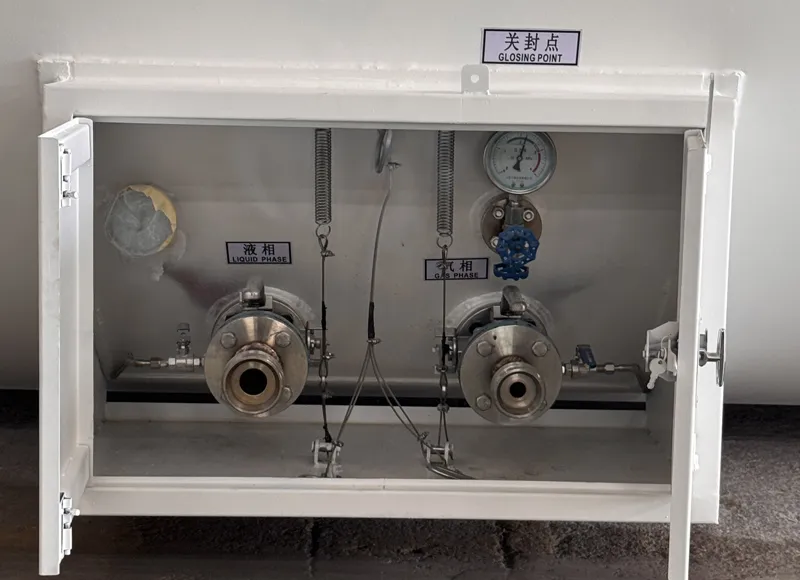

| Standard Fittings | Safety valve, manhole, thermometer, pressure gauge, liquid inlet, gas inlet, level gauge |
| Other Services | Customized LOGO design as per customer needs! |
