1. High-load-capacity chassis with Cummins engine, WLY 6-speed transmission, 19.5-inch tubeless tires, front 2.7-ton/rear 5.5-ton axles, equipped with run-flat emergency device.

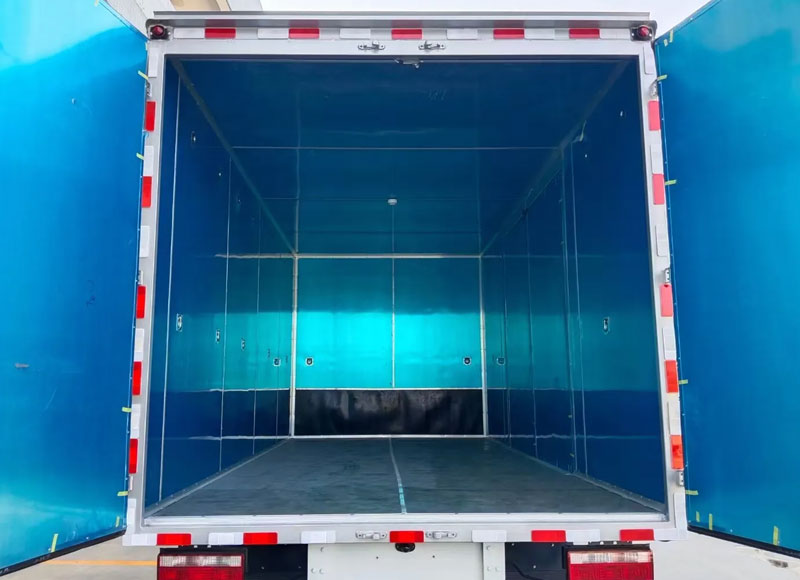

2. Body constructed with cold-rolled steel plate featuring electrostatic shielding layer, aluminum interior lining, flame-retardant and moisture-proof sandwich structure. Anti-static rubber sheets installed on floor and front collision-resistant area for enhanced fire/water resistance.
3. Multi-level safety system: anti-theft alarm, fire-resistant smoke alarm, fire extinguisher brackets, anti-static belt, outline marker lights, and white reflective warning body color.

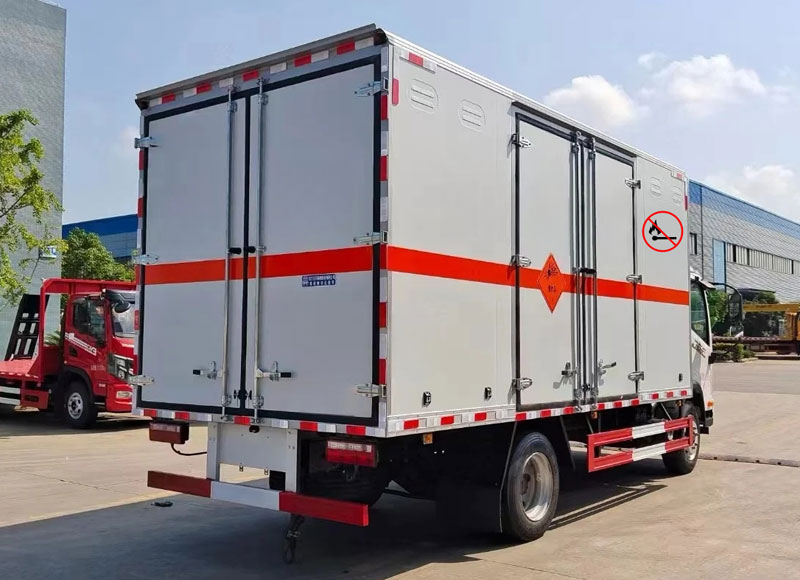

4. Modular loading configuration: fixing rings for versatile cargo, right-side double-opening door + rear double-opening door design enhances loading/unloading efficiency, flame-resistant monitoring system covering entire space.
Chassis | |
| Brand | FAW |
| Drive Type | 4x2,LHD/RHD |
| Gross Vehicle Weight(kg) | 11950 |
| Curb Weight(kg) | 5180 |
| Load Weight(kg) | 7055 |
| Overall Dimension(mm) | 7150,7100,7050×2500,2450,2400×3485,3350,3285 |
| Van Dimension(mm) | 5200,5150×2350,2300,2250 ×2200,2000,1800 |
| Tyre Qty. | 6 |
| Tyre Spec. | 245/70R19.5 16PR |
| Wheelbase（mm） | 3800 |
| Front/Rear Overhang (mm) | 1130/2220,1170/2180,1130/2170,1170/2080 |
| Approach/Departure Angle(°) | 24.5/10 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 80 |
| ABS | Included |
| FCWS | Included |
| LDWS | Included |
| Transmission | 6-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 2-3 persons,Air Conditioning, Power Windows, Central Locking |
Engine (Other Engine Optional) | |
| Brand | Cummins |
| Model | D4.0NS6B185 |
| Power(kw) | 136 |
| Horsepower(HP) | 185 |
Upper & Equipment | |
| Filling Medium | Flammable gas, non-flammable and non-toxic gas |
| Van Color | White |
| Standard Configurations | 1. The body adopts a cold-rolled steel plate with electrostatic shielding effect, filled with flame-retardant and moisture-proof materials in the middle, lined with aluminum panels inside, and equipped with fixing rings for cargo. 2. Anti-static rubber sheets are laid on the floor, a fire-resistant smoke alarm is installed on the top, and anti-collision/anti-static rubber sheets are mounted on the front. 3. The rear door is a double-opening type; the right side has a double-opening door (single-opening optional),with a theft alarm installed on the door. Optional hydraulic tail lift is available. 4. Outline marker lights and fire extinguisher brackets are installed externally, including 2 fire extinguishers and 1 electrostatic belt. |
| Remarks | Customized LOGO design as per customer needs! |
