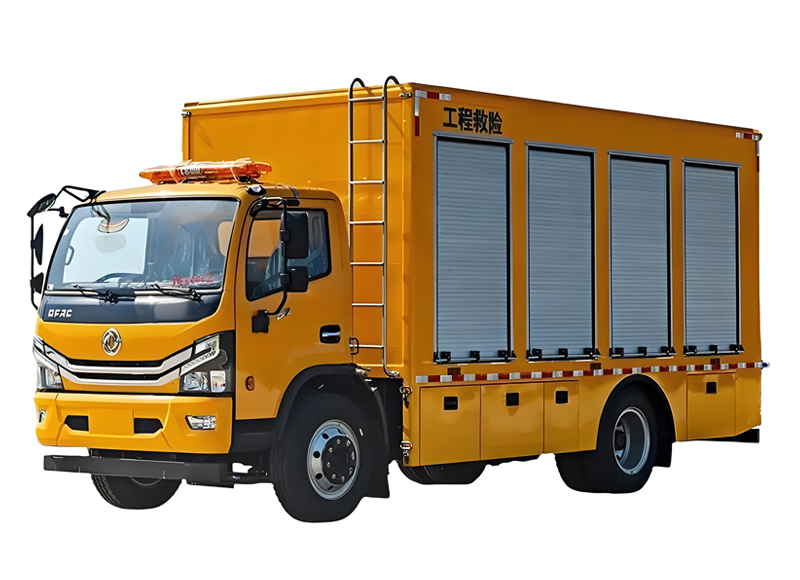

1. Dongfeng Tianjin chassis is equipped with a Cummins 230-horsepower engine and an 8-speed gearbox. The maximum gross weight is 18 tons, and the wheelbase is 4700mm (extendable to 5800mm), balancing power output and heavy-duty transport compliance.

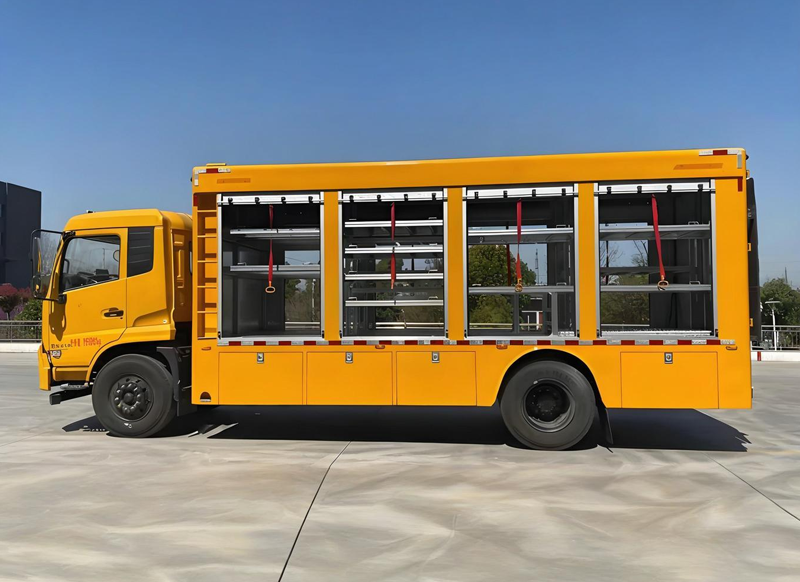

2. Customized rectangular compartment adopts anti-torsion steel frame and cold-rolled plate welded skin. Internal aluminum alloy partition structure improves space utilization. A 1.5-ton hydraulic lifting platform is installed at the rear to accommodate heavy equipment loading and unloading needs.

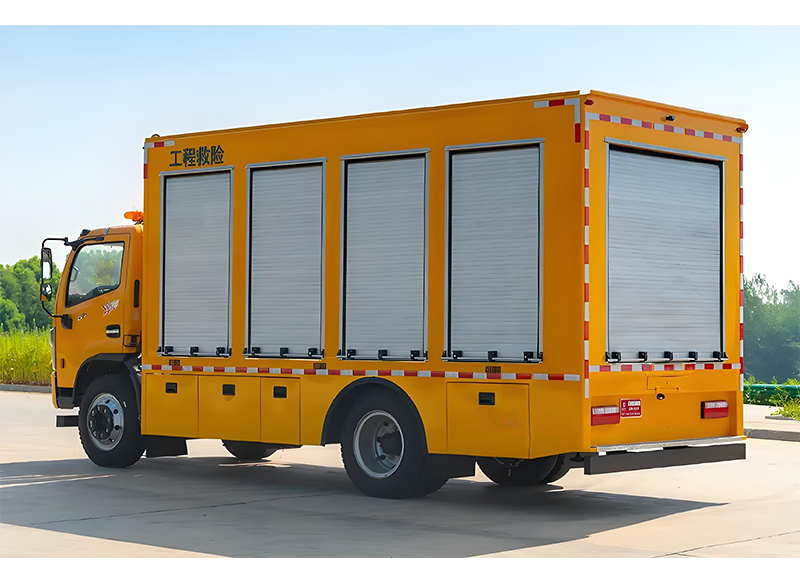

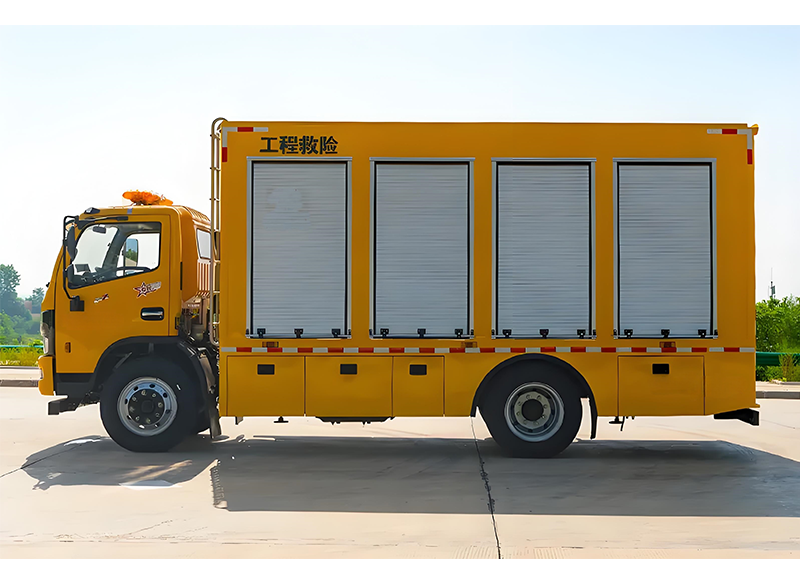

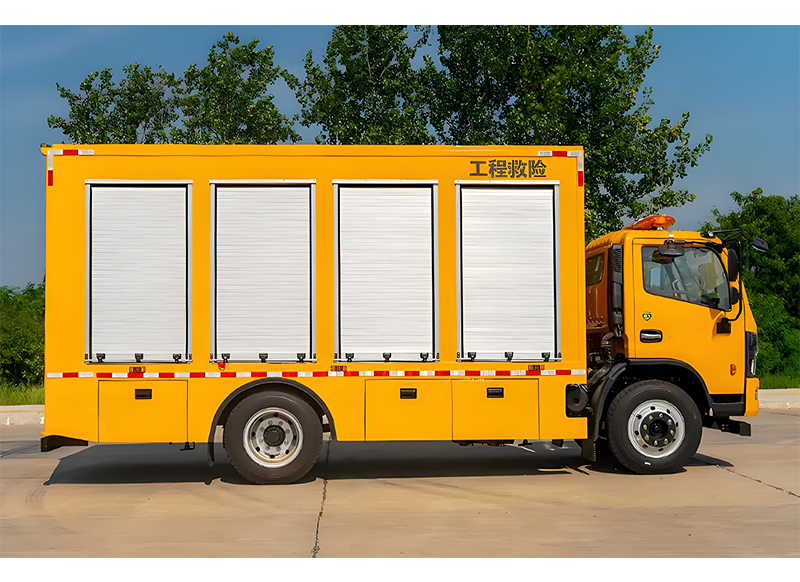

3. Lightweight aluminum alloy rolling shutter doors are installed on both sides of the compartment, combined with a non-slip 500mm ground clearance design. Strobe warning lights are integrated on the top of the cab and both sides of the vehicle body, enhancing operational warnings and nighttime visibility.
4. Capable of carrying engineering equipment, rescue tools, stabilization equipment, demolition equipment, lighting equipment, and other rescue auxiliary devices, it is widely applicable to emergency fire brigades, public security & medical services, industrial and mining enterprises, communities, docks, and other locations.
| Dongfeng Equipment Transport Truck | |
| Chassis | |
| Brand | Dongfeng |
| Drive Type | Left hand drive/4x2 |
| Gross Vehicle Weight(kg) | 18000 |
| Curb Weight(kg) | 8170 |
| Load Weight(kg) | 9700 |
| Overall Dimension(mm) | 8580×2480×3250 |
| Tyre Qty. | 6 |
| Tyre Spec. | 10.00R20 18PR |
| Wheelbase（mm） | 4700 |
| Front/Rear Overhang (mm) | 1400/2480 |
| Approach/Departure angle(°) | 17/12 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 89 |
| ABS | Included |
| Gearbox | 8-speed |
| Cab | 2-3 person |
| Engine (Other Engine Optional) | |
| Brand | Cummins |
| Model | B6.2NS6B230 |
| Power(kw) | 169 |
| Horsepower(HP) | 230 |
| Upper & Equipment | |
| Compartment | Rectangular compartment with anti-torsion design. The equipment cabin adopts an aluminum alloy profile joint structure. The rear is equipped with a hydraulic lifting platform with a load capacity of 1.5 tons. The frame is made of high-quality steel, and the panel adopts a cold-rolled plate welded structure. |
| Doors | Aluminum alloy rolling shutter doors are installed on both the left and right sides of the equipment cabin |
| Warning Lights | Strobe warning light installed on the front top of the cab. |
| Marking Lamps | Strobe lights installed on the upper sides of the vehicle; Safety marking lights installed on the lower sides |
| Siren | The circuits for the siren, warning lights, and strobe lights are separate additional circuits, and the control components are installed in the cab. |

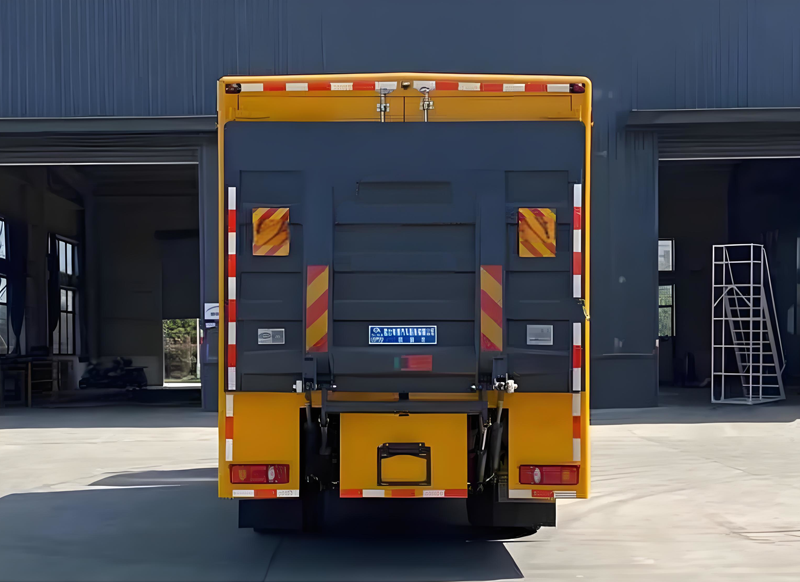

| Hydraulic Tailgate | KAIZHUOLI 1T foldable hydraulic tailgate |
| Reversing Camera | Visible reversing camera with 7-inch display screen |
| Firefighting | Two handheld dry powder fire extinguishers. |
| Interior Lighting | LED lighting inside the compartment. |
| Remarks | Customized LOGO design as per customer needs! |
