1. Compared to conventional hook-lift garbage trucks, the compactor semi-trailer has a larger compression ratio, with a single tractor head capable of matching 2-4 semi-trailers and a payload capacity of up to 26-29 tons.
2. Unlike fixed compression stations, the compactor semi-trailer requires no civil construction, is easy to relocate, and is an ideal choice for waste transfer stations, offering flexible operation at various locations.
3. The system is equipped with CAN electrical control, one-button unloading, and advanced features such as dust, vibration, and water resistance, along with a beeper to prevent damage caused by forgetting to turn off the PTO.
4. The compactor semi-trailer is equipped with an efficient hydraulic oil cooler, ensuring stable operation even in the event of a power outage, offering long-distance transport advantages, higher profits, and shorter working hours.
Upper Equipment | |
| Gross Vehicle Weight(kg) | 40000 |
| Curb Weight(kg) | 18200,17700,17000 |
| Loading Weight(kg) | 21800,22300,23000 |
| Overall Dimension(mm) | 6290+1310+1310 |
| Tyre Qty. | 12 |
| Tyre Spec. | 12R22.5.12PR |
| Wheelbase（mm） | 1800+3800+1350 |
| Front/Rear Overhang (mm) | -/3090 |
| Approach/Departure angle(°) | -/10 |
| Waste Tank Capacity | 47CBM/47m³/47000Liters |
| Waste Tank Material | Manganese steel or Carbon steel |
| Operation Modes | Electrical control, manual, remote control |

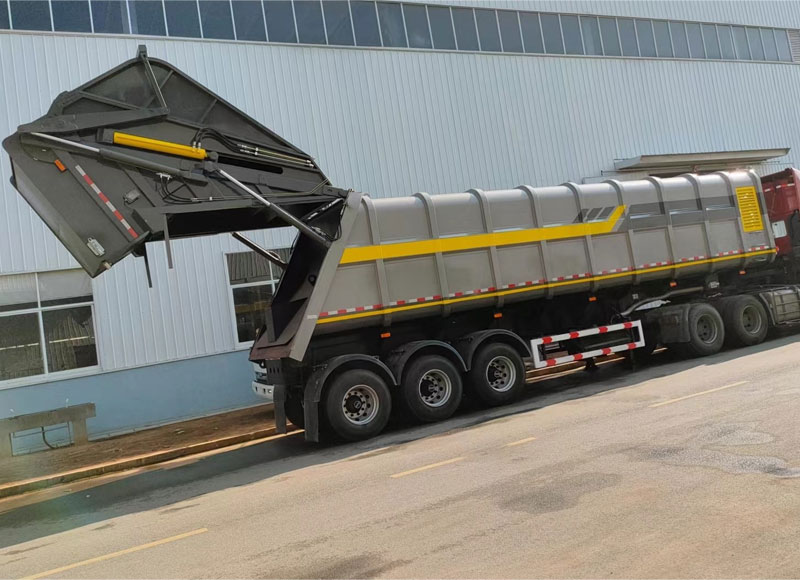

| Tail Structure | Large-scale landing hopper device ,it can collect more garbage at one time, and can completely seal the rear hopper of the compacted garbage truck after it is turned up.Seals the rear hopper of the compacted garbage truck for a completely sealed fit. |
| Other Services | Customized LOGO design as per customer needs! |
