1.Utilizes a weld-free modular assembly process, enabling full vehicle rollout in just 90 minutes across 14 production steps, significantly improving manufacturing efficiency.

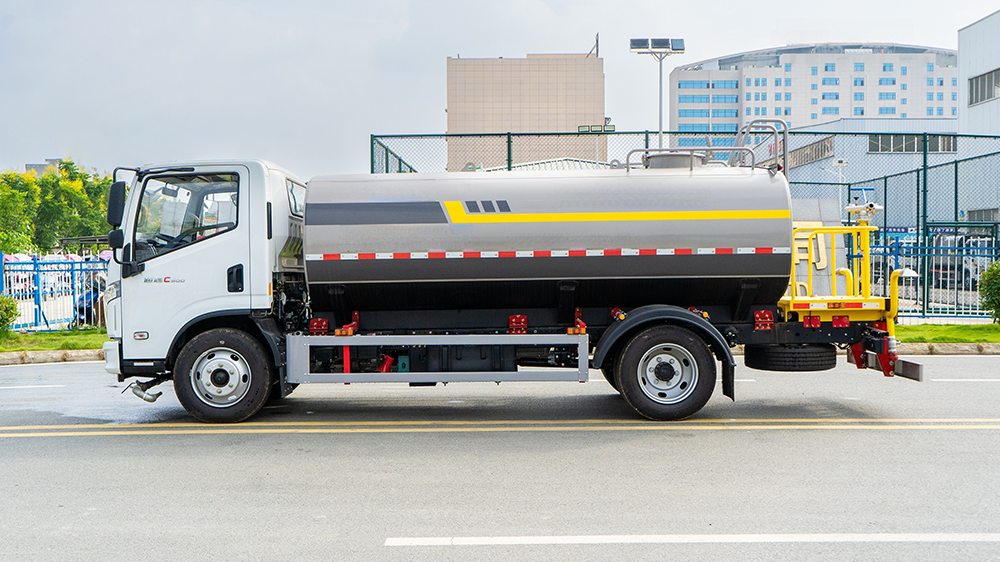

2.The tank is bolted to the subframe using a dual-support structure, enhanced with anti-surge baffles and frost-resistant drainage outlets, ensuring operational and driving safety.

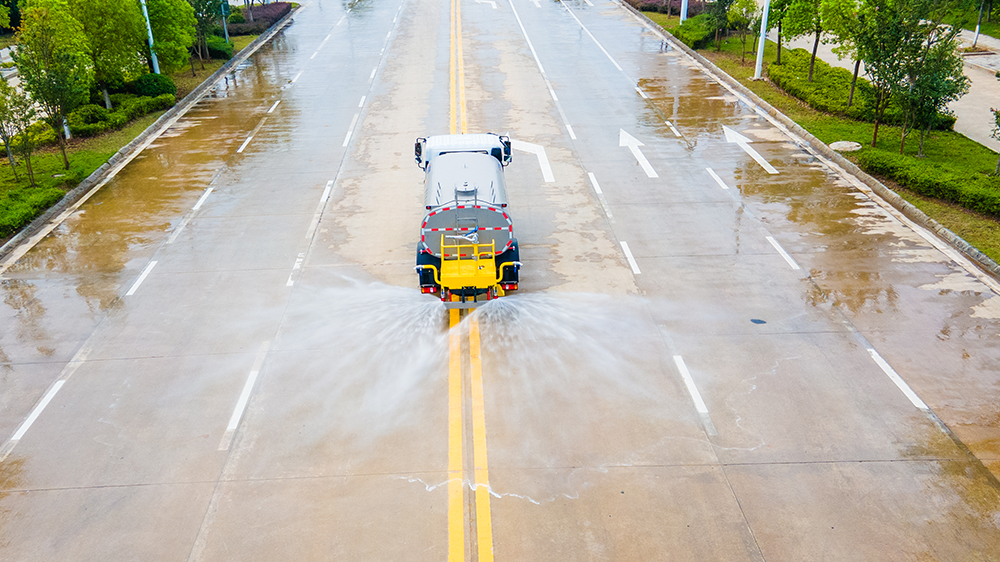

3.Equipped with a custom high-power water pump and 89mm high-flow pipelines, the front flush covers up to 8 lanes, while the cannon reaches up to 40 meters, setting an industry-leading efficiency benchmark.

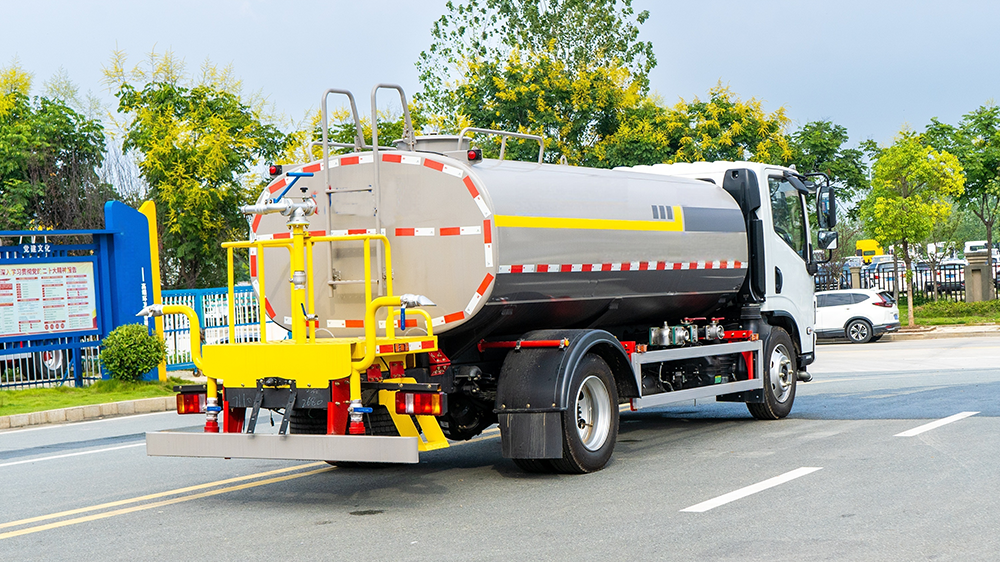

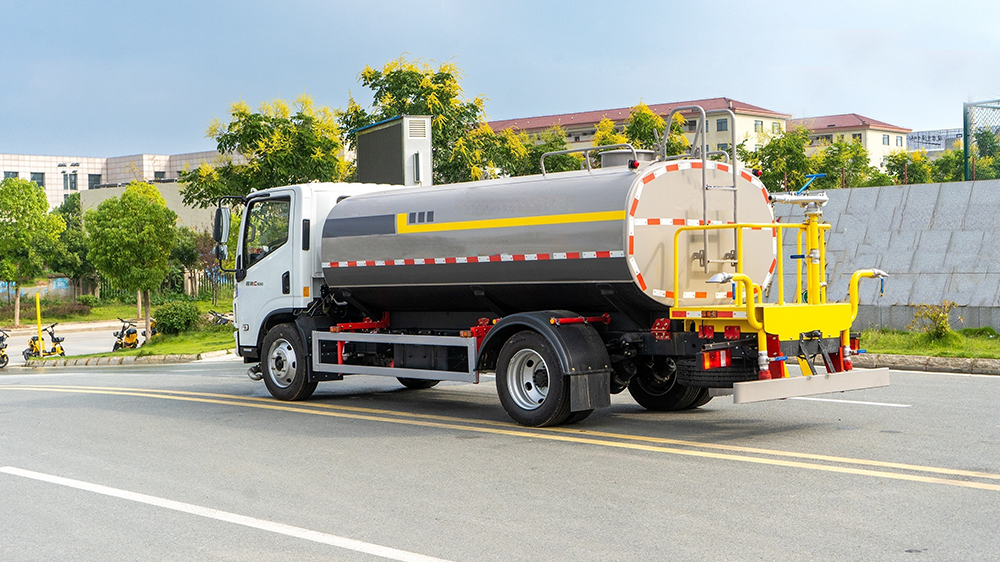

4.Integrates front flushing, rear sprinkling, high-pressure water cannon (35m direct stream / 15m mist spray), and firefighting interface, suitable for road cleaning, landscaping irrigation, and emergency firefighting.
5.Features a dual-layer coating process with electrophoresis and powder spraying, reaching a coating thickness of 300μm, providing excellent corrosion and wear resistance, greatly extending the equipment’s service life.
| Chassis | |

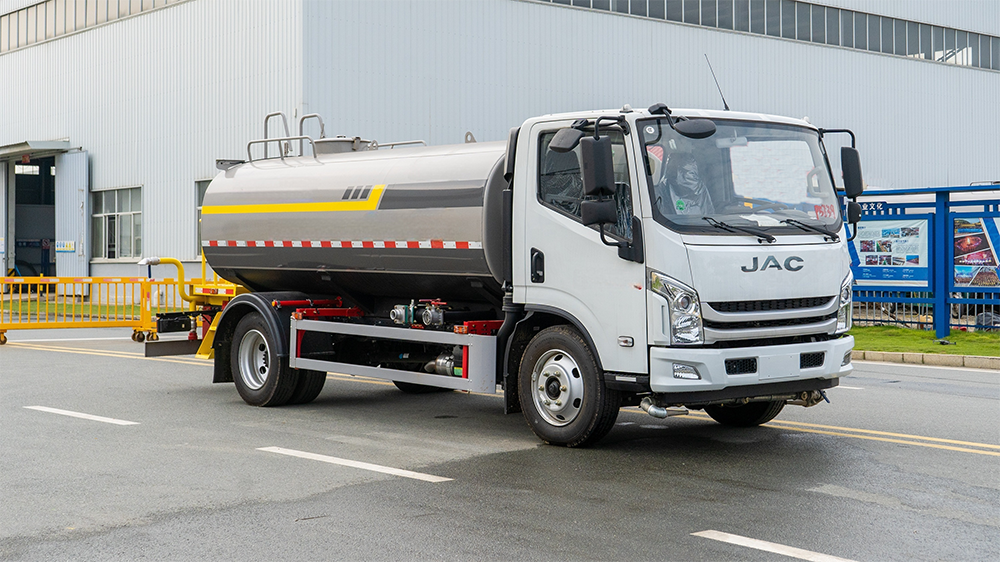

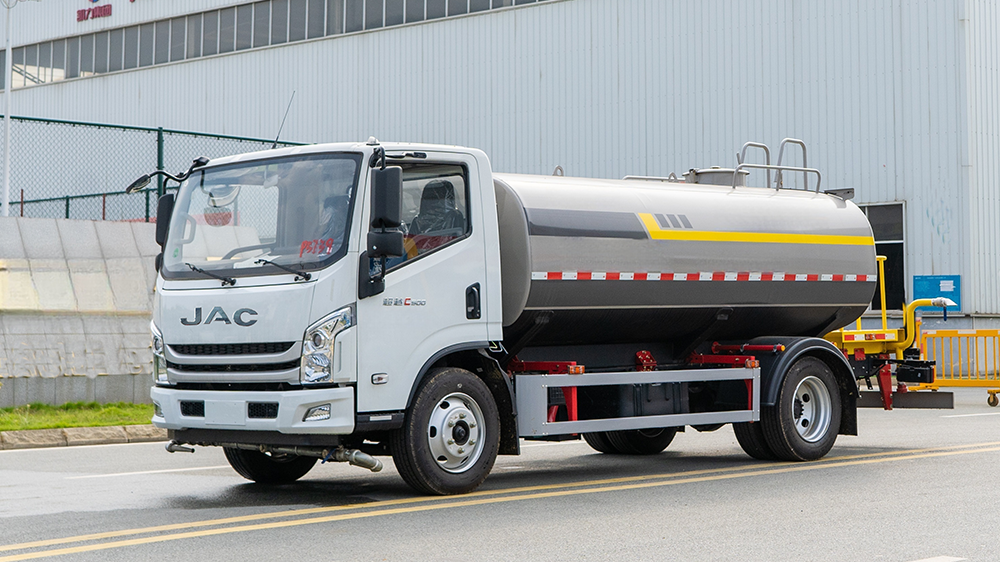

| Brand | JAC |
| Drive Type | Left hand drive/4×2 |
| Gross Vehicle Weight(kg) | 18000 |
| Curb Weight(kg) | 6800 |
| Loading Weight(kg) | 11005 |
| Overall Dimension(mm) | 8360,7860,8860×2550,2500×3280,3330,3400 |
| Tyre Qty. | 6 |
| Tyre Spec. | 10.00R20 18PR,11R22.5 18PR |
| Wheelbase（mm） | 4500 |
| Front/Rear Overhang (mm) | 1290/2570,1290/2070 |
| Approach/Departure angle(°) | 19/10 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 89 |
| ABS | Yes |
| Transmission | 6-Speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 2-3 person |
| Engine(Other Engines Optional) | |
| Brand | Yuchai |
| Model | YCS04220-61A |
| Power(kw) | 162 |
| Horsepower(HP) | 220 |
| Upper Equipment | |

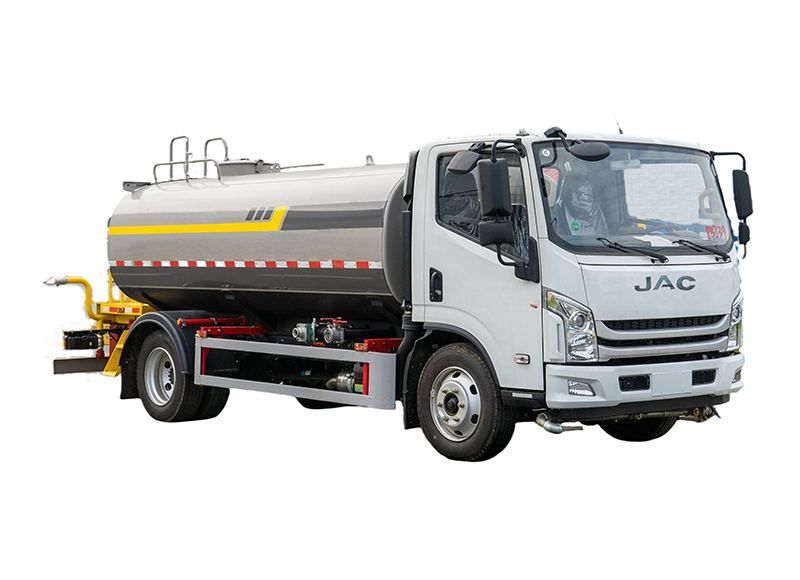

| Tank Capacity | 15 m³/15CBM/15 Ton |
| Tank Overall Dimension(mm) | 4600×2400×1600 |
| Tank Material | Optional with carbon/stainless steel alloy |
| Tank Thickness(mm) | 4 |
| Front Spraying Width | 15-30m/15-30 meters |
| Rear Platform Water Cannon | Dust suppression range 30–40 meters, 360° adjustable; Supports adjustable spray patterns, including jet stream, rainfall, and mist modes. Maximum range in direct jet mode: ≥35 meters Maximum range in mist mode: ≥15 meters |
| Dedicated Sprinkler Pump | High-power water pump with 6-meter vertical suction capability |
| Standard Functional Configuration | 1.Front flushing, rear sprinkling, side spraying; 2.Rear-mounted working platform equipped with a high-pressure water cannon (360° rotatable); 3.Branded power take-off (PTO) unit 4.Debris filter screen 5.One set of gravity flow ball valve system (supports self-priming and self-draining, maximum suction depth: 7 meters) 6.Includes two reinforced water suction hoses with steel wire lining |
| Other Services | Customized LOGO design as per customer needs! |
