1. Adopts Sitrak chassis, MC07.25-60 high-torque engine, delivering superior power.
2. Equipped with HOWO HW95508STC gearbox + HW45ZC flange-mounted PTO (Power Take-Off), featuring precise shifting and high transmission efficiency.
3. Tank capacity 24,300L, aluminum alloy material. The tank undergoes NDT (Non-Destructive Testing) process, sandblasting, and baking paint finish for enhanced safety and durability.
4. Standard components: Pump with overflow valve; single compartment; two EU-standard tank ports; one bottom valve; voice prompt alarm system; integrated bottom loading system + vapor recovery system; full vehicle lightweight design.
5. Optional installations: Flow meter; fuel dispenser; hose reel; and fuel nozzle.
| Chassis | |
| Brand | Sitrak |
| Drive Type | Left hand drive/6x2 |
| Gross Vehicle Weight(kg) | 26000 |
| Curb Weight(kg) | 8850 |
| Loading Weight(kg) | 16455, 16520 |
| Overall Dimension(mm) | 10100×2540×3600 |
| Tyre Qty. | 8 |
| Tyre Spec. | 295/80R22.5 18PR |
| Wheelbase（mm） | 1800+4400 |
| Front/Rear Overhang (mm) | 1450/2450 |
| Front/Rear axle loading weight(kg) | 7000/7000/11500 |
| Approach/Departure angle(°) | 16/10 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 80 |
| ABS | Yes |
| Transmission | 6-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
| Engine(Other Engines Optional) | |
| Brand | Sinotruk |
| Model | MC07.25-60 |
| Power(kw) | 188 |
| Horsepower(HP) | 255 |
| Upper Equipment | |
| Fuel Tank Capacity(cbm) | 24.3 |
| Fuel Tank Dimension(mm) | 7200×2480×1720mm |
| Fuel Tank Material | Aluminium alloy |
| Fuel Tank Compartment Qty. | Single-chamber |
| Fuel Tank Filling medium | Gasoline |
| Standard Components | 1×Pump with overflow valve; 2× EU-standard tank ports; 1× Bottom valve; Voice prompt alarm system; 1×Complete bottom loading system; 1×Toolbox; 2× Fire extinguishers. 1×Rear access ladder; 2× Oil pipelines Safety guardrail; |
| Optional Components | Flow meter, high-flow fuel dispenser, 15-meter auto-rewind hose reel and fuel nozzle |
| Other Services | Customized LOGO design as per customer needs! |

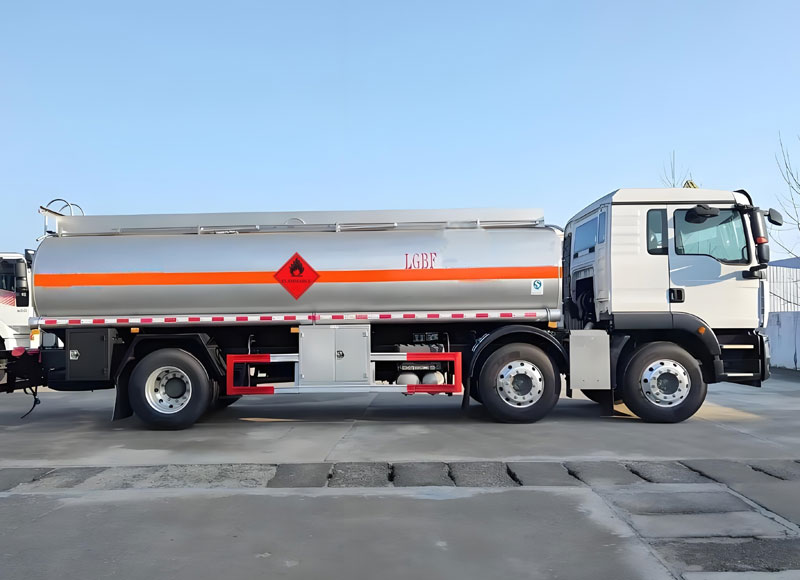

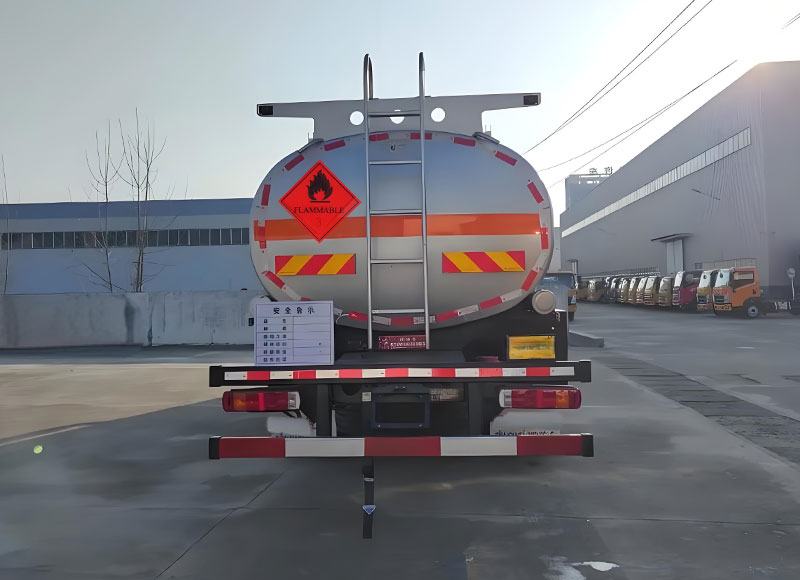

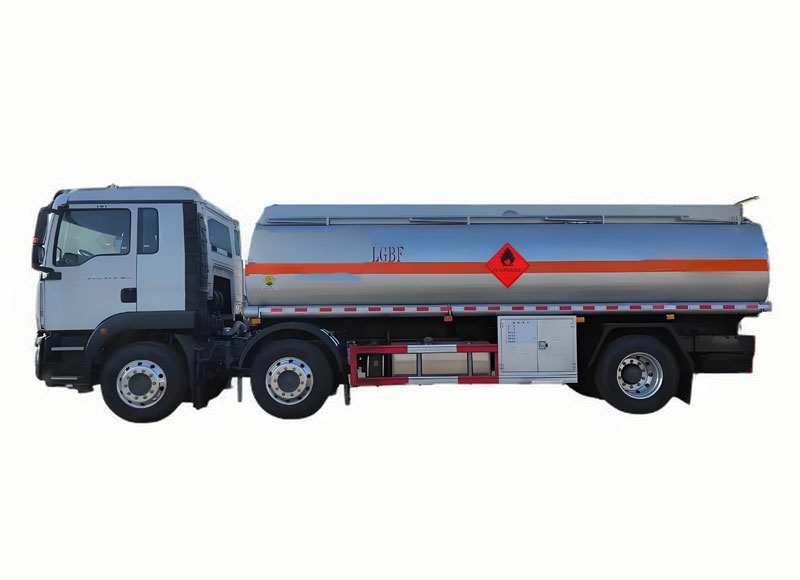

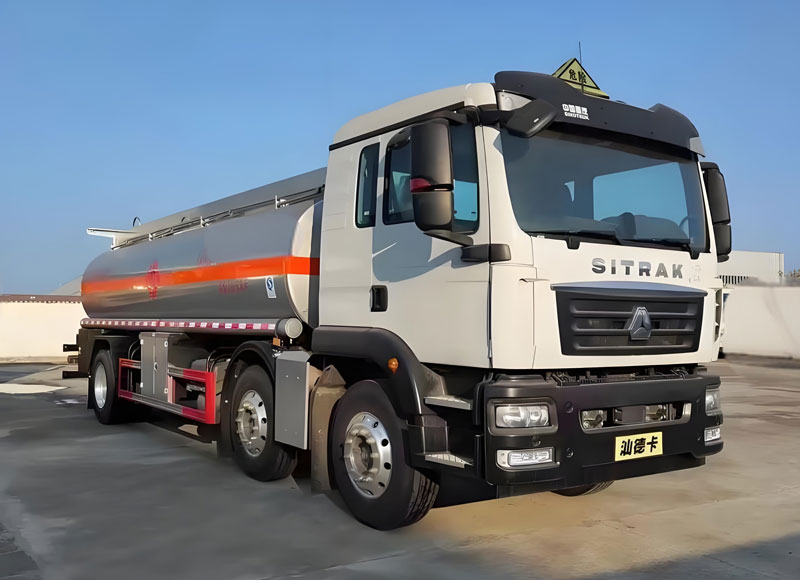

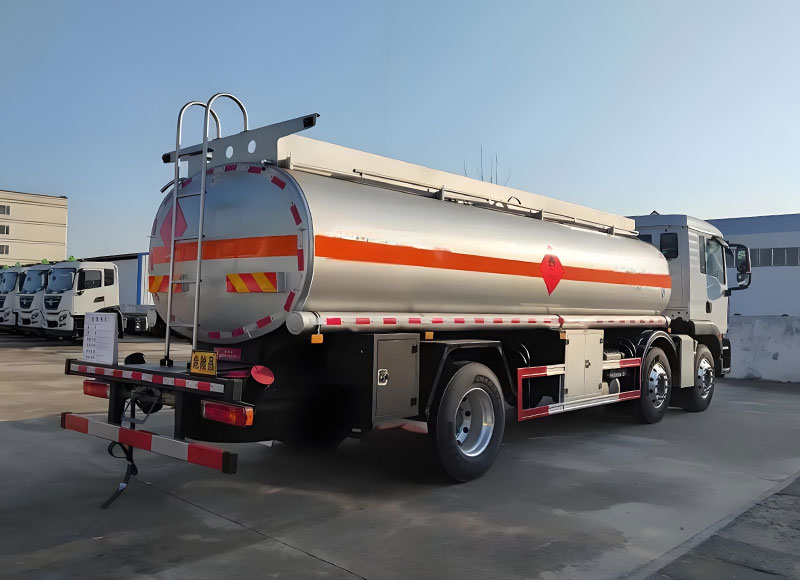

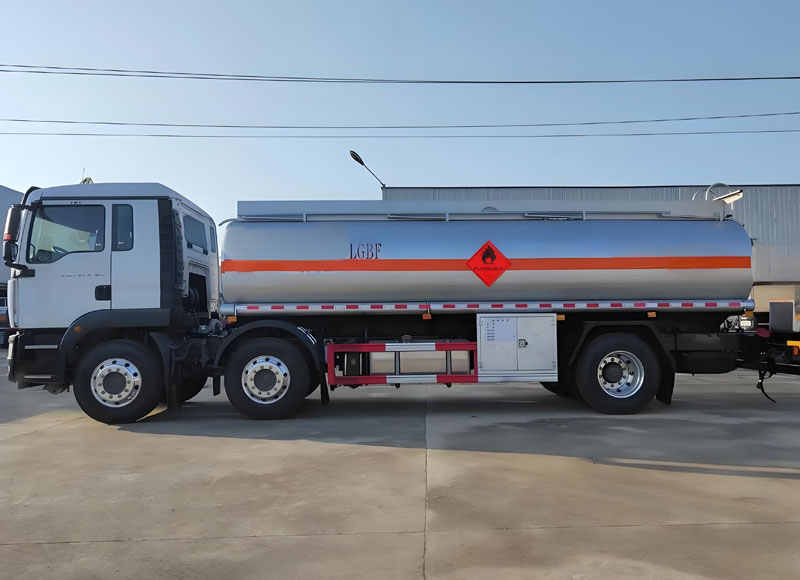

This Sinotruk fuel tanker is built on a Sitrak chassis with strong engine performance and stability, making it suitable for long-distance fuel logistics and bulk petroleum transportation.
The 24.3CBM capacity allows the fuel tanker truck to transport large volumes of fuel in a single trip, improving transportation efficiency and reducing logistics costs for fuel distribution companies.
The fuel tanker is equipped with a pump system, bottom loading structure, overflow protection, and optional flow meter to ensure controlled and safe fuel transfer during operation.
This fuel tanker truck uses high-strength aluminum alloy, which reduces vehicle weight, improves fuel efficiency, and provides strong corrosion resistance for petroleum transport environments.
This type of Sinotruk fuel tanker is commonly used by fuel logistics companies, oil distributors, and large-scale industrial fuel supply operations that require efficient bulk transport.
