1. High-flat-floor cab design with ergonomic comfort controls and spacious interior.
2. Robust powertrain delivering 290HP output paired with heavy-duty axle configurations.
3. Enhanced durability through reinforced frame, multi-layered leaf springs, and high-load tires.
4. Large-capacity aluminum fuel tank and optimized driveline ratio for extended range efficiency.
5. Integrated smart features including multi-function steering, surveillance system, and adaptive air suspension.
Chassis | |
| Brand | Dongfeng |
| Drive Type | Left hand drive/4x2 |
| Gross Vehicle Weight(kg) | 18000 |
| Curb Weight(kg) | 10635 |
| Load Weight(kg) | 7880 |
| Overall Dimension(mm) | 9200×2600×3960 |
| Van Dimension(mm) | 6800×2440×2450 |
| Tyre Qty. | 6 |
| Tyre Spec. | 275/80R22.5 18PR |
| Wheelbase（mm） | 5000 |
| Front/Rear Overhang (mm) | 1400/2800 |
| Approach/Departure Angle(°) | 16/10 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 105 |
| ABS | Included |
| Transmission | Fast ,8-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 2-3 persons |
Engine (Other Engines Optional) | |
| Brand | Cummins |
| Model | B6.7NS6B290 |
| Power(kw) | 213 |
| Horsepower(HP) | 290 |
| Emission Standard | Euro 3 |
Upper & Equipment | |
| Fuel Tank Capacity(L) | 600 (aluminum alloy) |
| Cargo Box Construction | Thickened fiberglass, high-density insulation material, stainless steel corner guards, aluminum alloy trim (reinforced with steel sealed rivets) |
| Cargo Box Framework | Skeleton structure, all-wooden box body, broken bridge thermal insulation, 8cm insulation panels, lightweight high-strength steel sub-frame |

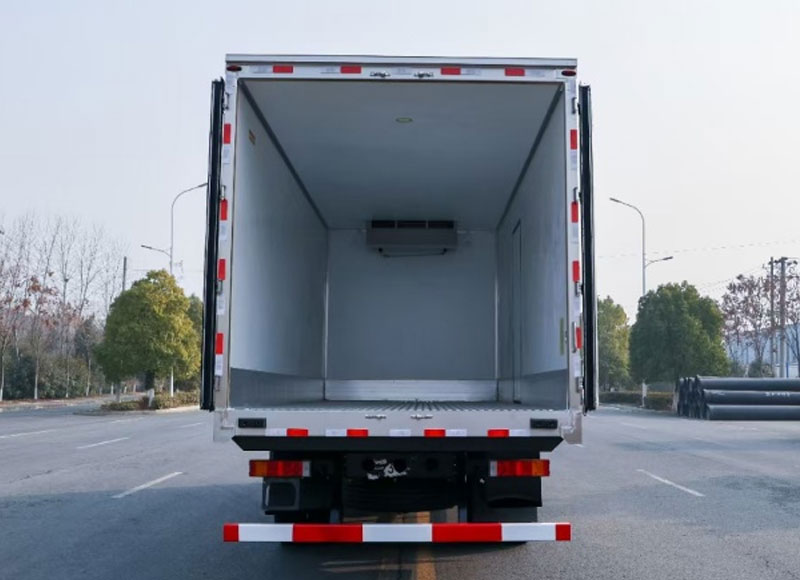

| Cargo Box Lighting | LED interior lamps, width indicator lights |
| Rear Door Frame Material | Thickened stainless steel |
| Door Seal | Black rubber seal (new 5-blade design with aluminum alloy edge strip) |
| Standard Configuration | Front drainage hole inside the cargo box; upper door handle; bolts, U-bolts, rubber-wire cushion pads, guard mesh, mudguards, 3M reflective adhesive strips |
| Refrigeration Unit | Optional globally recognized brands: Kerry, Hanyang, Thermo King, Carrier, etc. |
| Other Services | Customized LOGO design as per customer needs! |
