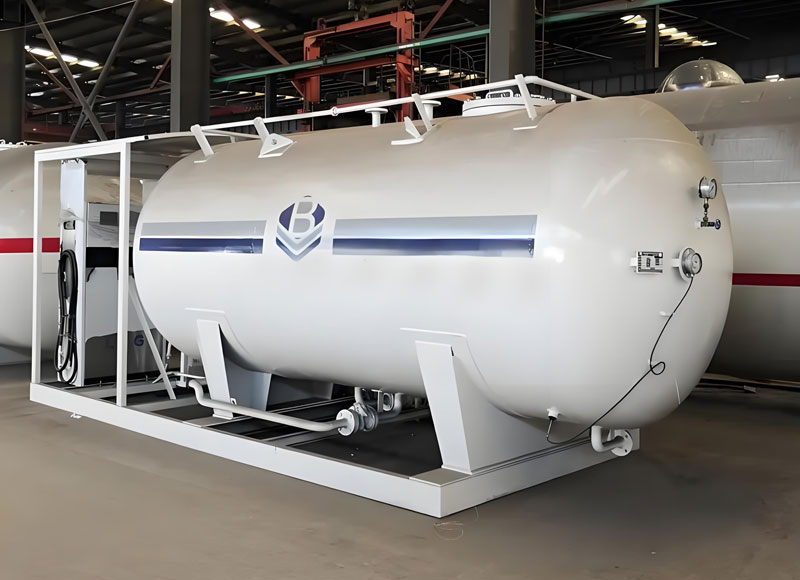

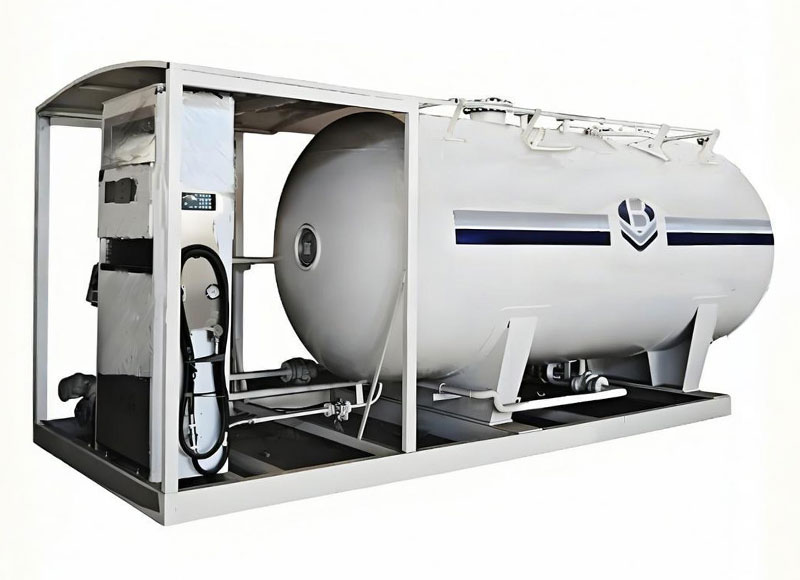

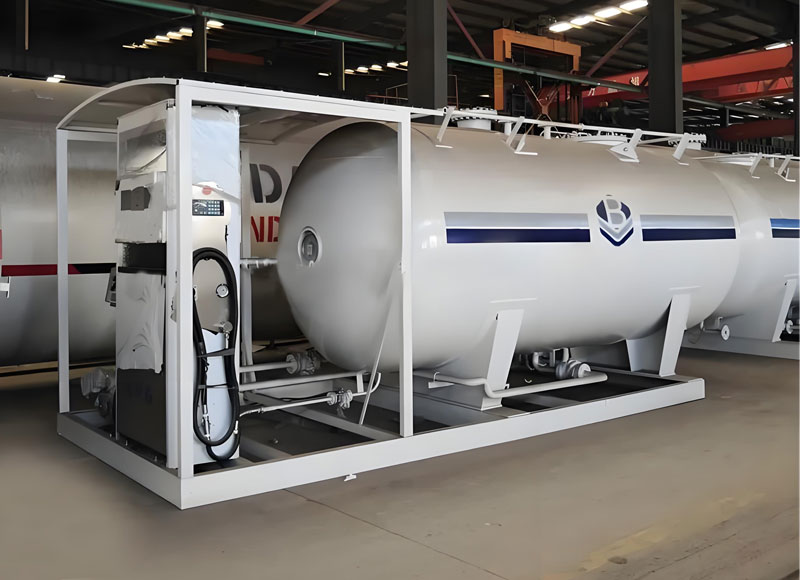

1. The LPG skid station adopts explosion-proof motors and triple safety valve assemblies, integrating gas leakage alarms to achieve intrinsic safety protection.
2. Dual gas pumps with high-precision electronic scales form a precise metering system, synchronized with liquid level indicators for closed-loop monitoring of delivery processes.
3. Submerged safety valves collaborate with tank spray systems and shock-absorbing hoses to reinforce modular structural integrity, ensuring damage resistance in extreme conditions.
4. Standardized flange interfaces paired with cylindrical filters and dual-display instrument clusters streamline quick-installation workflows.
Specification | |
| Over Dimension(mm) | 7590×2124×2714 |
| Tank Weight(kg) | 5970 |
| Filling Weight(kg) | 12500 |
| Tank Capacity | 25CMB/25m³/25000 liter/25cubic meter |
| Tank Material | Q345R carbon steel |
| Tank Compartment Qty. | Single-chamber |
| Tank Thickness(mm) | 12 |
| Designed Pressure(MPa) | 1.71 |
| Filling Ratio(ton/cbm) | 0.42 |
| Working Temperature(℃) | <50 |
| Tank Filling Medium | Liquefied petroleum gas (propane) |
| Corrosion Allowance(mm) | 1 |
| Filling Ratio(ton/cbm) | 0.95 |
| Unit Volumetric Filling Capacity (kg/m³) | 420 |
| Head Thickness of LPG Tanks(mm) | 14 |
| Standard configuration | Two liquefied gas pumps with explosion-proof motors; two electronic scales; explosion-proof magnetic starter; explosion-proof lighting with explosion-proof switches; gas leakage alarm; float-type level gauge with percentage dial; recessed safety valve; pressure gauge; thermometer; safety return valve; check valve; shut-off valve; cylindrical filter; anti-vibration hose; inflation gun hose; sunshade canopy for operation area; tank spray device; flanged unloading port. |
| Other Services | Customized LOGO design as per customer needs! |
