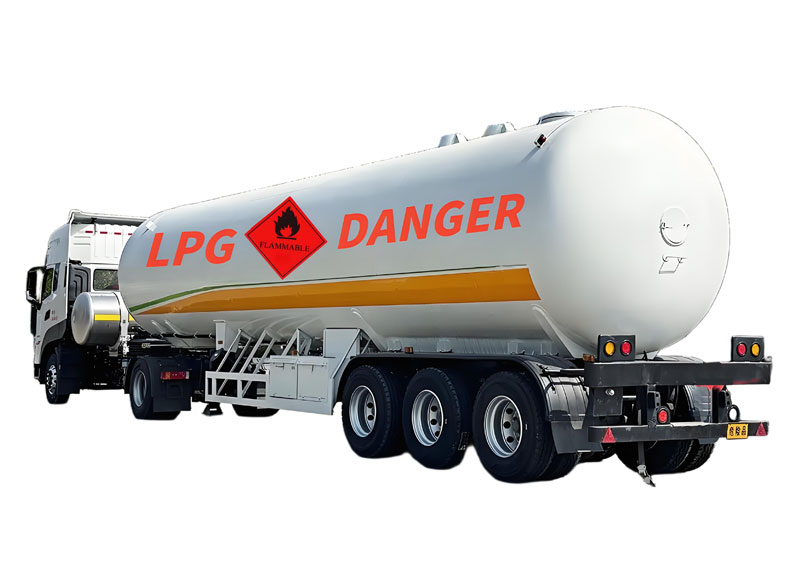

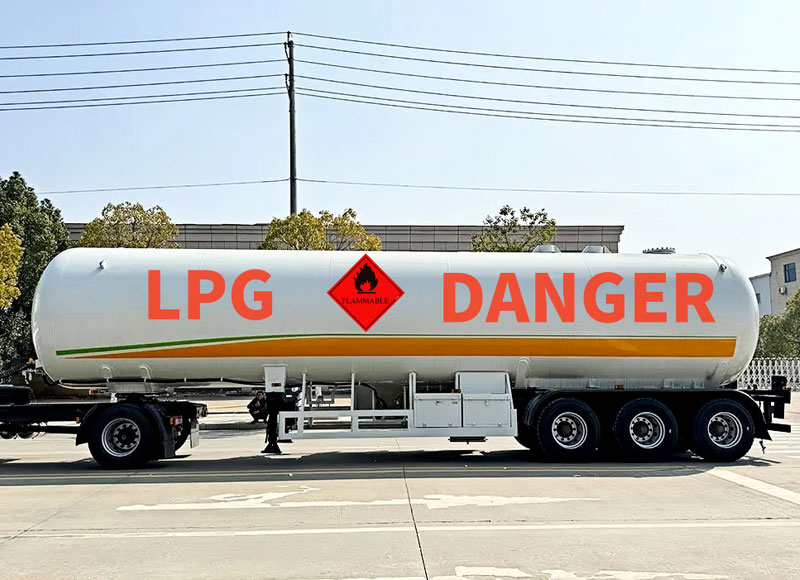

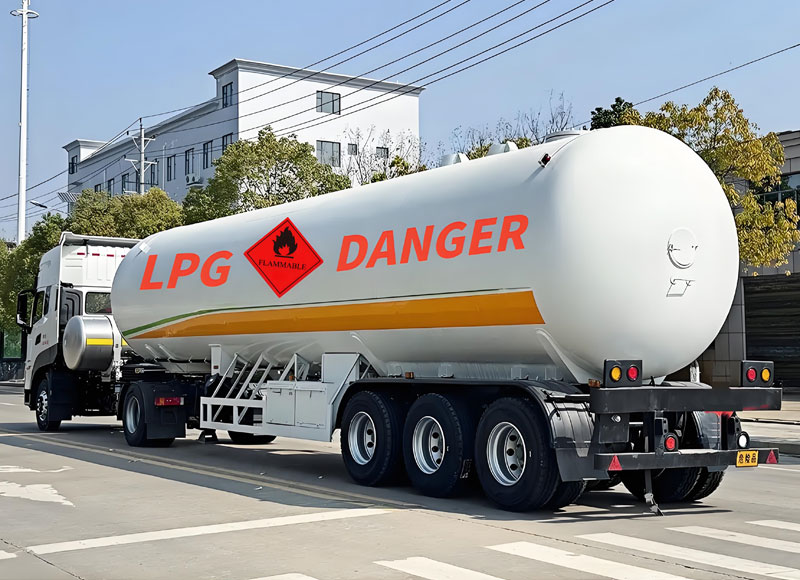

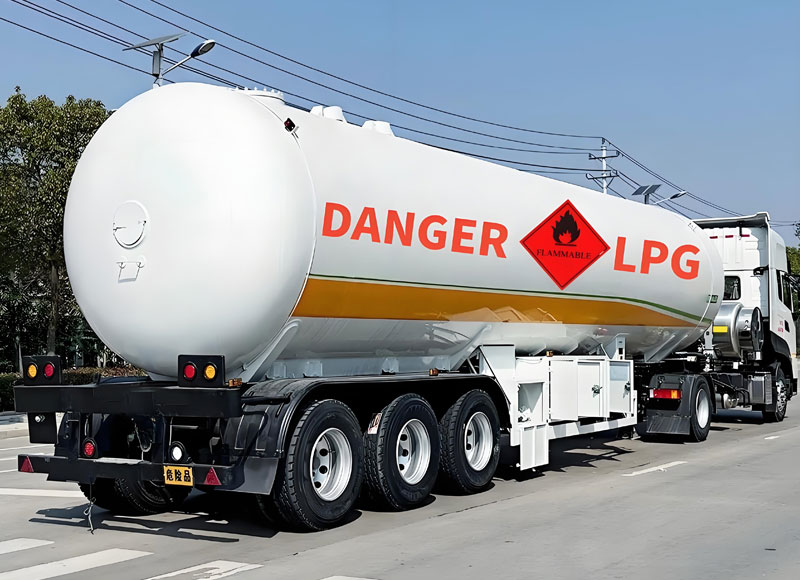

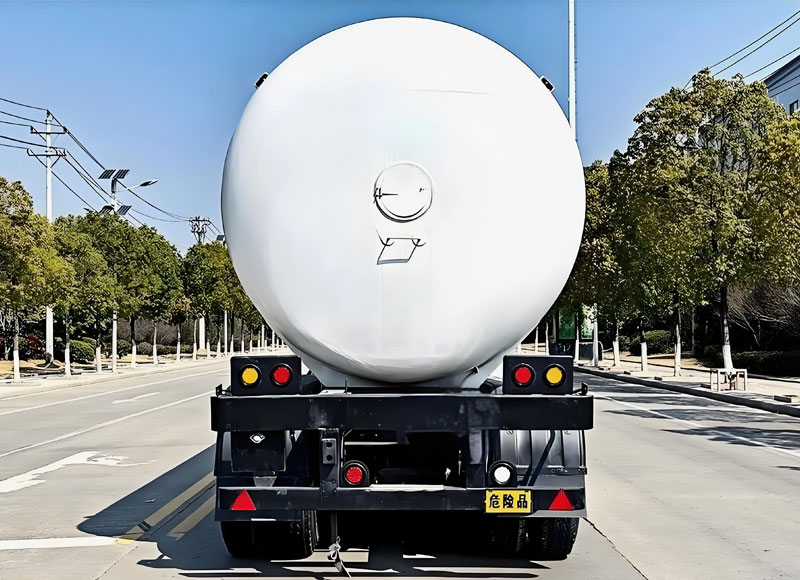

1. Utilizes a bilateral loading/unloading + dual valve box structure; single liquid outlet with dual valves in series to reduce leakage risks; safety valve and emergency shut-off valve linkage ensures dual protection through overpressure release and emergency shutoff.
2. 13-ton Fuhua axle + leaf spring suspension, paired with 12.00R22.5 tubeless tires for stable load-bearing; iron fenders and anti-static tape guard against mechanical damage and electrostatic sparks.
3. Q345R carbon steel tank body integrates pressure gauge and thermometer for real-time monitoring; LED lights enhance nighttime warnings; fire extinguisher + anti-static grounding strip create dual safeguards against fire and static hazards.
4. Dual tool boxes separate maintenance tools and emergency supplies; Fuhua outriggers, 90# traction pins, compatible with mainstream truck heads; support legs improve stability and safety during hitching/unhitching operations.
Specification | |
| Over Dimension(mm) | 11324×2500×3730 |
| Gross Vehicle Weight(kg) | 30425 |
| Curb Weight(kg) | 13415 |
| Loading Weight(kg) | 17010 |
| Tyre Qty. | 12 |
| Tyre Spec. | 12R22.5 12PR |
| Wheelbase（mm） | 6720+1320 |
| Tank Capacity | 40CMB/40m³/40000 liter/40cubic meter |
| Tank Dimension(mm) | 2200×12×11044 |
| Tank Material | Q345R carbon steel |
| Tank Compartment Qty. | Single-chamber |
| Tank Thickness(mm) | 12 |
| Designed Pressure(MPa) | 1.61 |
| Filling Ratio(ton/cbm) | 0.42 |
| Working Temperature(℃) | <50 |
| Tank Filling Medium | LPG |
| Corrosion Allowance(mm) | 1 |
| Standard configuration | Single liquid outlet, bilateral loading/unloading, dual valve boxes, dual tool boxes, safety valve, thermometer, pressure gauge, emergency shut-off valve, 13-ton Fuhua axle, leaf springs, iron wheel rims, iron fenders, Fuhua support legs with 90 kingpin, fire extinguisher, anti-static grounding tape, LED lights. |
| Other Services | Customized LOGO design as per customer needs! |
