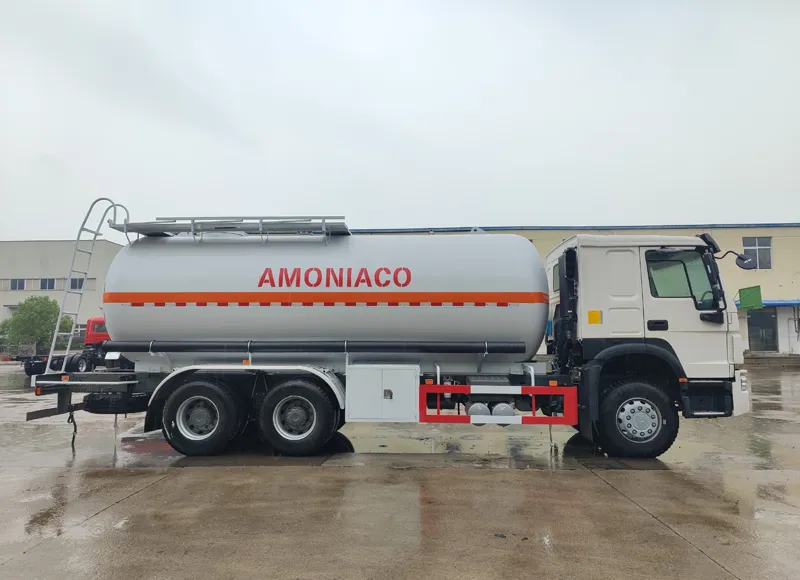

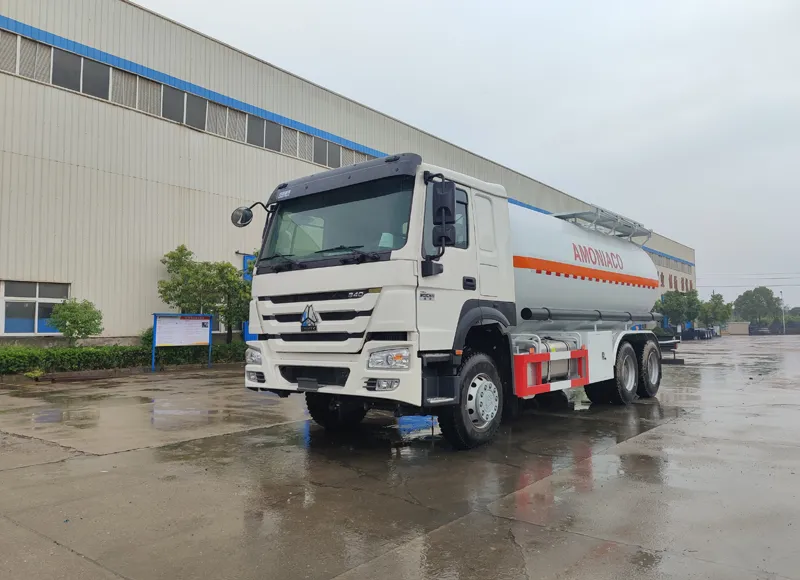

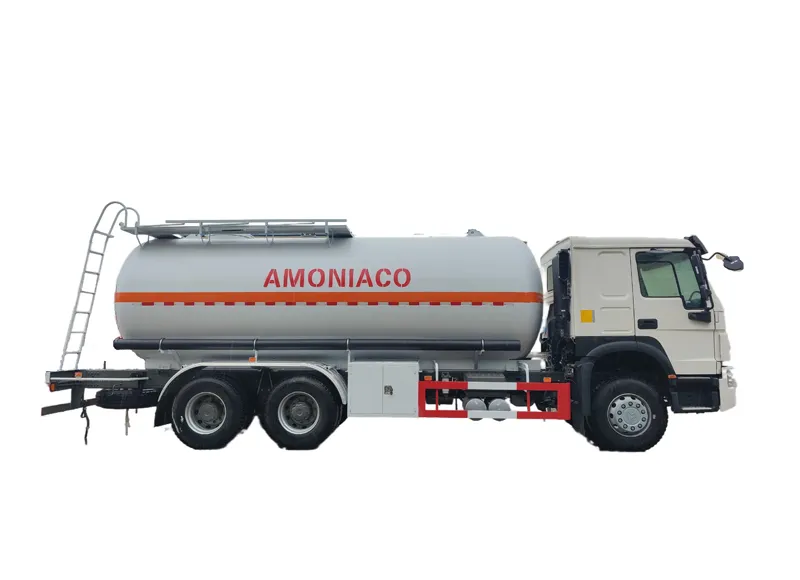

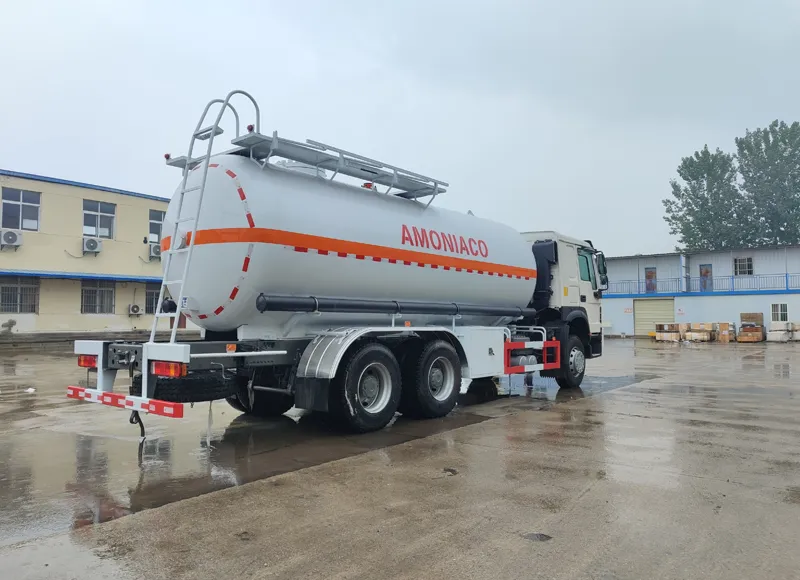

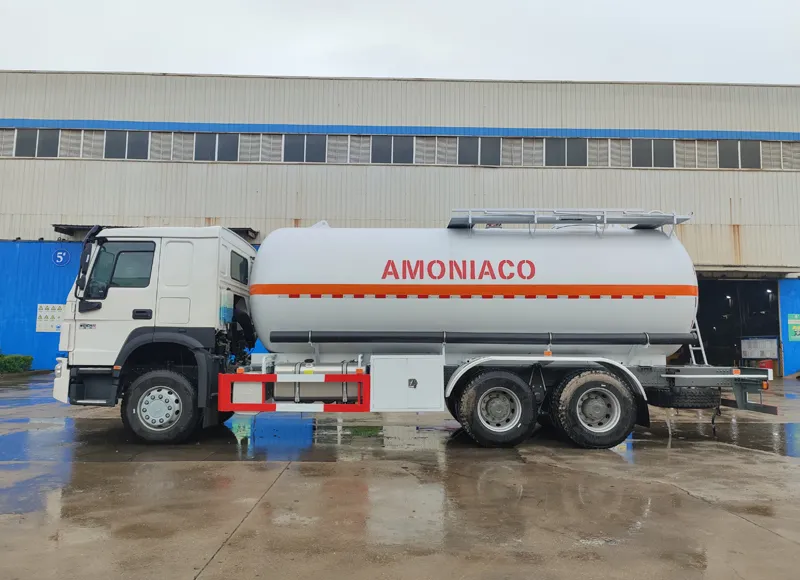

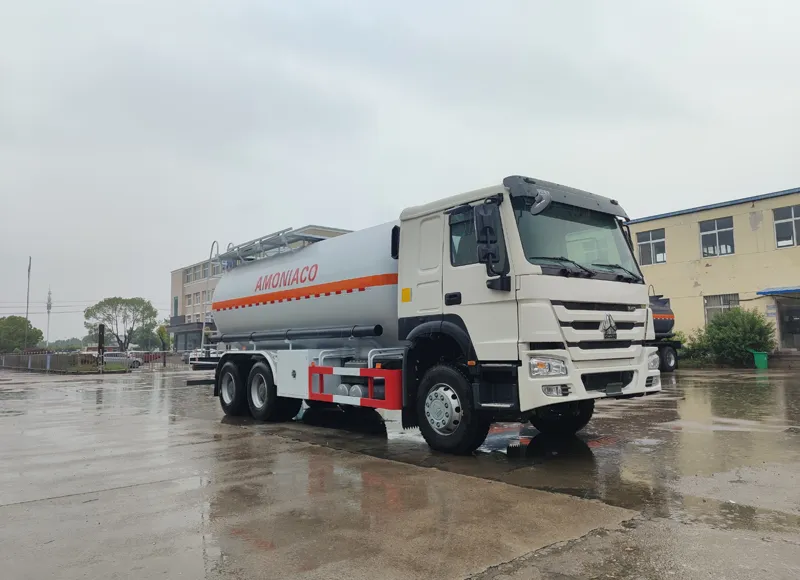

1.The truck brand is HOWO, 6×4 drive, heavy-duty chassis designed for hazardous chemical transport.
2.Tank material options include Q345R, Q370R, and 16MnDR,suitable for corrosion-resistant applications.
3.Loading capacity is 25 tons / 20 cbm, optimized for liquid ammonia with pressure rating up to 2.17 MPa.

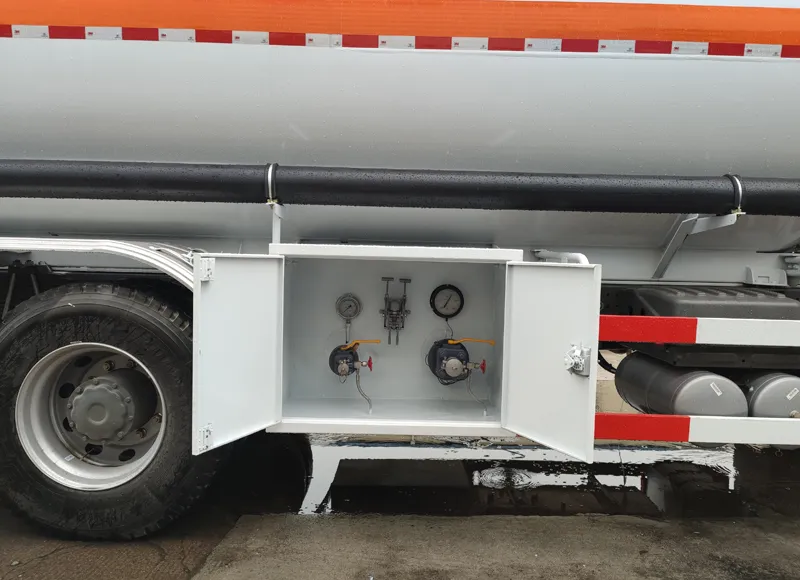

4.Equipped with Emergency Cut-off Valve,Safety Valve, Ball Valve, Magnetic Level Gauge, Pressure Gauge, Temperature Gauge, and dual-side valve control boxes for safety and easy maintenance.
5.The chassis features 12R22.5 all-steel radial tires, 400L fuel tank, and ABS braking system, to ensure stability, safety, and efficiency.
| Chassis | |
| Brand | HOWO |
| Drive Type | 6x4, Left hand drive/ Right hand drive |
| Gross Vehicle Weight(kg) | 25000 |
| Curb Weight(kg) | 9800 |
| Loading Weight(kg) | 15505 |
| Overall Dimension(mm) | 10000×2550×3450 |
| Tyre Qty. | 10+1 |
| Tyre Spec. | 12R22.5 |
| Wheelbase（mm） | 4600+1350 |
| Front/Rear Overhang (mm) | 1332/2118 |
| Approach/Departure angle(°) | 19/ (27/65) |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 80 |
| ABS | Yes |
| Transmission | 10 forward and 2 reverse |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
| Engine(Other Engines Optional) | |
| Brand | Weichai |
| Model | WP10.340E22 |
| Power(kw) | 251 |
| Horsepower(HP) | 340 |
| Upper Equipment | |
| Tank Capacity(cbm) | 20 |
| Tank Dimension(mm) | 6860×2076 |
| Tank Material | Q345 carbon steel |
| Working Pressure(MPa) | ≤2.17 |
| Designed Pressure(MPa) | 2.17 |
| Hydrostatic Test Pressure (MPa) | 2.821 |
| Working Temperature(℃) | -20~+50 |
| Corrosion Allowance(mm) | 2 |
| Filling medium | Liquid Ammonia |
| Main Accessories | Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, 2 Valve Boxes in both sides. |
| Other Services | Customized LOGO design as per customer needs! |
